UV Accelerated Weathering Aging Chamber Testing Equipment
Guangdong Yuanyao Test Equipment Co., Ltd.- Type:Material Testing Machine
- Accuracy Grade:1
- Load Way:Electronic Load
- Loading Method:Dynamic Load
- Display:Digital
- Control:Computer Control
Base Info
- Model NO.:UV
- Weight:500-1000Kg
- Power Source:AC220V
- Oil Cylinder Position:Under
- Transport Package:Good Package
- Specification:126L
- Trademark:Yuanyao
- Origin:China
- HS Code:8419899090
- Production Capacity:100000
Description
YUV-080Test area size W×H×D(cm) 40×50×40 Exterior chamber size W×H×D(cm) Depends on the chamber design performance Temp.range RT+10ºC~70ºC Humi.range 75%RH~95%RH Rain time 1~99999mins,adjustable Rain period 1~240mins,interval adjustable Light model UV-A(295~360nm),UV-B(280~315nm)optional UVA/UVB light power 40W(lifetime 1800h) Irradiance 1.0W/m2 adjustable Standard specimen size 75×150mm or 75×300mm Control accuracy ±0.1ºC,±1%RH System Temp.controller Imported LED digital display PID+SSR microcomputer integrator Sensor Perkin resistance PT100Ω/MV Time controller Imported programmable time controller Heating system Nichrome heater Condensation humidification system Stainless steel humidifier Blackboard temp Metal blackboard thermometer Water supply system Auto water filling system Circulating system Quiet motor,multi-vane centrifugal fan Material Exterior chamber material Stainless steel Inner chamber material SUS#304 stainless steel Sample holder material SUS#304 stainless steel Standard configuration Standard sample holder 24pcs,light tubes 8pcs(UVA/UVB) Safety Protection Leakage,short circuit,over temp.,water shortage,over current protection Power supply AC 1ψ220V 60/50Hz Operation condition 5ºC~+30ºC≤85%RH Customization service Non-standard or special requirements are all welcome

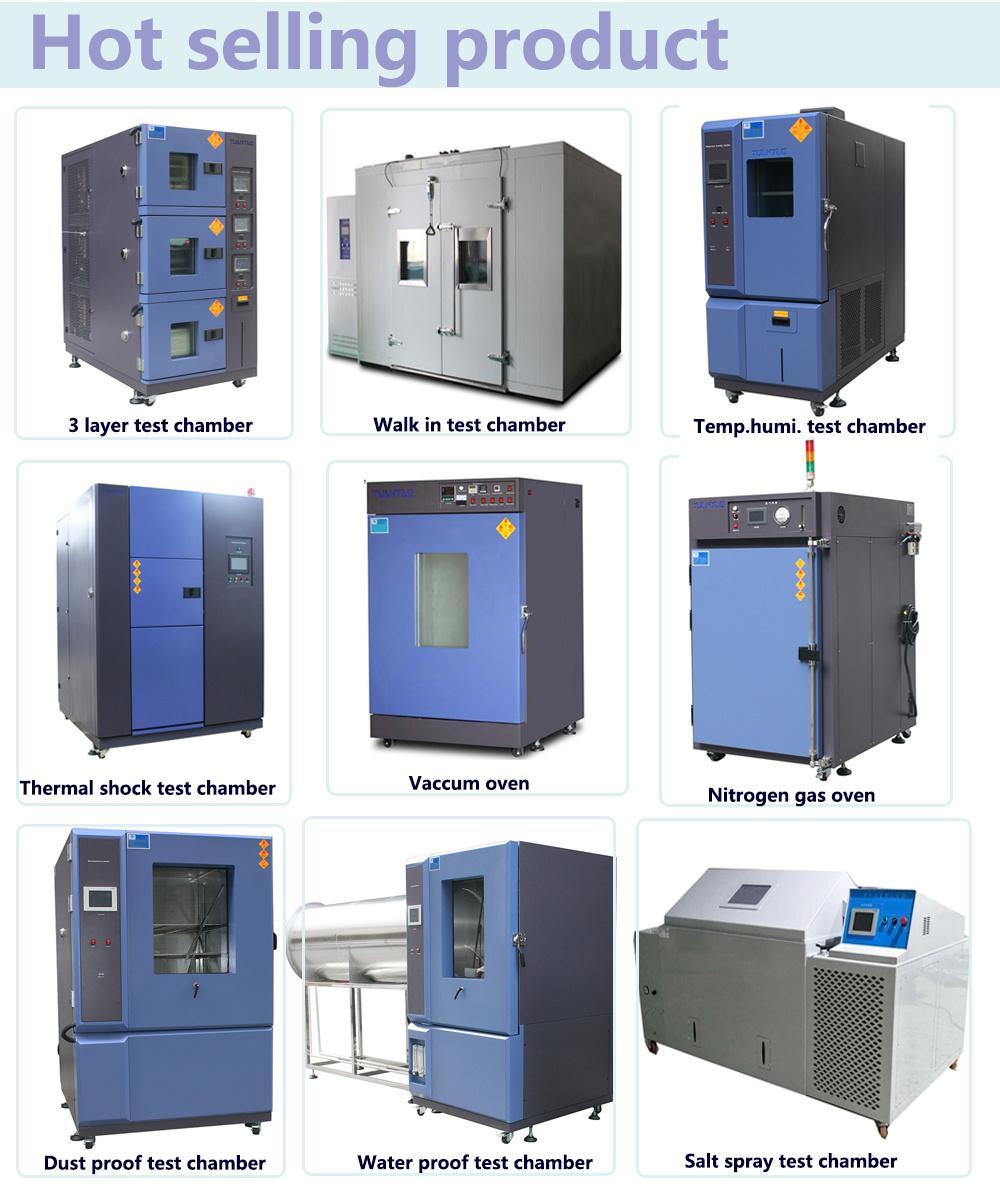

Our hot selling products:
Our company:
After-sales service
1. Free parts for 12 months.
2. One year warranty, during in this year, we provide free maintenance. Beyong the warranty, we provide accessories with low cost, lifetime maintenance service is available.
If you want to know more and tell us what is your idea technical spec, please let me know, thanks.
