Laboratory Microcomputer Melting Point Apparatus

Hangzhou West Tune Trading Co., Limited
  • Certification:CE
  • Warranty:1 Year
  • Style:Desktop
  • Application:School, Lab
  • Measuring Range:Room Temperature ~300 °c
  • Method of Measurement:Automatic

Base Info

  • Model NO.:WRS-2
  • The Minimum Value:0.1ºC
  • Repeatability of Indication:When The Heating Rate Is 1.0ºC,Min,0.3ºC
  • Linear Heating Rate Error:±10%
  • Processing Power:1
  • Capillary Size:Outside Diameterφ1.4mm
  • Inside Diameter:φ1.0mm
  • Length:90mm
  • The Sample Height:3mm
  • Transport Package:Standard Export Package
  • Specification:automatic
  • Trademark:WEST TUNE
  • Origin:China
  • HS Code:9031809090
  • Production Capacity:1000units,Year

Description

Basic Info.

Model NO. WRS-2 The Minimum Value 0.1ºC Repeatability of Indication When The Heating Rate Is 1.0ºC/Min,0.3ºC Linear Heating Rate Error ±10% Processing Power 1 Capillary Size Outside Diameterφ1.4mm Inside Diameter φ1.0mm Length 90mm The Sample Height 3mm Transport Package Standard Export Package Specification automatic Trademark WEST TUNE Origin China HS Code 9031809090 Production Capacity 1000units/Year

Product Description

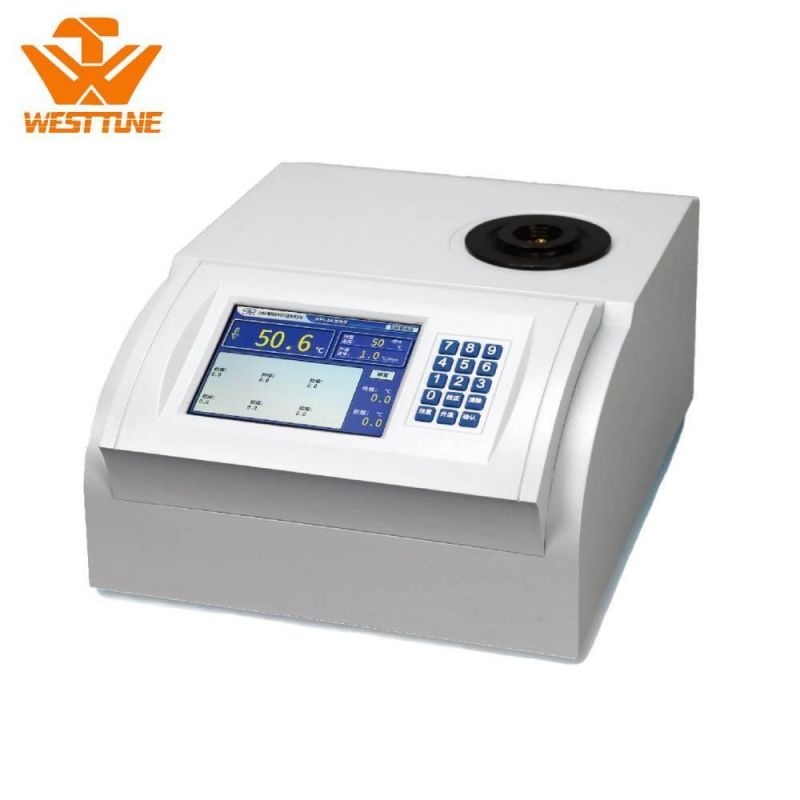

WRS-2 Microcomputer Melting Point Meter

In according with the definition of physical chemistry, the melting point of substance means the temperature at which the substance changes from solid state to liquid state. In the field of organic chemistry, the measurement of melting point is a basic means of organic chemistry, the measurement of melting point is a basic means of recognizing the nature of substance, and is also one of the important place in the chemical industry and medicine researches. Also, the melting-point meter is a kind of necessary instrument in the production of medicines, perfumes, dyestuff and other organic crystal substances.
It adopts photoelectric automatic detection, color LCD display, digital keyboard to input different types of instruments, which can be equipped with one sample or three capillary tubes for measurement, and automatically obtain the average melting point, with automatic display of initial melting and final melting, and automatic recording of melting curve.
The temperature system uses platinum resistance with high linearity as the detection element, and adopts PID adjustment technology to improve the accuracy and reliability of the melting point.
By establishing a communication interface, working parameters can be printed or saved, and the instrument uses the capillary specified in the Pharmacopoeia as the sample tube.

Laboratory Microcomputer Melting Point Apparatus
FeaturesMelting-point measurement range: room temperature ~ 300° C
Minimum digital display: 0.1° C
Linear heating-up rate: 0.2, 0.5, 1.0,1.5, 2.0 3.0, 4.0, 5.0° C/min
Accuracy: < 200° C : ±0.5°C;  200-300° C: ±0.8°C
Weight (Gross): 9 kg
Overall Dimensions: 490mm ´ 430mm ´ 320mm

Specifications

Product modelWRS-2
Measuring rangeroom temperature ~ 300 ºC
Method of measurementautomatic
The minimum value0.1ºC
Heating rate0.2ºC/min,0.5ºC/min,1ºC/min,1.5ºC/min,2ºC/min,3ºC/min,4ºC/min,5ºC/min
Error value≤200ºC:±0.4ºC;>200ºC :±0.7ºC
Repeatability of indicationWhen the heating rate is 1.0°gmin, it is 0.3°c
Linear warming error±10%
Processing power1 root
Capillary sizeoutside diameterφ1.4mm,inside diameter φ1.0mm,length 90mm
The sample height3mm
Display mode5.6-inch color LCD screen
Calibration modeMulti-points calibration
Communication interfaceRS232/USB
Printer Model/
The power supply220V±22V,50Hz±1HZ
Size of instrument360mmx290mmx170mm
lnstrument net weight9kg
