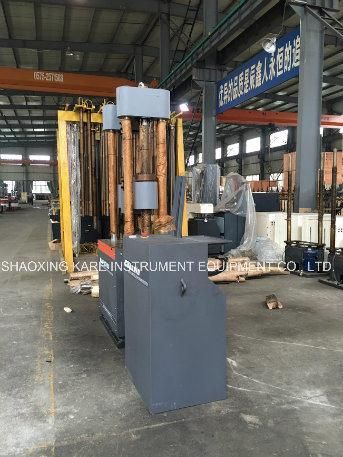

Computerized Hydraulic Servo Tensile Testing Machine (WAW-300B)

SHAOXING KARE INSTRUMENT EQUIPMENT CO., LTD.
  • Type：Universal Testing Machine
  • Maxcapacity：300kn
  • Accuracy Grade：1
  • Display：Computer
  • Control：Computer Control
  • Weight：1000-2000Kg

Base Info

  • Model NO.：WAW-300B
  • Power Source：AC380V
  • Oil Cylinder Position：Under
  • Column Qty：2
  • Lead Screw Qty：2
  • Transport Package：Wooden Case
  • Origin：Zhejiang
  • HS Code：9024101000
  • Production Capacity：20 Sets,Month

Description

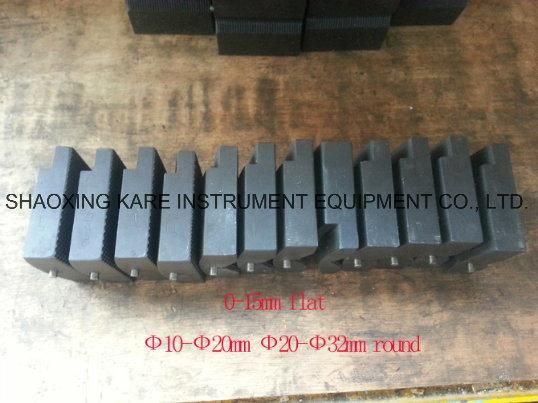

WAW-300Max. testing force300KNMeasuring range2%~100%F.SRelative error to force value (%)±1Measuring isodromic ratio control0.1-100%F.S./min 0.2-100%F.S./min (precision type)Deformation isodromic ratio control0.1-100% F.S./minDisplacement isodromic ratio control0.5-50mm/minSpeed precision±5% set pointMax. tensile test space600mmMax. distance between upper and lower presser disks600mmFlat sample holding thickness0-20mmDiameter of round specimen10-32mmPiston stroke200mmUpper and lower platen size (mm)Φ235Bending test pressed rolling distance30~460mmTensile and compression space between two columns435mmMax. platen rise speed≥70mm/minMax. moving beam speed≥300mm/minMotor power2.1KWMain body dimension (L×W×H) (mm)740×460×1965Control & measurement cabinet dimension(L×W×H) (mm)1080×650×1200Weight1700KgNoise≤75dB
