• Model NO.：HTPV-17
• Loading Method：Static Load
• Display：Touch Screen
• Control：Pid Control
• Weight：100-500Kg
• Power Source：AC220V
• Product Name：High Low Temperature Environment Testing Chamber
• Materials：Stainless Steel SUS 304
• Certificate：ISO and SGS
• Standard：IEC61215
• Applications：PV Module
• Function：It′s Use PV Module Simulate Environment Testing
• Packages：Export Wooden Case
• Delivery：30 Work Days
• Power：380V 60Hz
• Temperature Range：-40~85
• Transport Package：Export Wooden Case
• Specification：according to IEC61215 standard
• Trademark：HOTOTECH
• Origin：Dongguan China
• HS Code：9013809000
• Production Capacity：100 Sets Per Month

Basic Info.

Model NO. HTPV-17 Loading Method Static Load Display Touch Screen Control Pid Control Weight 100-500Kg Power Source AC220V Product Name High Low Temperature Environment Testing Chamber Materials Stainless Steel SUS 304 Certificate ISO and SGS Standard IEC61215 Applications PV Module Function It′s Use PV Module Simulate Environment Testing Packages Export Wooden Case Delivery 30 Work Days Power 380V 60Hz Temperature Range -40~85 Transport Package Export Wooden Case Specification according to IEC61215 standard Trademark HOTOTECH Origin Dongguan China HS Code 9013809000 Production Capacity 100 Sets Per Month

Product Description

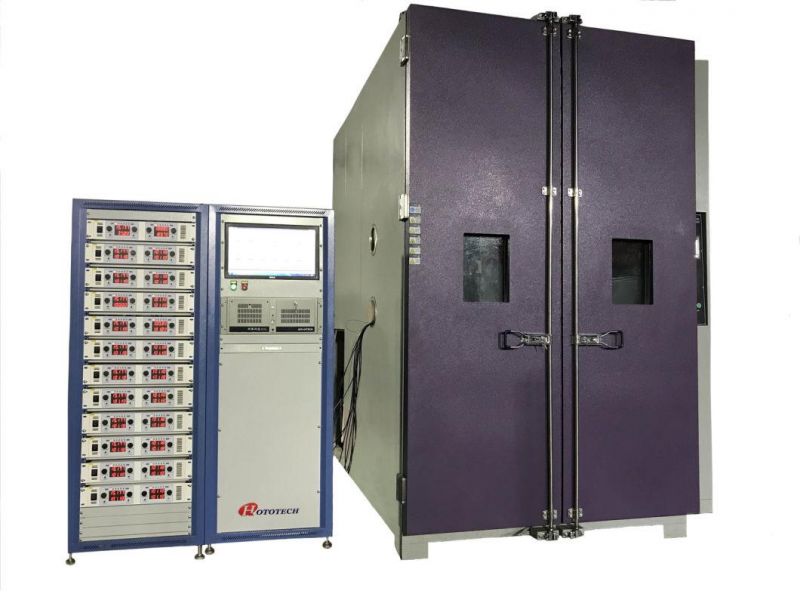

High low temperature Environment Testing Chamber/ Thermal cycle /humidity freeze testing chamber/testing machine for pv module

purpose

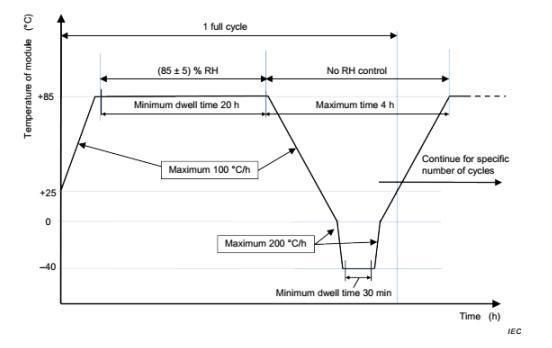

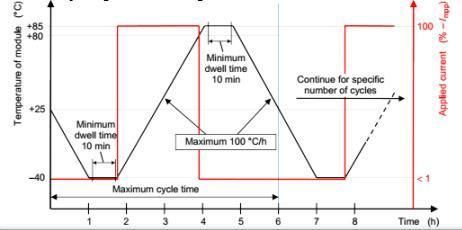

To determine the ability of the module to withstand thermal mismatch , fatigue and other stresses caused by repeated changes of temperature and to determine the ability of the module to withstand the effects of high temperature and humidity followed by sub-zero temperatures

standard
It's satisfy IEC61215 and UL1703 standard


feature
1.Temperature :-40ºC-85ºC
2.Humidity accurate:±5%
3.Testing chamber is double door
4.Software control :reserarch and development by HOTOTECH , temperature and humidity can record, support histroy information check and display history data curve

Product image show
