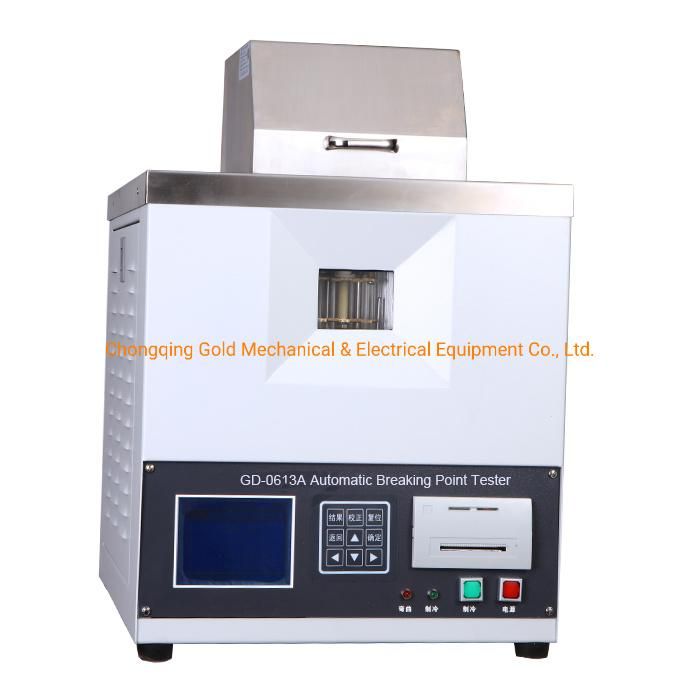

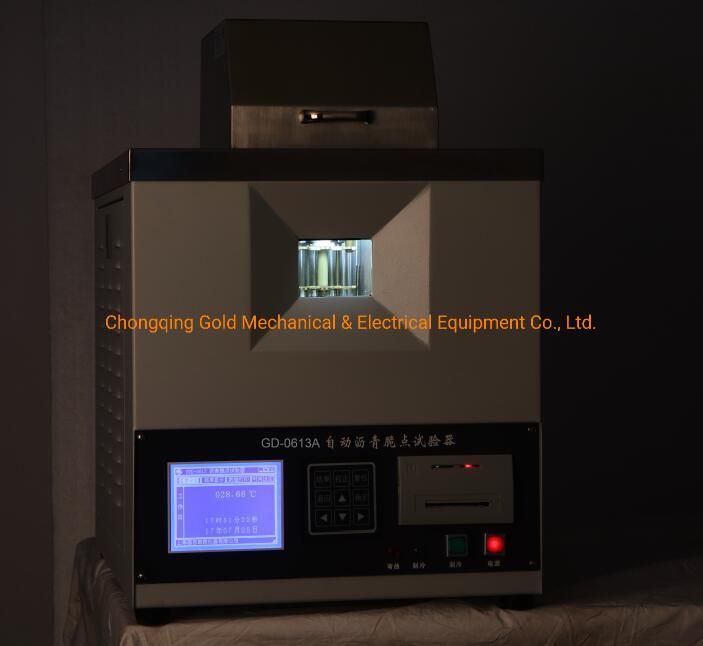

• Model NO.：GD-0613A
• Loading Method：Dynamic Load
• Display：Digital
• Control：Computer Control
• Weight：0-100Kg
• Power Source：AC220V
• Oil Cylinder Position：Under
• Transport Package：Wooden Case
• Specification：620mm*460mm*355mm
• Trademark：GOLD
• Origin：China
• Production Capacity：200units,Month

1. Power supply:      AC(220±10%)V,50Hz2. Refrigeration mode:     Low temperature circulatory bath3. Cooling rate:     (1±0.5)ºC/min4. Temperature measuring range:     -30ºC~25ºC5. Temperature measuring error:     ±0.5ºC6. Steel slice:  41mm×20mm×0.15mm7. Test samples:   It can determine 3 samples at the same time8. Ambient temperature:    Room temp. ~+30ºC9. Relative humidity:     ≤85%10.Power consumption:    450W(breaking point tester)+ 1600W(low temperature circulatory bath)

11.Overall dimension:

 500mm×400mm×570mm(breaking point tester)





• Workshop

*Over 10 years trading experience of Lab instruments
*50 years experience in R&D and manufacturing Cast GOLD Brand
*Passed ISO9001 international quality system certification
*Mainly develop and produces analyzing instruments for petroleum Products and Asphalt
analyzing equipment for Highway Engineering.
*our company's productions have become highly intelligentized and widely cover.With strong
technical force and strong development, new products have been launched continuously.

At present, there are more than 150 employees, of whom more than 70% are technical personnel with a college

degree or above. With strong technical force and strong development, new products have been launched continuously.


Exhibition



We have developed sales channels in many countries such as the UAE, Saudi Arabia, Iran, Malaysia, Thailand, Pakistan,

India, Germany, Belgium, the USA, Mexico, Kenya, Nigeria, South Africa, and other countries worldwide. And we have

gained strong advantage and a high reputation in the international market.

After several years' development, our products have become highly intelligent and wide coverage.
And our company has become one of the leading manufacturers of petroleum testing instrument and electrical testing

instrument.

Packing

Goods are packed in veneer case, which is firm and safe for overseas shipment.

Please feel FREE to contact us if you have any needs. And welcome to visit our OFFICIAL WEBSITE at:

http://chinainstrument.en.made-in-china.com
