Hot Sale Manual Turret Micro Vickers Durometer Hardness Tester HV-10
DongGuan HongTuo Instruments Co., Ltd.- Warranty：1 year
- Type：Vickers Hardness Tester
- Testing Before Delivery：Yes
- After-sale Customer Service：Yes
- Vickers hardness scale：HV0.3,HV0.5,HV1.0,HV3.0 ,HV
- Test force(Kgf)：0.3,0.5 ,1.0,3.0,5.0,10.0
Base Info
- Model NO.：HV-10
- Load control：Automatic (load,hold,unload)
- Test force retention time (s)：1~99
- Transport Package：Standard Exporting Wooden Package
- Trademark：DahoMeter
- Origin：Dongguan, China
- Production Capacity：300 Sets,Month
Description
Basic Info.
Model NO. HV-10 Load control Automatic (load/hold/unload) Test force retention time (s) 1~99 Transport Package Standard Exporting Wooden Package Trademark DahoMeter Origin Dongguan, China Production Capacity 300 Sets/MonthProduct Description

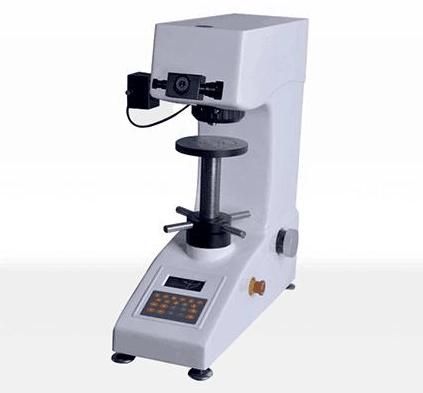

Hot Sale Manual Turret Micro Vickers Durometer Hardness Tester HV-10
The manual turret type Vickers tester can meet the basic Vickers hardness test requirements, the upgraded control system can provide more measurement data, and the control is more comprehensive and accurate.
Main Functions and Features:
1. The optical system designed by senior optical engineers not only has clear images, but also can be used as a simple microscope, with adjustable brightness, comfortable vision, and not easy to fatigue after long-term operation;
2. The industrial display screen can directly display hardness value, conversion hardness, test method, test force, holding time, number of measurements, and test process is intuitive and clear;
3. The cast aluminum shell is formed at one time, the structure is stable and does not deform, the paint grade is high, the scratch resistance is strong, and it is still bright as new after years of use;
4. Our company has the ability of self-developed design, production and processing, and can provide parts replacement and maintenance upgrade services for life;
Main Use and Application Scope:
1. Steel, non-ferrous metals, metal foil, cemented carbide, metal sheet, microstructure, carbonization;
2. Carburizing, nitriding and decarburizing layer, surface hardening layer, electroplating layer, coating, heat treatment;
3. Glass, wafers, ceramic materials;
Technical Parameter:
| Item | Specification |
| Vickers hardness scale | HV0.3,HV0.5,HV1.0,HV3.0 ,HV5.0,HV10.0 |
| Display | The automatic reading menu displays the 5-digit hardness value; 4-digit diagonal length (D1, D2) test force, holding time, test times, return |
| Test force(Kgf) | 0.3,0.5 ,1.0,3.0,5.0,10.0 |
| Load control | Automatic (load/hold/unload) |
| Test force retention time (s) | 1~99 |
| Optical system | Objective lens: 10× 20×; Eyepiece: 10× Total magnification: 100× 200× Measuring range: 800μm 400μm Resolution: 1μm 0.5μm |
| Hardness measurement range | (5-3000)HV |
| XY test bench (optional) | Size (mm): 100×100 Stroke range (mm): 25×25 Minimum reading (mm): 0.01 |
| Maximum height of specimen (mm) | 165 |
| Maximum width of test piece (mm) | 130 (The distance from the center line of the indenter to the wall of the machine) |
| Data output | Reserved built-in micro printer interface, (RS232 serial interface), optional installation |
| Test stamdard | GB/T4340.2 national standard (GB/T4340.2 Chinese Standard), JJG151Verification Regulations ( JJG151 Inspection Rule ) |
| Power supply | AC220V/50HZ |
| Dimension(mm) | 585×200×630 |
| Weight(kg) | 42 |
Standard Configuration
| Main host | 1 set |
| Weight | 3 pcs |
| Large and medium "V" type test bench | 1 each |
| Level adjustment screw | 4 pcs |
| power cable | 1 pcs |
| 10X micrometer eyepiece | 1 pcs |
| Vickers hardness block | 2 pcs |
| Spare fuse 2A | 2 pcs |
| Product certification | 1 pcs |
| Instruction manual | 1 pcs |
Remark:Can choose hardness tester measurement software to eliminate human error, computer operation, improve efficiency, and more accuracy.
