SYD-8019A Existent Gum Tester of aviation gasoline and motor gasoline
Shanghai Changji Geological Instrument Co., Ltd.- Application：aviation gasoline and motor gasoline
- Total Power：3500W
- Detection：Existent gum content
- Standard：ASTM D381, GB,T 8019
- Transport Package：by Carton or by Wooden Case
- Specification：590mmx480mmx340mmm
Base Info
- Model NO.：SYD-8019A
- Trademark：SHANGYI
- Origin：China
- HS Code：9021809000
- Production Capacity：1000 Sets,Month
Description
I.Product Description
1.SummaryThis instrument is designed and made as per standards GB/T 8019 Standard test method for gum content in fuels by jet evaporation and ASTM D381 Standard test method for gum content in fuels by jet evaporation. It is suitable to determine the existent gum content of aviation gasoline and motor gasoline(Not suitable to determine the existent gum content of aviation turbine fuel)
2. Main technical features
1. It equips a specially designed heating bath.The gas circuit is designed reasonably and the effect of evaporation is good.
2. The material of working bench is stainless steel. It has 5 sample holes. Each jet flow can be adjusted and controlled by an independent flowmeter. It can do 1 ~ 4 determinations at the same time.
3. The instrument is desktop structure. Simple design and easy to operate. It equips an air compressor to make it meet requirements of standard.
4. Each test hole equips unique flowmeter. It can control the hot-air flow rate of each test hole correctly.
5. The instrument is equipped with an oil-water separator to prevent oil gas and water vapor from entering the instrument.
3.Main technical specifications
1. Power supply: AC(220±10%)V,50Hz,3500W
2. Dimension of evaporation bath: φ260mm×130mm
3. Sample positions: 5 positions
4. Dimension of sample position: φ51mm×70mm
5. Working temperature: (160~165)ºC
6. Temperature control method: Automatic
7. Temperature display: Digital
8. Flow rate display: Float ball type
9. Working pressure of reducing valve: 0.07MPa
10. Air flow rate of jet outlet: 600mL/s for each hole
11. Overall dimension: 590mm×480mm×340mmm(Thermometer holder is not included)
Note: An air compressor is equipped II.Company Profile

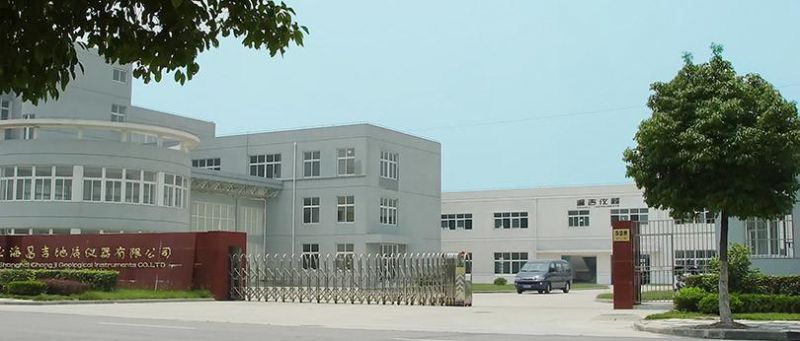

Shanghai Changji Geological Instrument Co.,Ltd is established in 1998,the former is Shanghai Geological Instrument Factory under the Ministry of the National Geology and Mineral Resource.

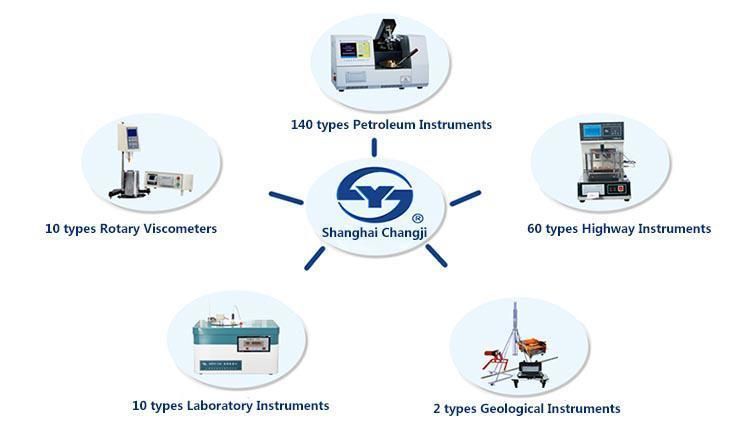

Changji has four major series and more than 200 types products: more 140 types petroleum instruments,more 60 types highway instruments,each 10 types for laboratory instruments,Rotary viscosity instruments and geological instruments.Also we develop and produce more than 30 kinds of non-standard instruments according to the clients' special requirements each year.It depends on the complete category products,strong matching capacity and fast development ability,its products are not only widely used in China,but also sold and welcomed in 20 countries.
The highway instrument three major index:penetrometer,ductility tester and softening point tester.Changji's products are with the advanced technical features and fit the ISO, ASTM, IP, GB and other international standards.Recent years,we develop smart instruments with the communication port to realize the remote control, transmitting test parameters and networking management of Laboratory equipments. Changji pays more attentions to develop and invest in the technology innovation.So far,we have gotten the China National Invention Patent 1,the No. ZL 2005 1 0024291.9;Utility Model Patent 2,the No.ZL 2004 2 0023460.8 and ZL 2013 2 0365490.6.Other two national innovation patents and two ulility model patents are in the process of the official investigation.Changji's products become more and more stabilization and elegant after many years development and research.So selecting Changji,you choose the precipitation of time and satisfication.

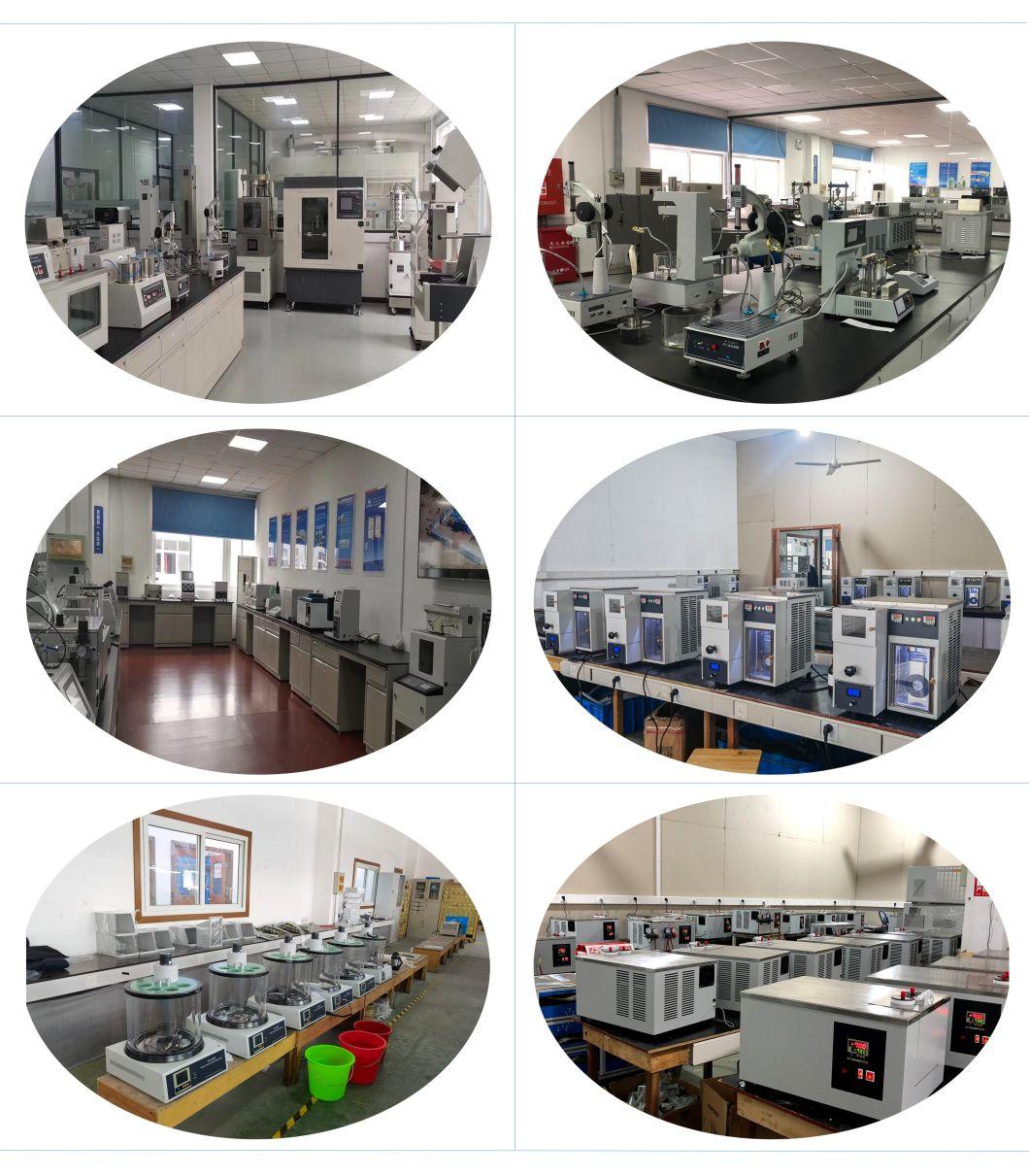

III.Sample Room and Work Shop

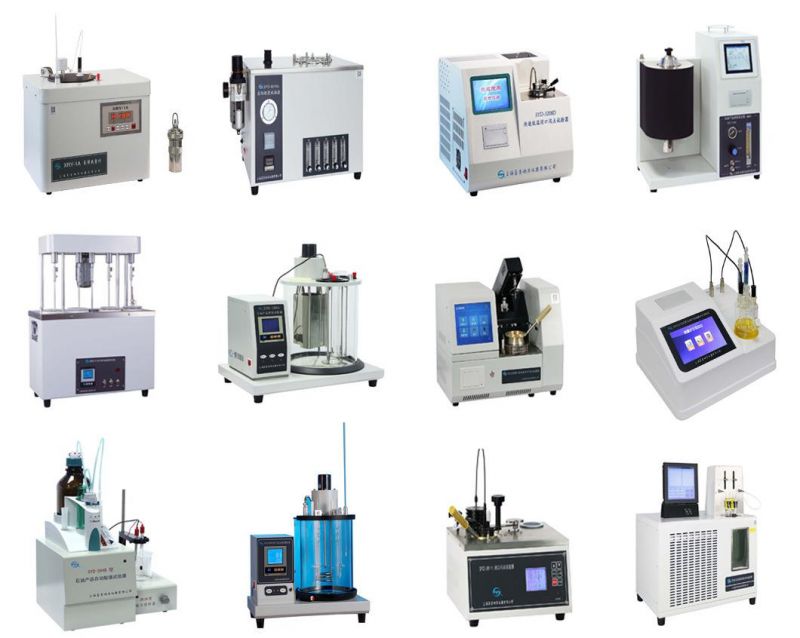

IV. Hot Products
V. Product Packing and Transportation
VI. FAQ
1. Are your products competitive?
Sure, we are leading manufacturers in China with more than 30 years' experience and professional team, we can guarantee high quality, provide training and good after-sales service.
2. How can I choose the right one for me?
You can contact us by email, online or other ways with detailed requirements, we will recommend right one accordingly.
3. What if I have difficulty in using the instrument?
Pls contact us any time when you have difficulty in using the instruments, we will provide equipment operation manual, operation video and so on. We can also provide training acoordingly.
4. When can I receive the goods?
Ordinary non customized models will be delivered within 7 working days. The transportation time is determined by the logistics company, and the general transportation time is 5-7 days.
5. How to deliver?
For domestic customers, we usually provide door-to-door service. For customers overseas, we usually deliver the instruments to the designated places.
6. How about the packing ?
Wooden cases or hard boxes are used to prevent possible damage during transportation of the instruments.
7.How about the warranty?
Usually warranty is 12 months.

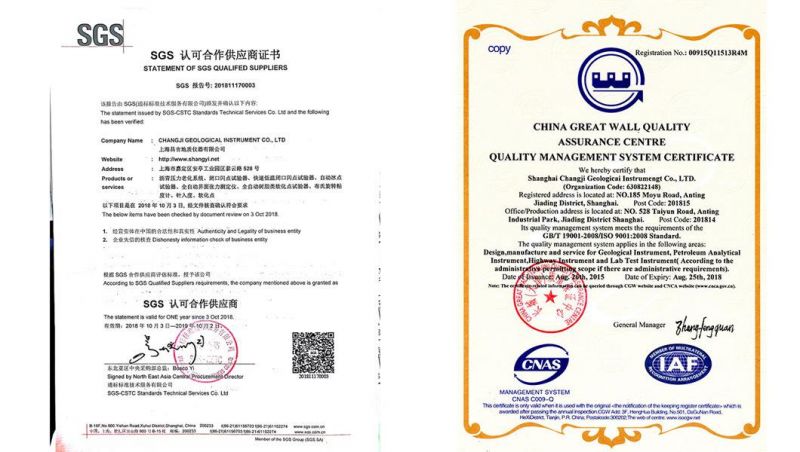

VII. Certificate
