• Model NO.：WAW-1000B
• Control：Computer Control
• Weight：>2000Kg
• Power Source：AC220V
• Oil Cylinder Position：Under
• Product Name：1000kn Microcomputer Controlled Electro-Hydraulic
• Max.Testing Power：1000kn
• Software Control：PC Controlled Electro-Hydraulic Servo Utm Software
• Testing Power Precision：Grade 1
• Testing Power Distance：2%-100%Fs
• Displacement Measuring：0.01mm
• Max.Lift Speed of Testing Board：70mm,Min
• Piston Travel：150mm
• Clamp Width of Flat Specimen：80mm
• Bending Stick Width：140mm
• Transport Package：Standard Wooden Packing
• Trademark：YF
• Origin：China
• Production Capacity：1000pieces,Year

Basic Info.

Model NO. WAW-1000B Control Computer Control Weight >2000Kg Power Source AC220V Oil Cylinder Position Under Product Name 1000kn Microcomputer Controlled Electro-Hydraulic Max.Testing Power 1000kn Software Control PC Controlled Electro-Hydraulic Servo Utm Software Testing Power Precision Grade 1 Testing Power Distance 2%-100%Fs Displacement Measuring 0.01mm Max.Lift Speed of Testing Board 70mm/Min Piston Travel 150mm Clamp Width of Flat Specimen 80mm Bending Stick Width 140mm Transport Package Standard Wooden Packing Trademark YF Origin China Production Capacity 1000pieces/Year

Product Description

Product Description:1000KN Microcomputer Controlled Electro-Hydraulic Servo Universal Testing Machine

Use:
    It is suitable for doing testing experiments such as the tensile, compression, bending and shear testing for all kinds of metal materials and nonmetal materials such as plastic, concrete, cement and so on.

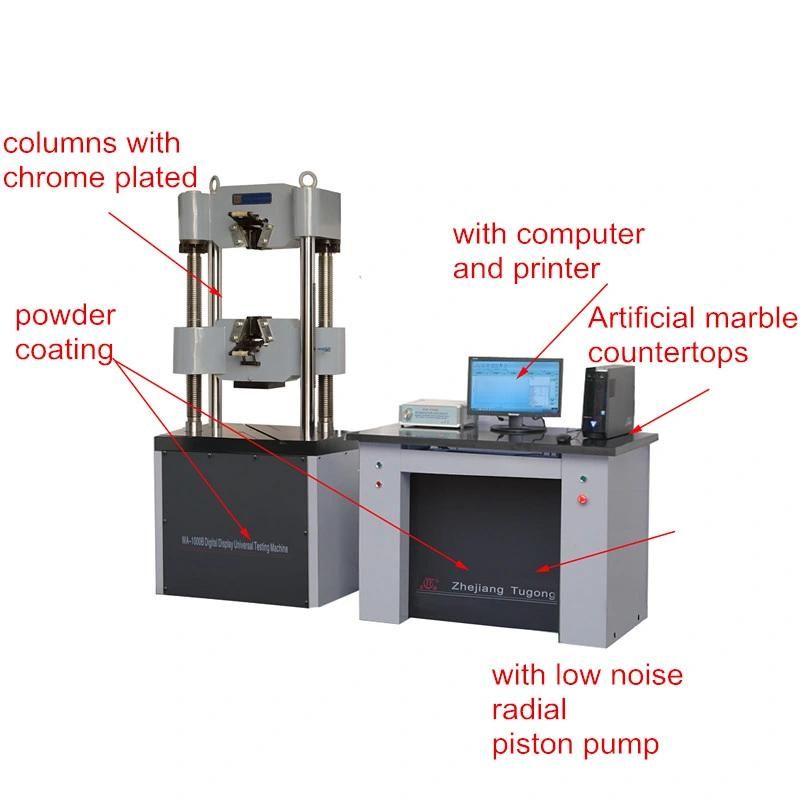

    The oil cylinder is set on the bottom in the machine, and with double space frames, the test space can be adjusted automatically. The control
unit is composed of computer and control system, it process stress, strain and displacement control modes, the test data can be stored at will, and the data and curves can be reanalyzed, part amplified and data re-edition, test conditions (specimen, measurement) are programmable, all the mechanical properties can be obtained automatically, and print whole test report and curve.

Standard:
    It accords with the relative requirements of ISO, ASTM, JIN, GB and many other testing methods. EN10002-1, ISO 6892, ASTM E8, ASTM C39, ASTM F606, SAE J429, CE Compliant

Feature:
    These frames feature are dual spaces, so users can quickly change between tension and compression testing without having to remove heavy fixtures. Control console with integrated hydraulic power pack, precise loading regulator and unloading valves, Extra-length screws and columns, with an adjustable upper crosshead, to increase the available test space for longer test samples. Semi-open front hydraulic wedge clamps for easier loading and rapid loading and unloading of specimens.

Accessories:
    Main frame; Control console; Controller and sensor; Computer and software; Hydraulic oil pipe and control button box; Sample jaw three sets; Bend support saddle; Bend pressure energy; Spheric compression plate; Lower compression plate; Top board; Ground screw and nut; Inner hexagon spanner; Double offset ring spanner; Other accessories full sets.

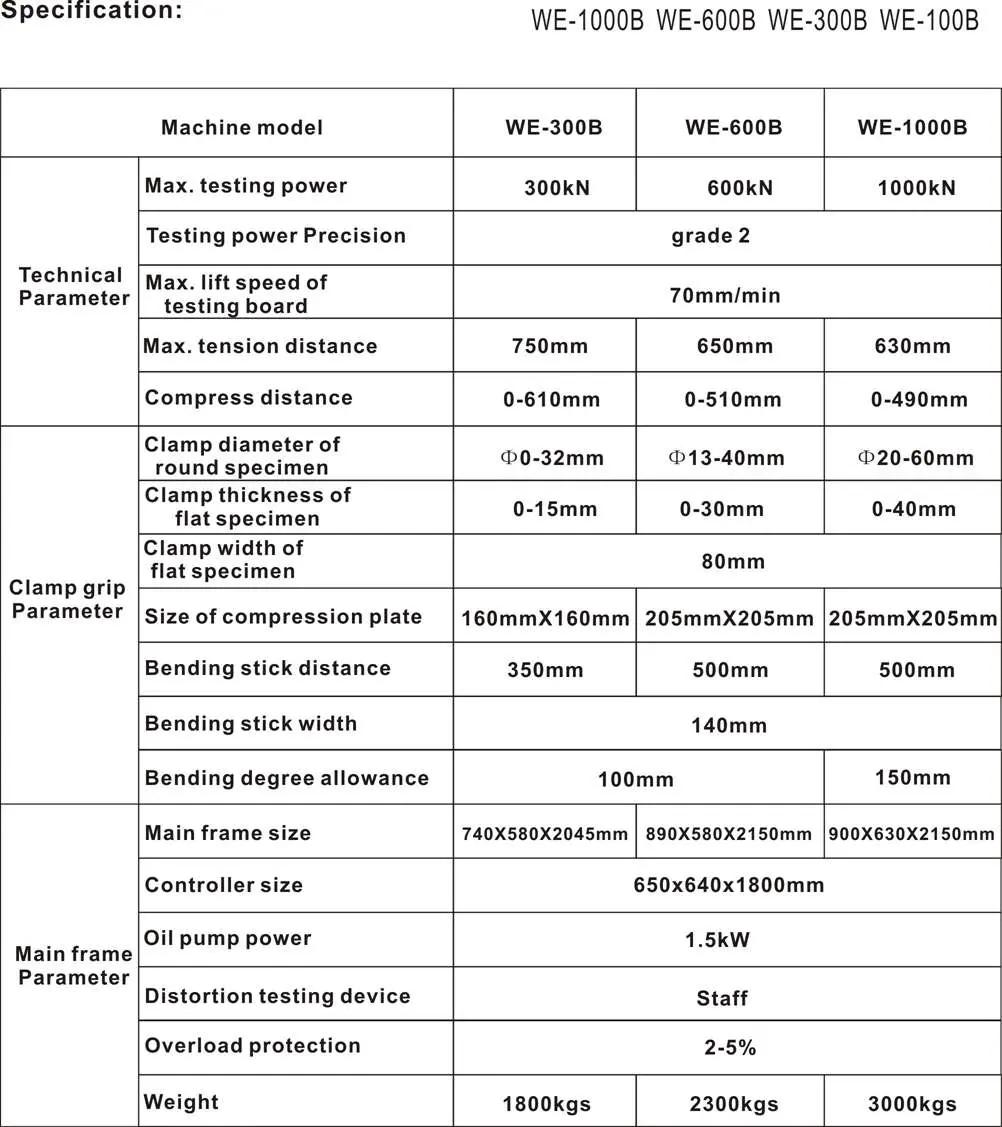

Specification:

Why choose us:

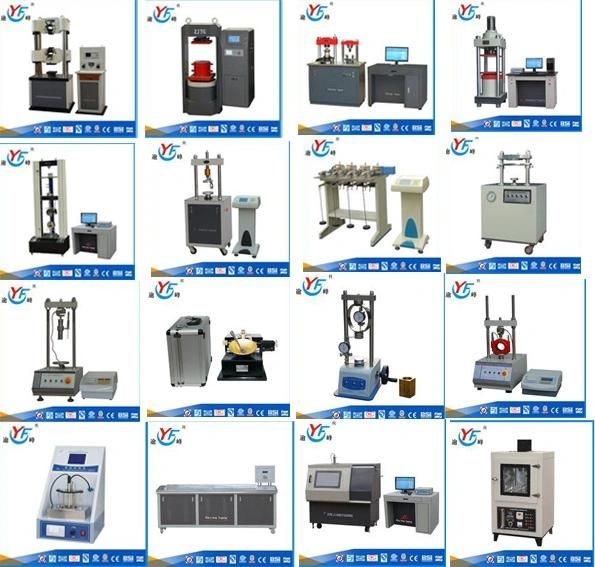

a.Full range products, offer you one-stop purchase, save your time, save your delivery cost.


b. Good quality control


c.Competitive price, save your money.

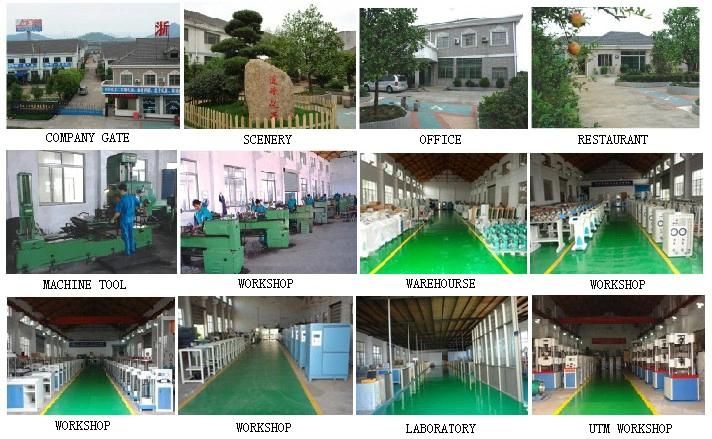

d. We are factory



FAQ:
1.Are you factory?
    Yes,we are factory ,35years focusing on test instruments field.
2.Delivery Time?
    10-15working days after receiving full payment.
3.What 's your payment terms?
     We accejpt T/T,L/C or Western Union.
4.What's your terms of trade?
     We accept EXW, FOB, CNF, CIF, AND SO ON.
5.Warranty?
     12months.
6.Do you have any exhibitions?
    Yes. We have many exhibitions in domestic and abroad. If you come to china, pls contact           with us, we will inform you the newest  booth No.
7.Our products need to be tested by a special testing machine, do you accept customized?
    Sure. We accept all chanllges.

Send us an inquiry and we will contact you soon!
If you want to know more,pls view our official website:cnzjtg.en.made-in-china.com
