• Model NO.：WG-4
• HS Code：90248000
• Production Capacity：200 Sets,Month

Basic Info.

Model NO. WG-4 HS Code 90248000 Production Capacity 200 Sets/Month

Product Description

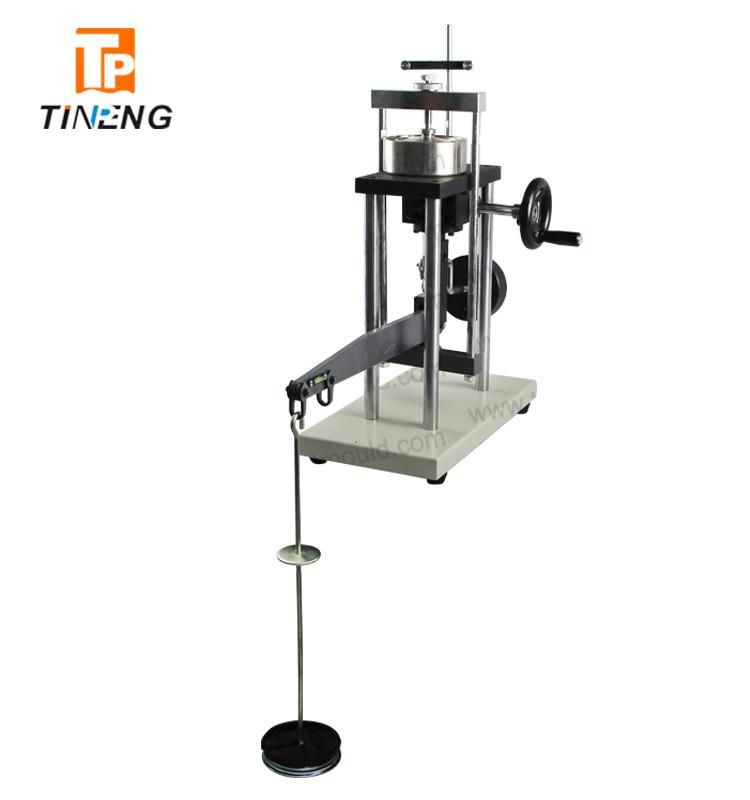

WG-4 Single and Lightweight Odeometer

Features: Small in size, lightweight, suitable for use on the spot.


Pressure range: 12.5, 25, 50,100,200,300,400kPa
Lever ratio: 1:12, 1:10
Soil sample: 30cm² x 2cm height, 50cm² x 2cm height
Overall dimension: 550mm*220mm*370mm
Net weight: 20kg (weight not included in)

Standard accessories for WG-4
Preload weight (25.5g): 1pc
Preload weight (51g): 1pc
2.55kg Weight: 6pcs
1.275kg Weight: 3pcs
0.637kg weight: 1pc
0.319 weight: 1pc
Hanging scaffold (0.319kg): 1pc
30cm² soil mode: 1pc
Container: 1set, including guide ring 2pcs, cutting ring 2pcs, protect ring 2pcs, porous stones 3 pcs.
