• Model NO.：HD-B609B-S
• Control：Computer Control
• Weight：0-100Kg
• Power Source：AC220V
• Test Speed：0.1-500mm,Min(Convertible)
• Motor：Panasonic Servo Motor
• Panasonic Servo Motor：0.001mm
• Stroke：1000mm
• Sensor：Celtron Load Cell

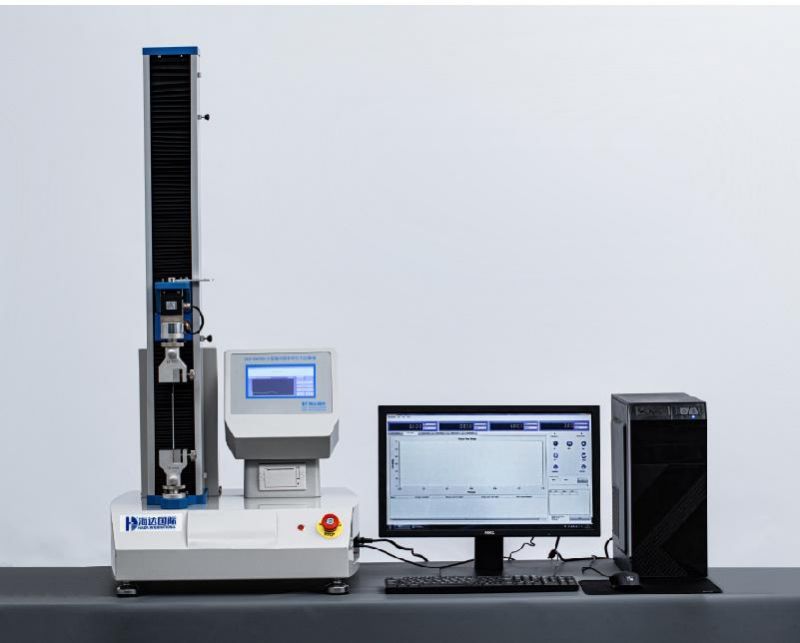

• Operate and Display：Computer
• Load Resolution：1,250, 000
• Screw：High Precise Ball Screw
• Power：One Phase, AC 220V
• Load Cell：Celtron Sensor
• Transport Package：Strong Wooden Case
• Specification：Atsm
• Trademark：HaiDa
• Origin：Guangdong China
• HS Code：9024109000
• Production Capacity：60sets,Month

ItemsSpecificationSensorCeltron load cellCapacity5, 10, 20, 25, 50, 100, 200kgUnit SwitchoverG, KG, N, LBDisplay DeviceLCD or PCResolution1/250,000Accuracy±0.5%Max. Stroke1000mm (including fixture)Test Speed0.1-500mm/min (adjustable )MotorPanasonic Servo MotorScrewHigh Precise Ball ScrewElongation Accuracy0.001mmPower1ø, AC220V, 50HZWeightApprox.75kgAccessoriesOne set tensile clamp, one set Lenovo computer, one piece English software CD, one piece operation video CD, one piece English user manual

Product Features

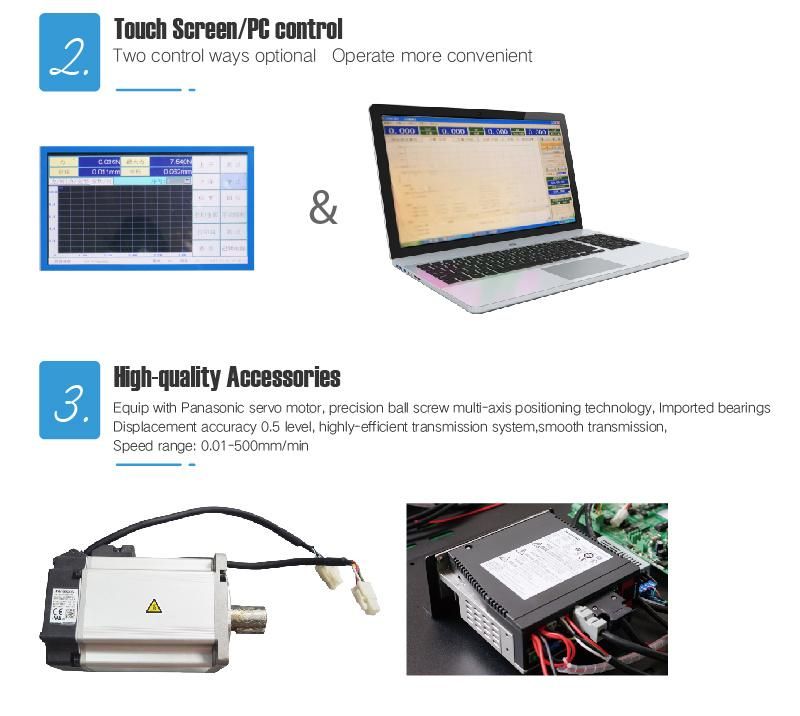

1. Motor system: Panasonic servo motor +Servo driver +High precise ball screw (Taiwan)

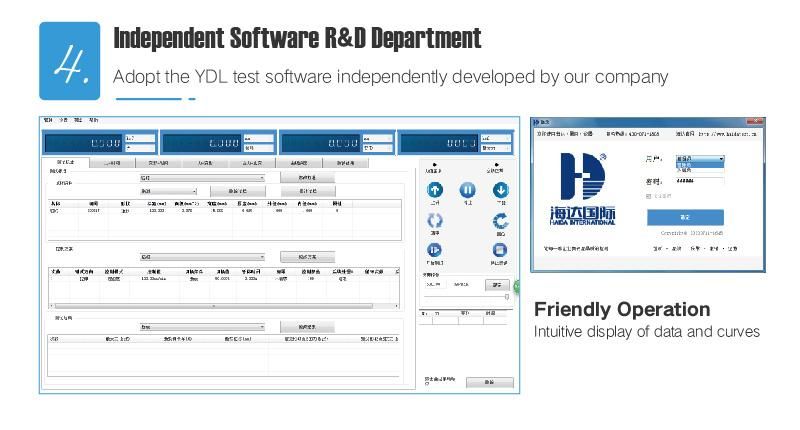

2. Control system: a, computer control with TM2101 software; b, Back to origin automatically after the test, c, store data automatically or by manual operation

3. Data transmission: RS232

4. Displacement resolution: 0.001mm

5. Graph scale automatic optimization can make graph to display with best measurement and can implement graphics dynamic switching in the test and has force-elongation, force- time, elongation -time, stress - strain.

6. It can save results automatically after test finished, and it is manual filing. It can display maximum force, yield strength, compressive strength, tensile strength, elongation, peel interval maximum, minimum and average, etc.

7. User can set parameters of product material such as length, width, thickness, radius, area and so on.

8. Many languages random switching: Simplified Chinese, Traditional Chinese, and English.
