• Model NO.：WDW-300
• Control：Computer Control
• Weight：1000-2000Kg
• Power Source：AC380V
• Oil Cylinder Position：Under
• Transport Package：Wooden Cases
• Specification：ISO SGS
• Trademark：C-TECH
• Origin：China Mainland
• HS Code：90248000
• Production Capacity：300 Sets,Month

Basic Info.

Model NO. WDW-300 Control Computer Control Weight 1000-2000Kg Power Source AC380V Oil Cylinder Position Under Transport Package Wooden Cases Specification ISO SGS Trademark C-TECH Origin China Mainland HS Code 90248000 Production Capacity 300 Sets/Month

Product Description

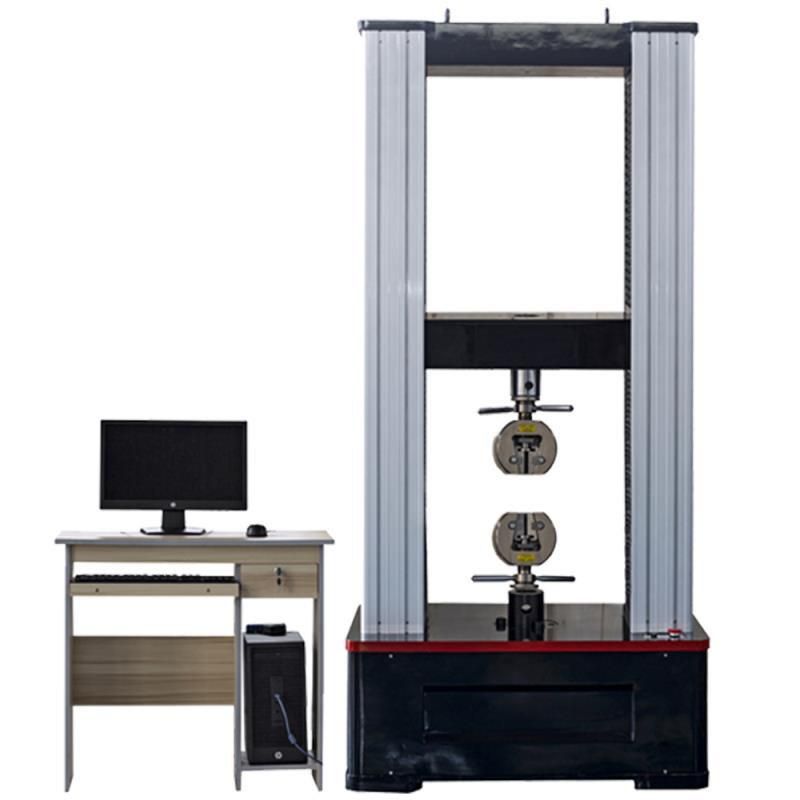

WDW-300 300KN Electronic Universal Testing Machine


WDW-300/300KN computer-controlled tensile strength meter is mainly used for testing mechanical properties of various metals, non-metals and composite materials such as tensile, compression, bending, shear, stripping, tearing, etc. The system adopts microcomputer closed-loop control, which can realize constant velocity displacement, constant velocity stress, constant velocity strain and can be programmed. The design of the test machine has the characteristics of beautiful appearance, convenient operation, stable and reliable performance, no pollution, low noise, and high efficiency. The design of the auxiliary equipment is matched with the main machine. The structure is wedge-type translational and manual rotary clamping. The specimen is not subject to additional force. Convenient, reliable and non - slip clamping.

The working environment should be free from vibration and dust. At room temperature (15-25); Humidity < 70%; Surrounding no vibration, no corrosive medium, no strong magnetic field interference; Power supply voltage fluctuation not exceeding 10% of rated voltage.




Max Load(kN)	300
Accuracy	Grade 1
Testing Range	0.2%~100%F.S(Max Load)
Measuring Accuracy	Better than ±0.5% of the Indicator
Resolution of Effort	1/300000 of the Full Scale
Displacement Accuracy	±0.5%
Displacement Resolution	0.04μm
Displacement Error	Within ±0.5% of Indicator
Deformation Resolution	0.001mm
Power Supply	380v/50hz/single-phase
Deformation Relative Error	Within ±0.5%
Extensometer Range	10~800mm(if Configurated the Extensometer )
Extensometer Relative Error	Within ±0.5% of the Indicator (if Configurated the Extensometer )
Extensometer Resolution	0.008mm (if Configurated the Extensometer )
Size(L*W*H)	1055*1010*2310mm(Can be Customized)
Net Weight	about 1600Kg
