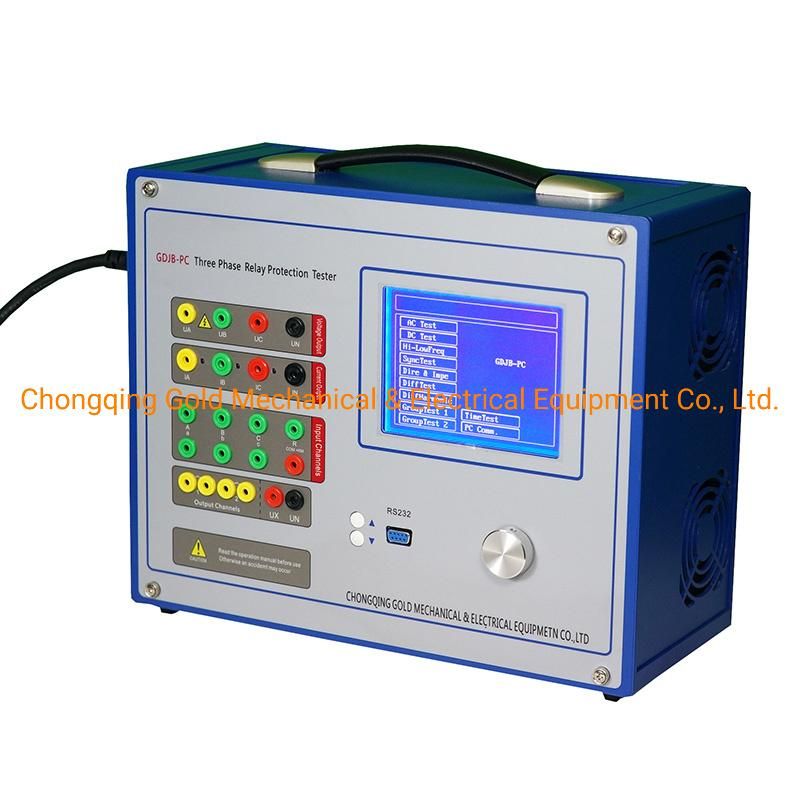

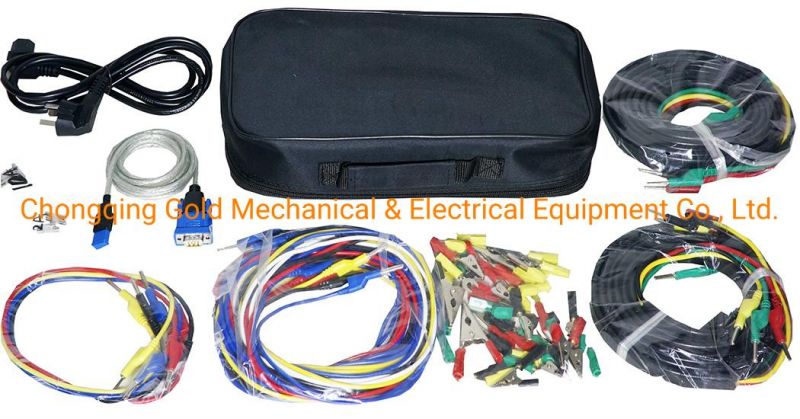

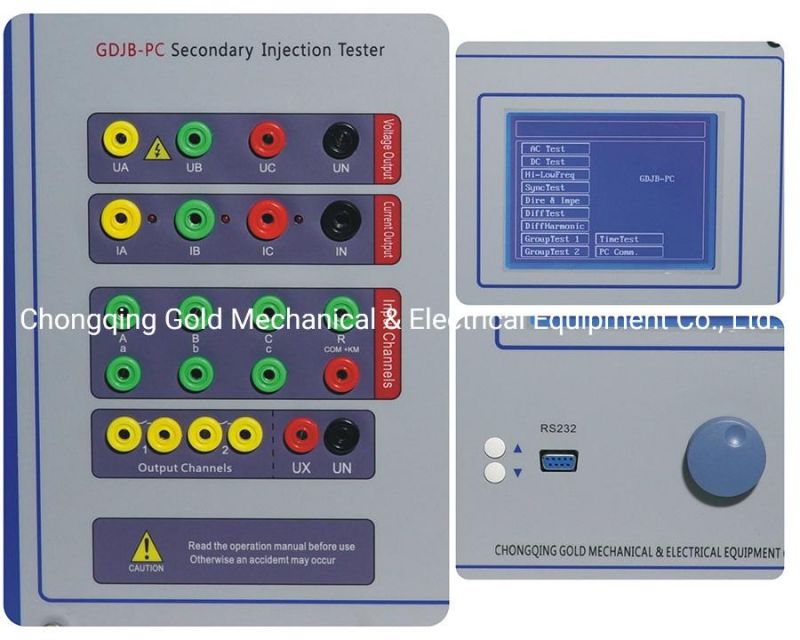

• Model NO.：GDJB-PC
• Application：3 Phase Protection Relay System Testing
• Output：3 Phase Current and 3 Phase Voltage Output
• Transport Package：Plywood Case
• Specification：25KG
• Trademark：GOLD
• Origin：Chongqing
• HS Code：9030849000
• Production Capacity：500pieces,Month

Items

Specifications

Alternating Current(AC) output

1

Output accuracy

0.5magnitude

2

Phase current output (effective value)

0~40A

3

Three parallel phase current output (effective value)

0~120A

4

Phase current value with long time under permission (effective value)

10A

5

Phase current maximum power output

420VA

6

Three parallel phase current maximum power output

900VA

7

Three parallel phase current maximum work time

10s

8

Frequency range (base wave)

20~1000Hz

9

Harmonic frequency number

1~20 time

Direct Current(DC) output

1

Output accuracy

0.5magnitude

2

Current output

0 ~ ± 10 A/each phase

0 ~ ± 30 A/every three parallel

3

Maximum output of load voltage

20v

Alternating Voltage output

1

Output accuracy

0.5magnitude

2

Phase voltage output (RMS)

0 ~ 120v

3

Line voltage output (RMS)

0 ~ 240v

4

Phase voltage/line voltage power output

80VA/100VA

5

Frequency range (base wave)

20 ~ 1000Hz

6

Harmonic frequency number

1 ~ 20 times

Direct voltage output

1

Output accuracy

0.5magnitude

2

Phase voltage output amplitude

0 ~ +160v

3

Line voltage output amplitude

0 ~ + 320v

4

Phase voltage/line voltage power output

70VA/140VA

The switch quantity and time measurement

1

Switch parameters input

7 ways;

Empty contact: 1~20mA, 24v

Power contact access: "0":0~ +6V;

"1":+11 V ~ +250V

2

Switch parameters output

2 couples  DC:220V/0.2A;   AC:220V/0.5A

3

Time measurement

Measuring range: 0.1ms ~ 9999s / 0.1ms
