Methane CH4 Ethylene C2h4 Hazardous Gas Permeability Test Machine
Pubtester Instruments Co., Ltd.- Test Method：Differential Pressure Method
- Number of Sensors：3
- Item No.：Gtr-G3
- Test Modes：Proportional Mode and Standard Mode
- Vacuum Resolution：0.1 PA
- Certifiacte：CE, ISO
Base Info
- Model NO.：GTR-G3
- Test Gas：Helium, Hytrogen, Oxygen
- Trademark：Pubtester
- Origin：Shandong, Jinan
- Production Capacity：10 Sets,Quarter
Description
Extended ApplicationPetrochemical Including transportation pipelines, such as MDPE plastic CO2 testing Various Gases Test the permeability of various types of gases, e.g. O2, CO2, N2, Air and He Inflammable, Explosive Gases Test the permeability of inflammable and explosive gases Biodegradable Films Test gas permeability of various sorts of biodegradable films, e.g. starch-based biodegradable bags Materials for Aerospace Usage Test the Helium permeability of airship gas bags Paper and Paper Board Test gas permeability of paper and paper-plastic composite materials, e.g. aluminized paper for cigarette packages, Tetra Pak sheeting, paper bowls for instant noodles and disposable paper cups Paint Films Test gas permeability of substrates coated paint films Glass Fiber Cloth and Paper Including glass fiber cloth and paper materials, e.g. Teflon paint cloth, Teflon welding cloth and Teflon silicon rubber cloth Soft Tube Materials for Cosmetics Including various types of cosmetic tubes, aluminum-plastic tubes and toothpaste tubes Rubber Sheeting Including various sorts of rubber sheeting, e.g. car tires Vacuum Packaging Including vacuum packaging manufacturing sheets that are easily susceptible to gas oxidation and corrosion, such as electronic products, such as consumable sensors, etc.
Technical Specifications
Standards
ASTM D1434, GB/T 1038, YBB 00082003, ISO 2556, ISO 15105-1, JIS K7126-A
Configuration
Standard configuration: Instrument, vacuum pump, vacuum pipe, gas tube, pressure regulator, sampler, vacuum grease, reference film, temperature controlling device.
Optional configuration: Computer, container testing fixture, sampler blades, vacuum grease, filter paper, humidity generator.
Note: Customer need to prepare testing gas.
FAQ
Are you a manufacturer or trading company?

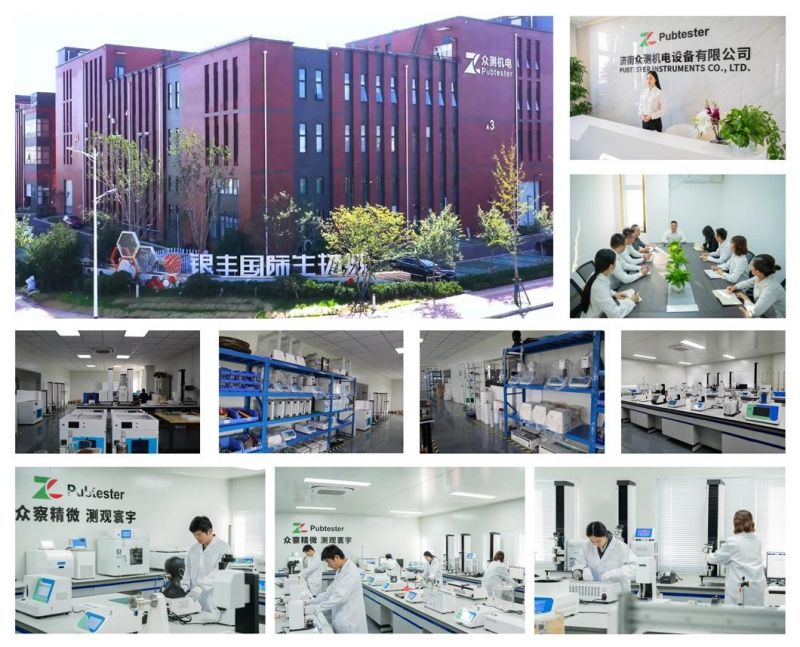

We are the manufacturer and trading combo, which specialize in material testing instruments such as plastic package, medical device, facial mask, protective clothing and pharmaceutical package, etc. We located in Jinan, Shandong, China.
Do you have any certificate?
We have obtained CE certificate, passed ISO 9001, IPMS management system certificates, and have 18 utility model patents and 4 software copyright certificates.
How about the installation?
The user's manual specifies the installation requirements with details. We will advise the relative information in advance, such as power supply, space, required temperature, humidity, etc.
Do you have after-sales service?
We will carry out the equipment inspection before delivery. If the machine does not work properly, we can make a remote control service to help dealing with the failure. We promise to reply within 24 hours and provide solutions within 2 working days.
How about the warranty?
Our warranty is 12 month, lifelong free of charge! User just bear the materials cost and express charge out-of-warranty period.
How long does the delivery time?
For the regular machine, 3-5 working days. For the customized one, 30 days or so.
Technical Specifications
| Specifications | GTR-G3 |
| Test Range | 0.05~50,000 cm3/m2·24h·0.1MPa (standard volume) At least 500,000 cm3/m2·24h·0.1MPa (extended volume) |
| Number of Specimens | 3 |
| Number of Sensors | 3 |
| Test Mode | Three chambers independent |
| Vacuum Resolution | 0.1 Pa |
| Vacuum Degree of Test Chamber | <20 Pa |
| Test Temperature | 5°C~95°C ±0.1°C (dry gas at standard atmospheric pressure) standard atmospheric pressure)standard atmospheric pressure) |
| Temperature Accuracy | ±0.1ºC |
| Test Pressure | -0.1 MPa ~ +0.1 MPa |
| Gas Supply Pressure | 0.1 MPa~0.8 MPa |
| Test Gas | O2, N2 and CO2 (outside of supply scope) |
| Carrier Gas Interface | Ф6 |
| Vacuum Pipe Diameter | 1/4" |
| Correction Method | Standard film calibration, external calibration of vacuum sensor |
| Specimen Thickness | ≤3mm |
| Specimen Size | Φ97 mm |
| Test Area | 38.48 cm2 |
| Instrument Dimension | 740 mm (L) x 415 mm (W) x 430 mm (H) |
| Power Supply | AC 220V 50Hz |
| Net Weight | 50 kg |
