• Model NO.：HD-E704
• Control：Computer Display, Digital
• Weight：100-500Kg
• Power Source：AC220V
• Product Name：Anti-Yellowing Aging Test Chamber
• Internal Chamber Size(W*D*H)：50*50*60cm
• External Chamber Size(W*D*H)：114*74*130cm
• Temperature Display Accuracy：0.1ºC
• Control Mode：Automatic Calculation Controller
• Distribution Accuracy：±1ºC (Ambient ~ 100ºC)
• Sample Holder Rotation Speed：Diameter 45cm, 10±2 Roll,Min
• UV Light Source：300W UV Lamp
• Heating Method：Hot Air Circulation
• Transport Package：Strong Wooden Case
• Specification：ISO9001: 2008
• Trademark：HAIDA
• Origin：Dongguan, China
• Production Capacity：150 Sets,Month

Basic Info.

Model NO. HD-E704 Control Computer Display, Digital Weight 100-500Kg Power Source AC220V Product Name Anti-Yellowing Aging Test Chamber Internal Chamber Size(W*D*H) 50*50*60cm External Chamber Size(W*D*H) 114*74*130cm Temperature Display Accuracy 0.1ºC Control Mode Automatic Calculation Controller Distribution Accuracy ±1ºC (Ambient ~ 100ºC) Sample Holder Rotation Speed Diameter 45cm, 10±2 Roll/Min UV Light Source 300W UV Lamp Heating Method Hot Air Circulation Transport Package Strong Wooden Case Specification ISO9001: 2008 Trademark HAIDA Origin Dongguan, China Production Capacity 150 Sets/Month

Product Description

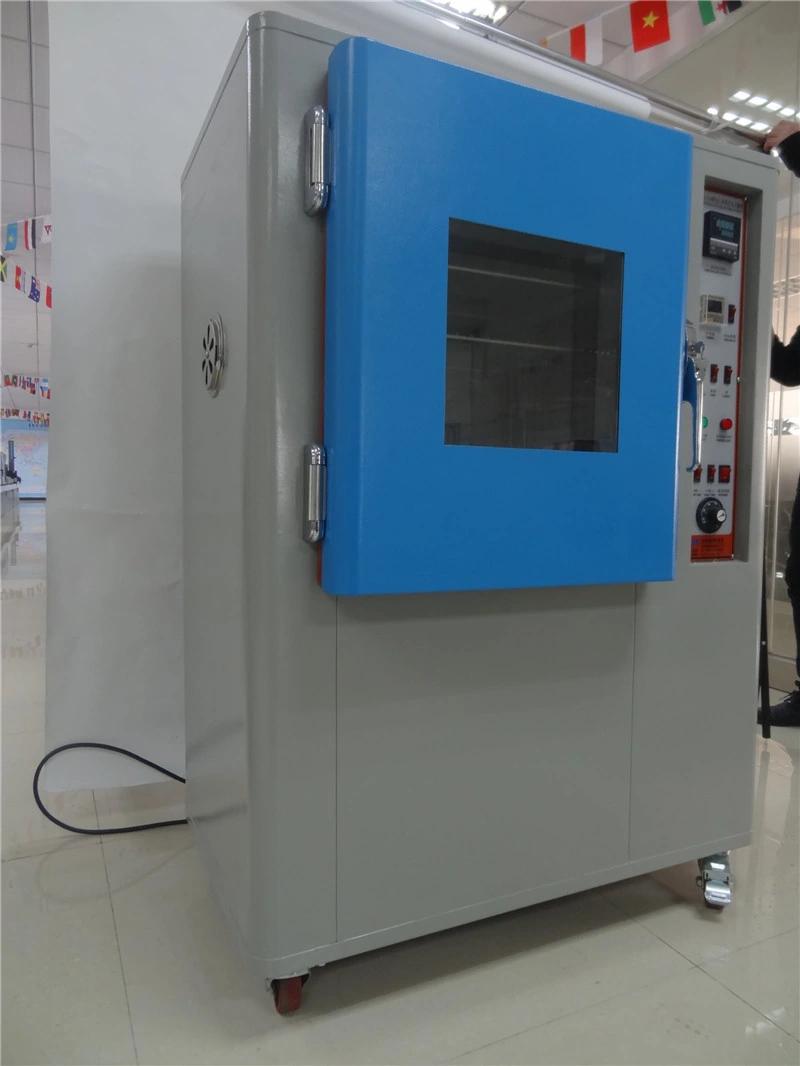

Lab Automatic Anti-yellowing Aging Test/Testing Chamber

Product Description
Aging & Anti-ellowing Test Chamber can do two kinds of testing: Aging and yellowing.

Aging: The machine can promote the deterioration of sulfur rubber to calculate the tensile and elongation changing rate after and before heating. It is generally acknowledged that doing the test at 70'C for one day is theoretically equal to exposing to the ambient air for 6 months.

The machine simulates the ambient environment to exposing under the ultraviolet radiation, the appearance change is stated that doing the test at 50'C for 9 hours is theoretically equal to exposing to the ambient air for 6 months.

Standard Features

Item	Specification
Internal chamber size(W*D*H)	50*50*60cm
External chamber size(W*D*H)	114*74*130cm
Temperature Range	Ambient Temperature~200ºC
Control Mode	Automatic Calculation Controller
Temperature display accuracy	0.1ºC
Control accuracy	±3ºC
Distribution accuracy	±1ºC (ambient ~ 100ºC)
Time memory	0-999 hours, Power Failure Memory Type, with Buzzer
Sample holder rotation speed	Diameter 45cm, 10±2 roll/min
UV light source	300W UV lamp
Standard Accessories	Sample shelf x 2pcs
Heating method	Hot air circulation
Security devices	Over-temperature power-off indicator light; Safety overload switch ammeter
Chamber material	Internal: Stainless Steel SUS304; External: Steel plate with baking varnish
Accessory	1 x English operation manual, 1 x Operation video CD

Applications

• The machine can do two tests: anti-yellowing and aging.
• Anti-yellowing: to stimulate the environment condition, driven by the sun ultraviolet radiation. It's generally thought that the appearance change at 50'C for 9 hours, in theory as exposed to atmosphere for 6 months.
• Aging: it can promote the increase of sulfur rubber deterioration so as to calculate the change rate of tensile and elongation before and after heat. Its generally thought that test for one day at 70C, in theory as exposed to the atmosphere for 6 months.

The Introduction Of Haida
Haida products are widely used in paper products, packaging, ink printing, adhesive tapes, bags, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products and other industries, and are applicable to all scientific research units, quality inspection institutions and academic fields. Our products meet UL, ASTM, JIS, GB,SO, TAPPI, EN, DIN, BS and other domestic and international standards.


Our Services:
If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-conference. If customers require on-site service, the transport and travel expense shall be borne by customer.
1. Pre-service
    --24 Hours online service for your consult.
    --Help choose right model,and a series of service,person,advise.
2. Middle service
    --Give you best offer
    --Provide discount for many sets order
    --Do customer's request:
    --Choose payment term you convienent.
    --Promptly production and delivery,inform you in time.
    --Can provide invoice value as you like to decrease your tax.
3. After sale service
   --1 year warranty service and all life maintenance.
   --Technical Egineer are avalible for oversea trainning.
   --Free change for some parts
   --Remote control technical consult
   --Free installation DVD
   --Maintenance plan
4. Commitment:
We will sign a letter of commitment while we sign the contract, which will improve your confidence to us.
5. Good Packaging:
Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc



Customer Feedback:



FAQ:

Q:Are your company a trading one or a factory?
A:Factory + trade (integration),More than 12 years focusing on test equipment field,6 years exporting experience.

Q:After an order is placed, when to deliver?
A:Generally about 10-25days, If we have inventory, we can arrange shipment within 3 days.
Please be aware that our production lead times depend on specific items and item quantities.

Q:What about the warranty with after - sales services?
A:The testing machine is guaranteed for 12 months by HAIDA,we can help you to repair
your problem controller freely,even it's not from our factory. After the warranty, the professional after-sale service team will provide perfect technical support and help guests solve problems encountered while using our product, handles guest problems and complaints in a professional and timely.

Q:What about the product' services and quality?
A:Each equiopment must be carried out 100% quality examination and test when shipping and delivery goods. Product use training, each of our product provide video training to show you how to install & operate. We can arrange engineer to train the operation of equipment to customer's company when you need. products are widely recognized and trusted by users.
A :Considerate Service Different countries plugs, manually change the-voltage from 110V to 220V, insurance indicator.

Q: Can your products be customized?
A: Yes, our product can be customized according to your parameters.
