• Model NO.：Wal-3000
• Maxcapacity：>300kn
• Accuracy Grade：0.5
• Load Way：Hydraulic Load
• Loading Method：Dynamic Load
• Display：Digital
• Control：Computer Control
• Weight：>1500kg
• Power Source：Customzied
• Oil Cylinder Position：Under
• Maximum Test Force (Kn)：300 600 1000 2000
• Machine Level：1 or 0.5
• Force Testing Range：2%-100% or 1%-100%
• Deformation Accuracy：±1% or ±0.5%
• Stretching Space (mm)：550 550 650 800
• Compression Space (mm)：≥500 650
• Support Mode：Automatic Clamping
• Shear Sample Diameter (mm)：10 (Optional)
• Upper and Lower Plate Size (mm)：φ160 (Optional 204X204)
• Oil Pump Motor Power：1.5kw
• Transport Package：Plywood Case
• Specification：10700x580x1720mm
• Trademark：Hiwoc
• Origin：China
• Production Capacity：50000sets,Year

Basic Info.

Model NO. Wal-3000 Maxcapacity >300kn Accuracy Grade 0.5 Load Way Hydraulic Load Loading Method Dynamic Load Display Digital Control Computer Control Weight >1500kg Power Source Customzied Oil Cylinder Position Under Maximum Test Force (Kn) 300 600 1000 2000 Machine Level 1 or 0.5 Force Testing Range 2%-100% or 1%-100% Deformation Accuracy ±1% or ±0.5% Stretching Space (mm) 550 550 650 800 Compression Space (mm) ≥500 650 Support Mode Automatic Clamping Shear Sample Diameter (mm) 10 (Optional) Upper and Lower Plate Size (mm) φ160 (Optional 204X204) Oil Pump Motor Power 1.5kw Transport Package Plywood Case Specification 10700x580x1720mm Trademark Hiwoc Origin China Production Capacity 50000sets/Year

Product Description

Main Technical Specifications:
This series machine is specially used for tensile, breaking strength, destructive test of steel wire rope, cable. Designed specifically for wire, rope, and cable testing, this series uses a horizontal frame test opening to accommodate long specimens and high elongation demands. This machine adopts steel welded frame structure, and uses single-rod double-acting piston cylinder to provide loading force, cylindrical pin plug to mount specimen, and load cell to measure testing force. These test frames are powered by hydraulics for high strength testing and can be customized in length to meet a variety of application requirements. It can adjust the tensile space according to the length of specimen in test process. The software uses three closed loop servo enables testing at user-defined loading rates.

1. Max Load Capacity:  3000kN
2. Range of Testing Force:  2%-100%
3. Accuracy of Testing Force:  ±1%
4. Resolution of Testing Force: 1/200000
5. Test Space (Piston Stroke is not included):  22000mm
6. Piston Stroke (Travel): 2000mm
7. Range of Displacement measurement:  22000mm
8. Resolution of Displacement measurement:  0.01mm
9. Testing Speed:  0-60mm/min
10. Height of work center:  350mm
11. Force measurement mode:  Load Cell
12. Control mode: Computer automatically controlling test process, and computer can timely collect the testing parameters like loading force, stroke etc. It and  display, record, process and print the test results, and control test procedures as the set program and can draw test curves automatically in real time.
13. Method of Specimen Clamping: Customized based on the specimen customers provide.
14. Test curve: Force-displacement, Force-time, Force-deformation, Stress-strain and so on.
15. Three close loop control.
16. Power supply: Three-phase, 380V, 50Hz

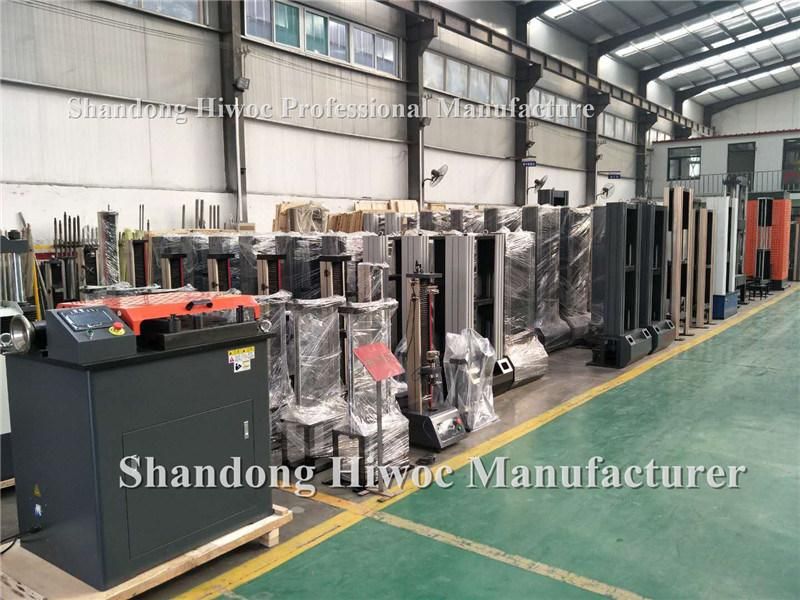

Welcome to our factory to inspect!!

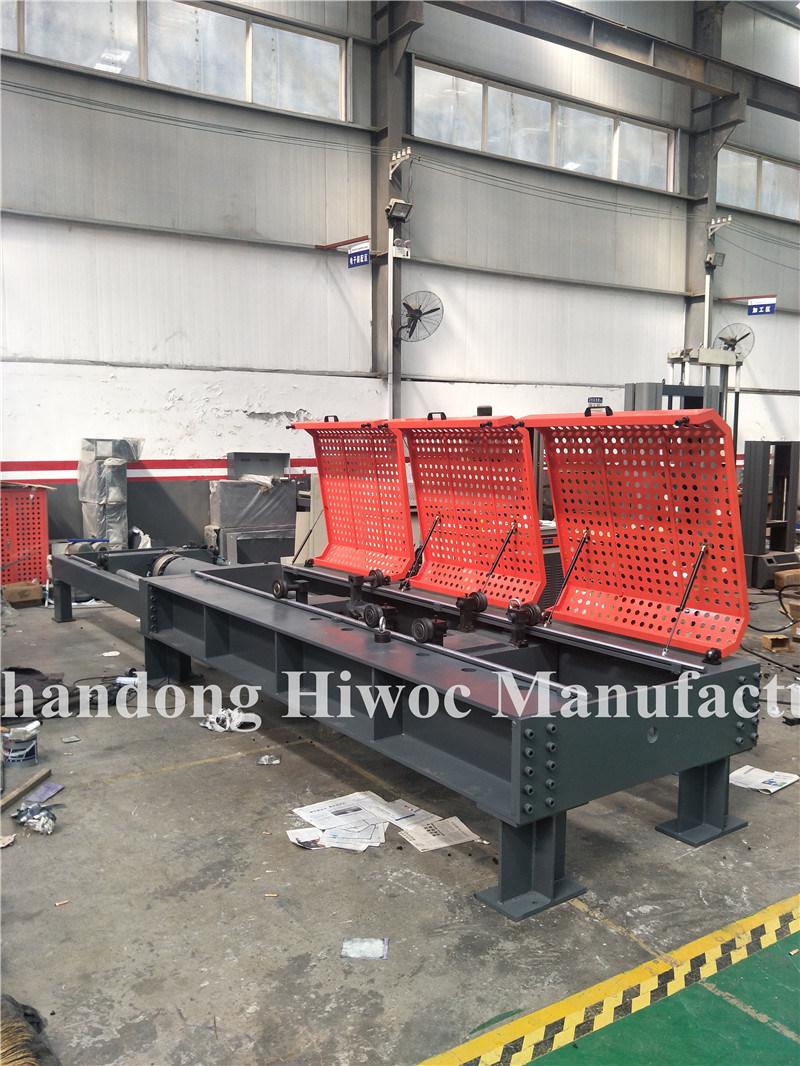

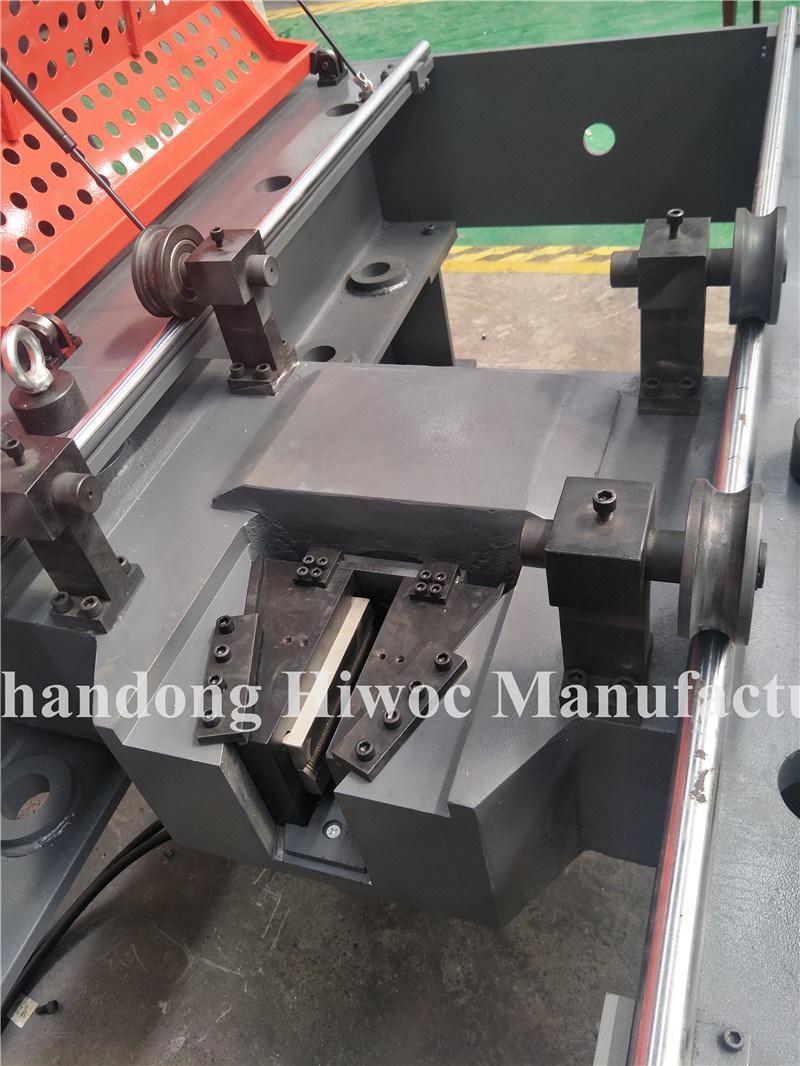

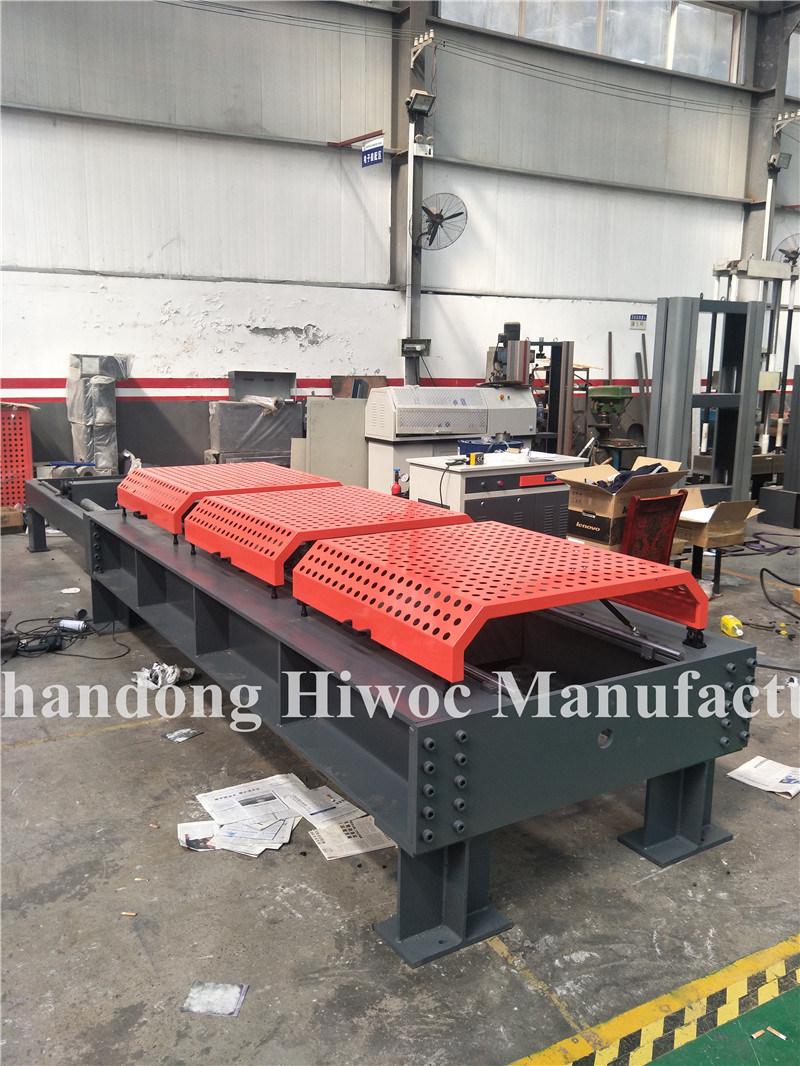

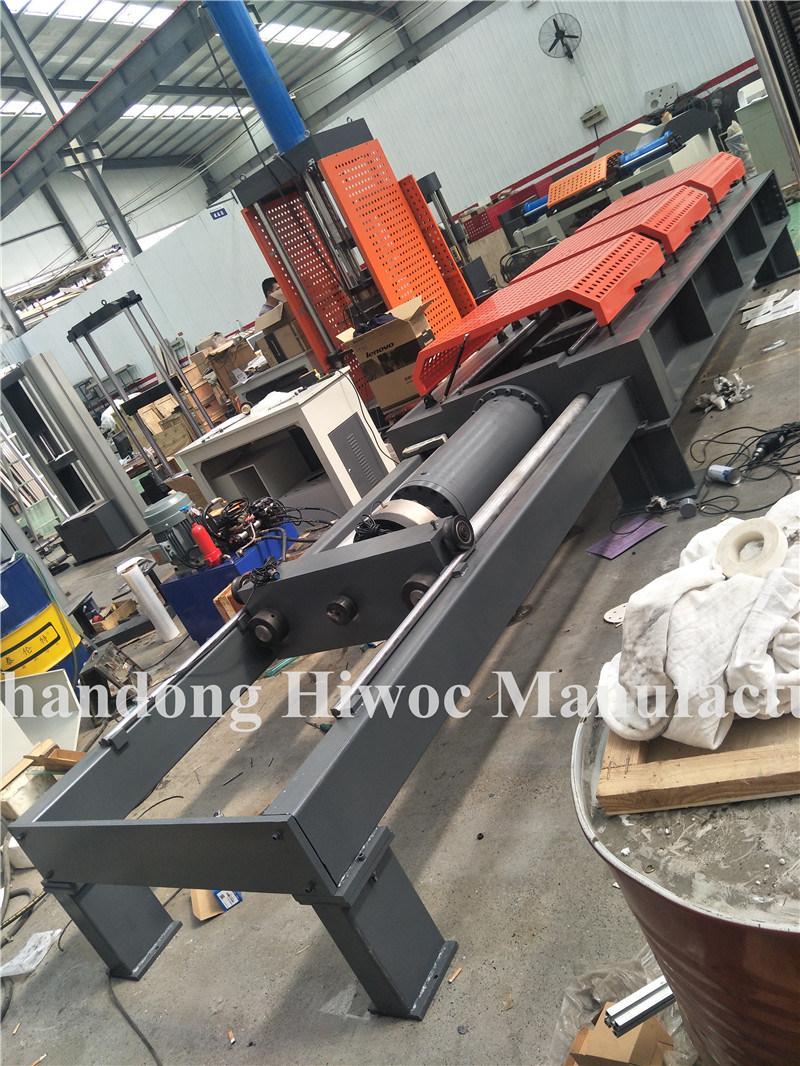

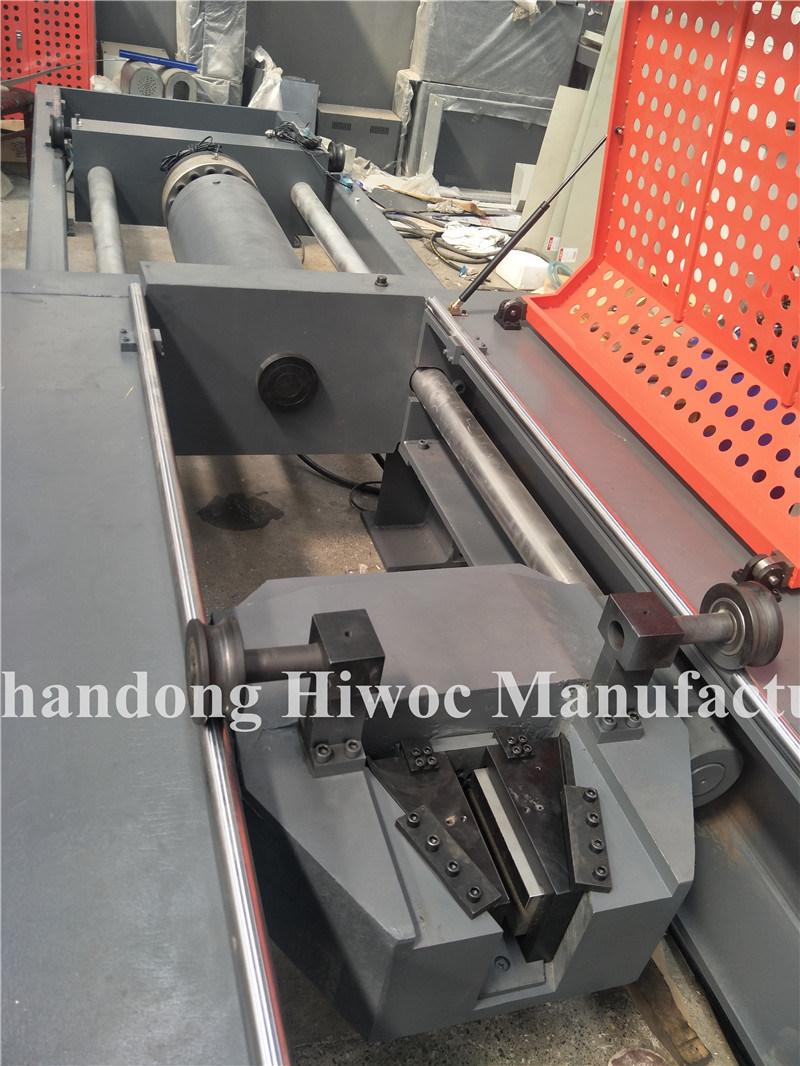

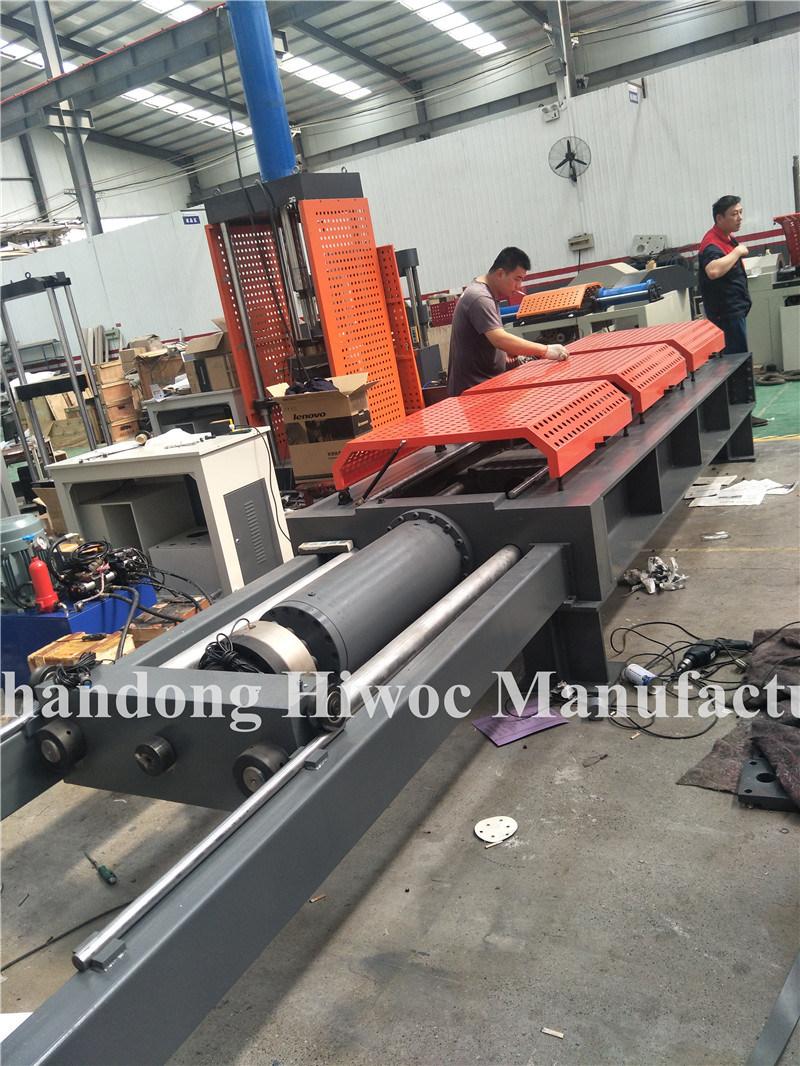

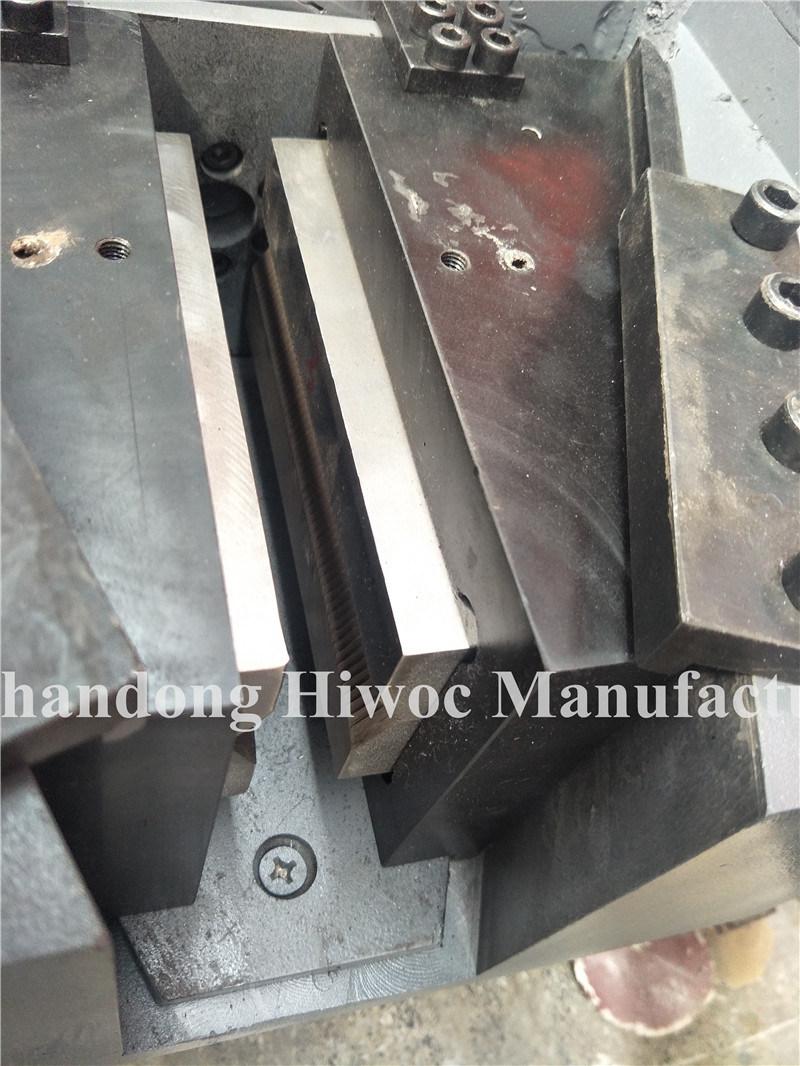

Machine details:









Other machines show
