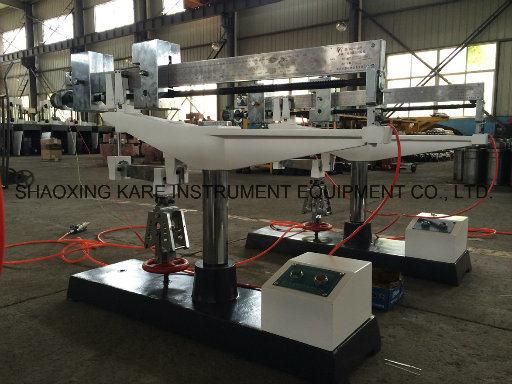

Electric Cement Bending Testing Machine (DKZ-6000)

SHAOXING KARE INSTRUMENT EQUIPMENT CO., LTD.
  • Type：Bending Testing Machine
  • Maxcapacity：6000n
  • Accuracy Grade：1
  • Weight：100kg
  • Test Kind：Cement Flexure Test
  • Max. Force of Double Levers：6000n

Base Info

  • Model NO.：DKZ-6000
  • Max. Force of Single Lever：1200n
  • Double Lever Force Ratio：50:1
  • Single Lever Force Ratio：10:1
  • Transport Package：Wooden Case
  • Origin：Zhejiang
  • HS Code：9024800000
  • Production Capacity：30 Sets,Month

Description

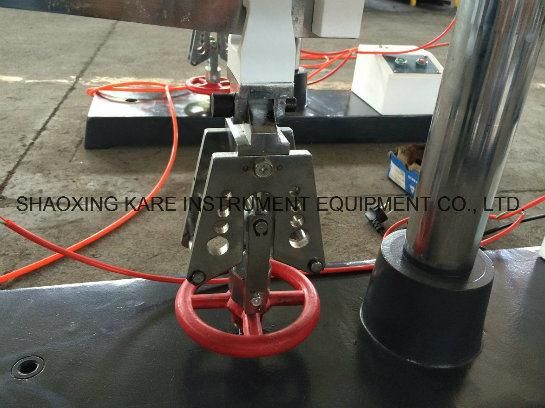

Single lever test force ratio (upper beam arm distance ratio) (max.)10:1Double lever test force ratio (lower beam arm distance ratio) (max.)50:1Max. force valueSingle lever1200NDouble lever6000NLoading speedSingle lever10N/sDouble lever50N/sMotor modelSD-75Flexure jawDiameter of loading roller and supporting roller distance10mmSupporting roller distance100mmBaffle plate span46mmMeasuring accuracy<±1%SensitivityLevering the lever when using double levers, load 1g at 500mm lever distance to the supporting point.Lever angle>1/50Outline dimension (L×W×H)(1200×250×760)mmNet weightabout 100Kg
