• Model NO.：XJU
• Control：Manual Control
• Weight：0-100Kg
• Power Source：AC220V
• Sample：Plastic,Rubber,Textiles
• Model：Izod
• Impact Speed：3.5m,S
• Impact Energy：1j-50j
• Transport Package：Standard Sea Shipping Case
• Trademark：Hensgrand or OEM
• Origin：Jinan, Shandong
• HS Code：9031809090
• Production Capacity：500 Sets,Month

Basic Info.

Model NO. XJU Control Manual Control Weight 0-100Kg Power Source AC220V Sample Plastic/Rubber/Textiles Model Izod Impact Speed 3.5m/S Impact Energy 1j-50j Transport Package Standard Sea Shipping Case Trademark Hensgrand or OEM Origin Jinan, Shandong HS Code 9031809090 Production Capacity 500 Sets/Month

Product Description

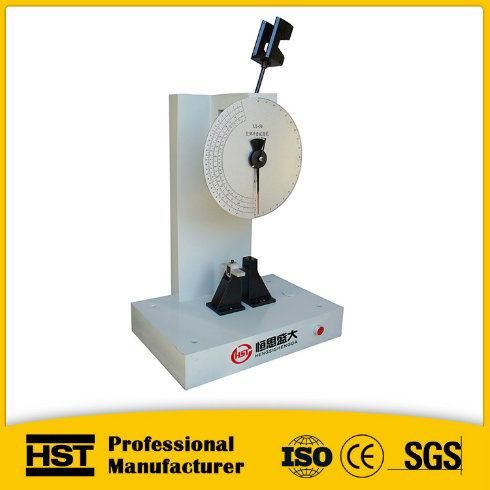

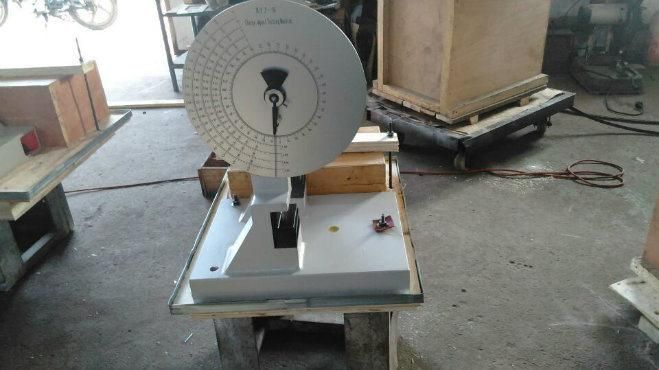

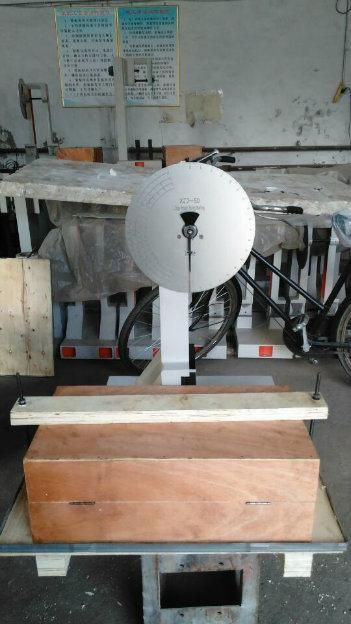

Izod Plastic Impact Testing Machine1.  Application

This series is mainly used in testing the nonmetal materials' impact toughness, such as horniness plastic, strong nylon, glass reinforced plastics, china, clay rock, anti-electric etc . The main technical parameters conform to the requirements of ISO179, ISO180, GB/T1043, GB/T1843, GB/T13525, etc.
2. Features
The index value of the dial plate: impact energy 1/200; the plate have the fixed dial plate and the digital plate.The outside of the dial plate is angle, the interlayer is simple-supported value, the inside  is cantilever value.
3. Specifications

Model	XJU-22
Impact speed	3.5 m/s
Impact energy	5.5 J, 11J, 22J
Distance between pendulum  center  and sample center	322mm
rising angle of the pendulum	160°
Round angle radius of striking edge	R=0.8±0.2mm
Distance between impact blade and jaw	22±0.2mm
Impact blade angle	75°± l°
Energy loss	5%
Temperature	15°C-35°C
Power	AC220V/50Hz
