• Model NO.：GD-R2026
• Temperature Control Accuracy：37.8+-0.1c
• Display Mode：Large Screen LCD
• Working Unit：Two Oxygen Bombs
• Application：Reid Vapor Pressure Apparatus
• Function：Reid Vapor Pressure Bath
• Transport Package：Wooden Case or Plywood
• Trademark：GOLD
• Origin：China
• HS Code：9031809090
• Production Capacity：100sets,Month

Basic Info.

Model NO. GD-R2026 Temperature Control Accuracy 37.8+-0.1c Display Mode Large Screen LCD Working Unit Two Oxygen Bombs Application Reid Vapor Pressure Apparatus Function Reid Vapor Pressure Bath Transport Package Wooden Case or Plywood Trademark GOLD Origin China HS Code 9031809090 Production Capacity 100sets/Month

Product Description

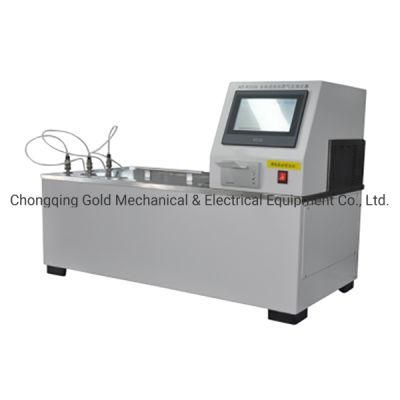

 ASTM D323 ASTM D5191 Fully Automatic Reid Vapor Pressure RVP Tester


Introduction:
The reid vapor pressure analyzer is mainly suitable for detecting the vapor pressure of gasoline, volatile crude oil and other volatile petroleum products; it is not suitable for detecting the vapor pressure of liquefied petroleum gas.


Main Features:
1. The reid vapor pressure apparatus adopts microcomputer control, the large LCD screen displays experimental data, and the instrument automatically discriminates the result.
2. The instrument is made of cold-rolled steel plate, and the surface is electrostatically sprayed, which has corrosion-resistant and easy-cleaning functions.
3. The welding of the instrument adopts the welding technology, no solder joints, beautiful appearance and generous appearance.
4. The reid vapor pressure bath adopts imported pressure transmitter, and the pressure display accuracy is high.
5. All stainless steel inner bath to prevent rust.
6. Imported quick connector, plug and play, no leakage, easy to operate.


Technical Parameters:
1. Applicable standards: GB/T8017, ASTM D323, ASTM D5191
2. Temperature control mode: imported PID digital display thermostat
3. Temperature control accuracy: 37.8 ± 0.1ºC
4. Oscillation mode: horizontal automatic oscillation, no manual operation
5. Working unit: two oxygen bombs
6. Pressure correction: external precision pressure regulator, deviation correction function inside the instrument.
7. Connection method: imported stainless steel quick connector connection, no leakage
8. Power consumption: 1.5KW
9. Display mode: large screen LCD
