Oil Lab Automatic Rapid Equilibrium Closed up Recc Flash Point Tester

Chongqing Gold Mechanical & Electrical Equipment Co., Ltd.
  • Apparatus：Rapid Equilibrium Closed Cup Flash Point Tester
  • Device：Flash Point Tester Uses Rapid Equilibrium Method
  • Function：Low Temperature Closed Cup Flash Point Tester
  • Flash Point Tester：Rapid Equilibrium Paint Flash Point Tester
  • Closed Cup Flash Point Tester：Rapid Equilibrium Closed up Flash Point Tester
  • Recc：Rapid Equilibrium Methods Closed Cup Flash Point T

Base Info

  • Model NO.：GD-5208D
  • ISO1523 ISO3679：Closed Cup Flash Point Tester for Colored Paint
  • Transport Package：Wooden Case
  • Trademark：GOLD
  • Origin：Chongqing of China
  • HS Code：9031809090
  • Production Capacity：100units,Month

Description

Basic Info.

Model NO. GD-5208D ISO1523 ISO3679 Closed Cup Flash Point Tester for Colored Paint Transport Package Wooden Case Trademark GOLD Origin Chongqing of China HS Code 9031809090 Production Capacity 100units/Month

Product Description

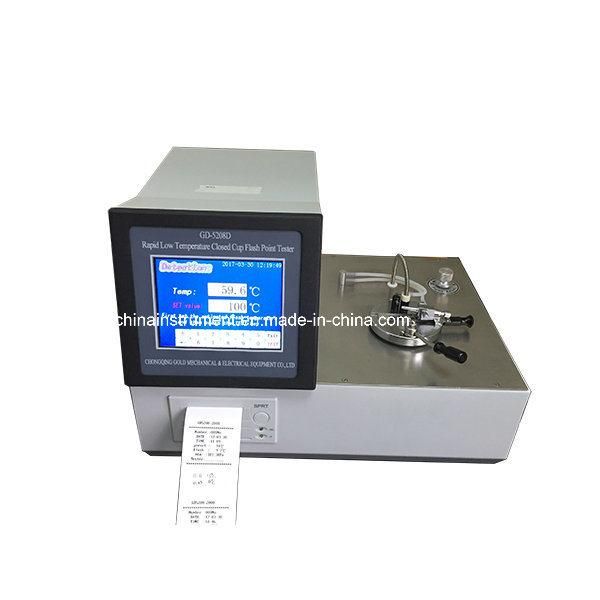

GD-5208D Rapid Equilibrium Closed Up Flash Point Tester


Oil Lab Automatic Rapid Equilibrium Closed up Recc Flash Point Tester


Introduction:
This instrument is designed and made as per GB/T 5208-2008 Determination of flash point - Rapid equilibrium closed cup method. It can meet the requirements of rapid determination for closed cup flash point of petroleum products in oil,chemical, varnish, paint, railway, aviation, electricity, commercial inspection and science research institution.
This instrument is specially suitable to determine different kinds of colored paints,oil paints, adhesives,solvents and petroleum products which the closed cup flash point is 0ºC~100ºC.The instrument is also correspond with ISO1523 and ISO3679.



Features:
1.Designed as per GB/T 5208-2008 Determination of flash point - Rapid equilibrium closed cup method. It can realize purpose of testing closed cup flash point rapidly and at low temperature.
2.The instrument adopts semiconductor refrigeration device and external water cooling device.The size is small and cooling rate is rapid.Easy to operate.
3.Test sample needed is less.2ml for each time(4ml for solid sample and semi-solid sample)
4.The determination procedure is automatically completed except ignition.Test results can be printed automatically.


Specifications:
1. Power supply: AC(220±10%)V, 50Hz
2. Flash point measuring range: 0ºC~100ºC
3. Precision of determination:
  Absolute difference value between two determinations is lower than 2ºC(same operator)

  Absolute difference value between two determinations is lower than 3ºC(different operator)

4. Temperature control precision: ±0.5ºC
5. Igniting device:Electric igniting gun
6. Cooling mode:Semiconductor(with cold water cycle at external connection)
7. Maximum power consumption:300W
8. Ambient temperature:5ºC~30ºC
9. Relative humidity:30%~80%
10. Dimension:370mm×280mm×280mm
