UV Aging Test Chamber for PV Module

Dongguan Hong Tu Instrument Co., Ltd.
  • Type：UV Aging Test Chamber
  • Accuracy Grade：1
  • Display：Digital
  • Control：Computer Control
  • Weight：500-1000Kg
  • Power Source：AC380V

Base Info

  • Model NO.：HTPV-25Y
  • Product Name：UV Aging Test Chamber
  • Application：PV Module Field
  • Satisfy Standard：IEC Standard
  • Light Source：UVA and UVB
  • UVA Wavelength：320-400nm
  • UVB Wavelength：280-320nm
  • UV Total Radiation Intensity：150W,M3
  • UV Life Time：1000 Hours
  • Chamber Materials：Stainless Steel
  • Power：380V
  • Transport Package：Export Wooden Case
  • Specification：According to IEC 61215 standard
  • Trademark：HOTOTECH
  • Origin：Dongguan Ctiy China
  • HS Code：9031809090
  • Production Capacity：10 Sets Per Month

Description

The MaterialsCan completely obstruct ultraviolet rays , tightness , good thermal insulation's high quality materialsUV irradiation area2000mm×2000mmTesting sample quantity2 PCSLamp lifeAbove 2000 hours Lamp brandGermany HolenSingle lamp UVA and UVB relative energy rateUVB approx occupy total energy 3%~10%Irradiation strengthWavelength 280nm~400nm's irradiation strength can reach about 200W/m2 , promise the test cycle reduce as far as possibleIrradiance uniformityBe better than ±15%Monitor waysReal-time monitor and show UVA and UVB strengthUVA wavelength320nm~400nmUVB wavelength280~320nmModule surfafce temperature60ºC±5ºCTemperature resolution0.1ºCOzonealmost no ozone is producedLight waysupper light, module test plane vertical light sourceControl ways Touch screen

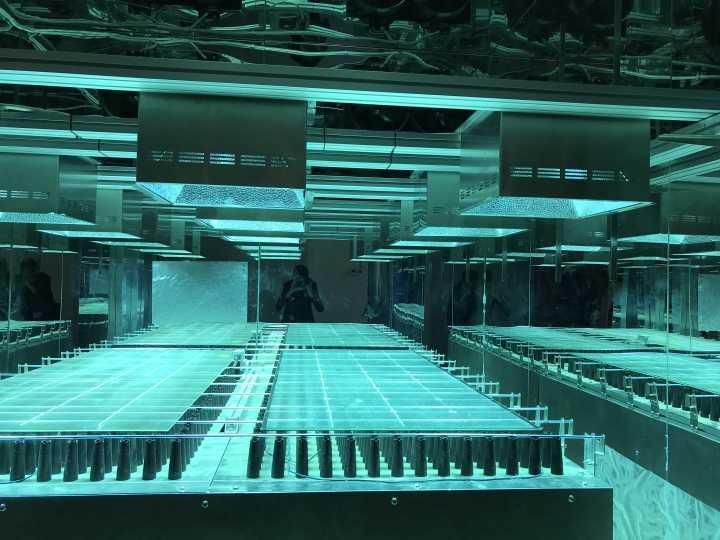

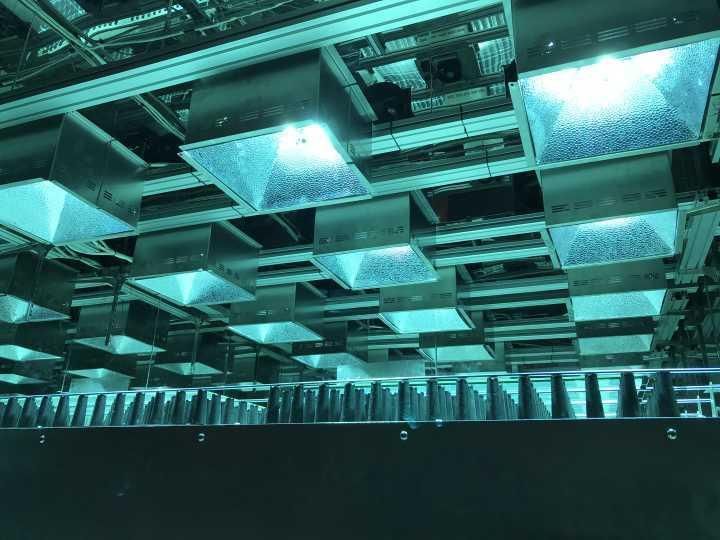

Testing chamber images show
UV Aging Test Chamber for PV Module
UV Aging Test Chamber for PV Module
UV Aging Test Chamber for PV Module
