UV Aging Tester for PV Module

Dongguan Hong Tu Instrument Co., Ltd.

Type：UV Aging Tester
Maxcapacity：Without
Accuracy Grade：0.5
Load Way：Without
Loading Method：Without
Display：Touch Screen

Base Info

Control：PLC Control
Weight：500-1000Kg
Power Source：AC380V
Standard：IEC 61215, IEC61646
The Maximum Test Module Size：2 Meter *1 Meter
Light Source Life Time：Approx 1000 Hours
UVA Wavelength：320nm~385nm
UVB Wavelength：280~320nm
Test Module Quantity：2 Pieces
Control Ways：Touch Screen
Software：PLC Program
Irradiance Uniformity：Be Better Than 15%
Warranty：One Year
Transport Package：Export Wooden Case
Specification：PLC control
Trademark：HOTOTECH
Origin：China
HS Code：9031809090
Production Capacity：100 Sets Per Month

Description

Use maerial can completely obstruct ultraviolet rays, tightness, good thermal insulation's high quality materialIrradiation area2000×2000mm Testing sample quantity2PCSLight source life2000 hours, Germany brand Holen Single lamp UVA and UVB relative energy rateUVB approx occupy total enery 3%~10%Irradiation strengthWavelength 280nm~385nm's irradiation strength can reach about 100W/m2,280nm~320nm≤1%, promise the test cycle reduce as far as possibleIrradiance uniformityBe better than±15%Monitor and show waysReal-time monitor and show UVA and UVB strengthUVA wavelength320~385nmUVB wavelength280~320nmModule surface temperature60ºC±5ºCTemperature resolution0.1ºCOzone Almost no ozone is producedLight waysupper light, module test plane vertical light sourceControl ways Touch screen Electricity380V 60HZ

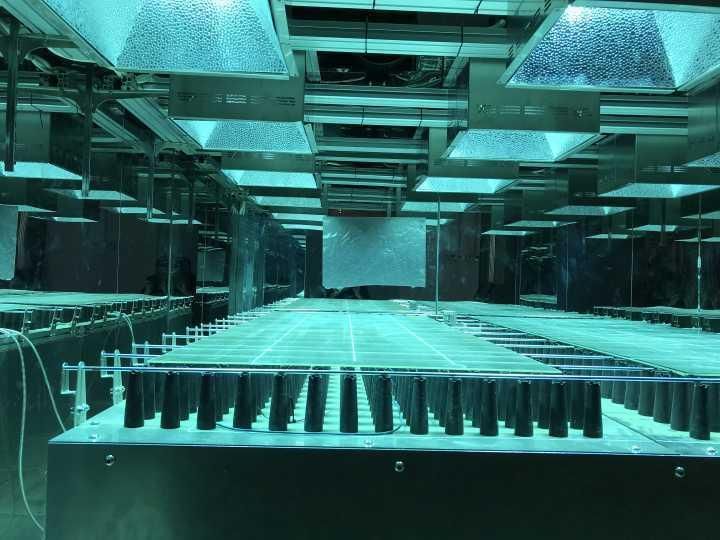

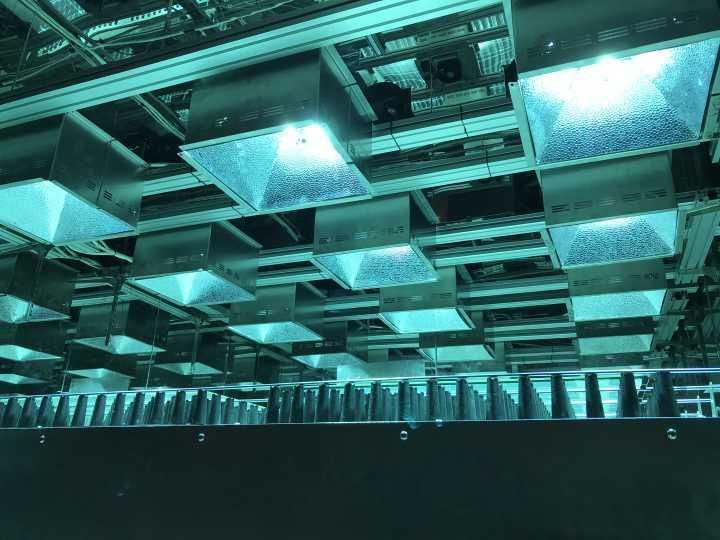

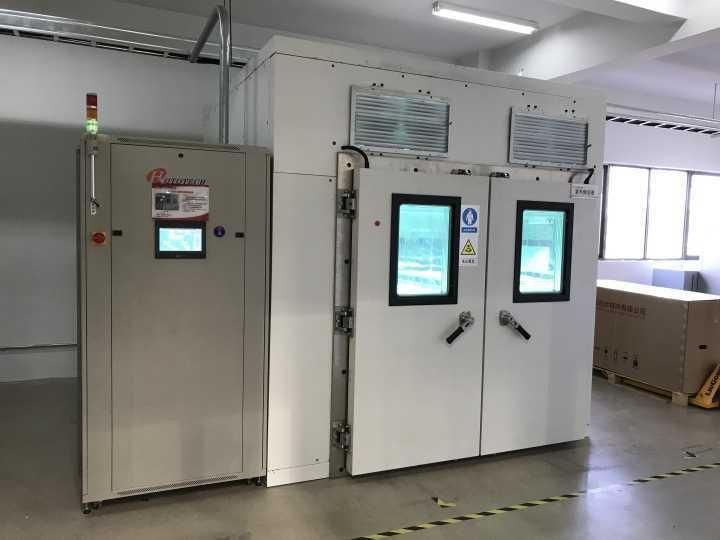

UV Aging Tester for PV Module's appearance and details image display
