AC Hipot Test Set Withstand Voltage Test System GDYD-31D 1kVA/30kVAC
HV Hipot Electric Co., Ltd.- Mass Scope of Workpiece：<900kg
- Type：Withstand Voltage Test Set
- Maxcapacity：>1000KN
- Accuracy Grade：1
- Load Way：Electronic Load
- Loading Method：Dynamic Load
Base Info
- Model NO.：GDYD-31D
- Display：Digital
- Control：Manual Control
- Weight：100-500Kg
- Power Source：AC220V
- Oil Cylinder Position：Under
- Input：AC220V
- Frequency：50Hz
- Output：0-30kV, 33mA AC RMS
- Rating：100%Rated-1minute , 50%-continuous
- Capacity：1kVA
- Metering：Digital display, kV meter: 0-30kV AC, mA meter:0-3
- Product name：AC Hipot Test Set Withstand Voltage Test System
- Transport Package：Wooden Case
- Specification：ISO, SGS
- Trademark：HV Hipot
- Origin：Wuhan China
- HS Code：9030332000
- Production Capacity：5000set,Year
Description
Basic Info.
Model NO. GDYD-31D Display Digital Control Manual Control Weight 100-500Kg Power Source AC220V Oil Cylinder Position Under Input AC220V Frequency 50Hz Output 0-30kV, 33mA AC RMS Rating 100%Rated-1minute , 50%-continuous Capacity 1kVA Metering Digital display, kV meter: 0-30kV AC, mA meter:0-3 Product name AC Hipot Test Set Withstand Voltage Test System Transport Package Wooden Case Specification ISO, SGS Trademark HV Hipot Origin Wuhan China HS Code 9030332000 Production Capacity 5000set/YearProduct Description

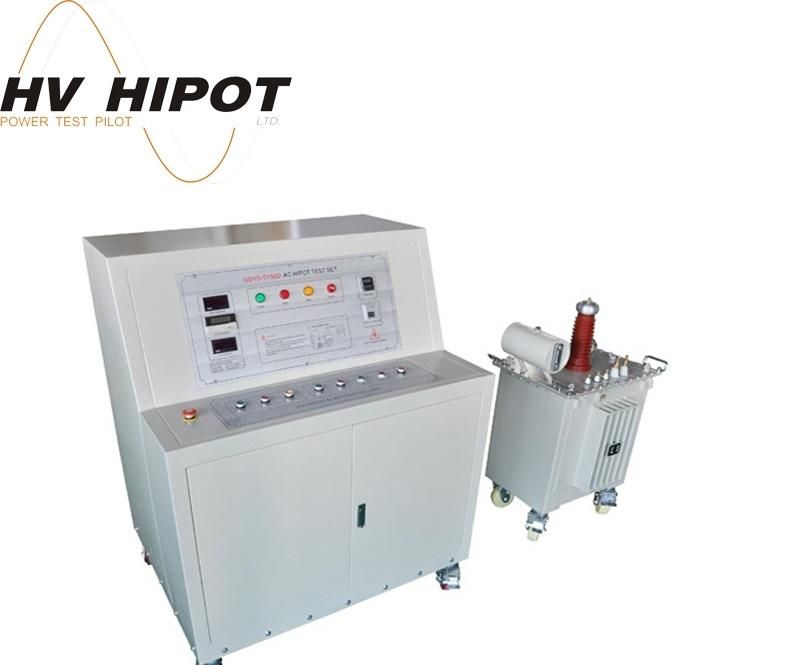

AC Hipot Test Set Withstand Voltage Test System
Technical Specifications
| Input | AC220V ± 10% |
| Frequency | 50Hz ± 1 |
| Output | 0-30kV, 33mA AC RMS |
| Rating | 100%Rated-1minute , 50%-continuous |
| Capacity | 1kVA |
| Voltage accuracy | ≤ 1.5% (F.S) |
| Current Accuracy | ≤ 1.5% (F.S) |
| Timing range | 0-99H |
| Metering | Digital display, kV meter: 0-30kV AC, mA meter:0-33mA AC, A meter:0-5A AC |
| Humidity | 85% RH |
| Environmental temperature | -20ºC--50ºC |
| Weight | About 60kg |
Accessories
Main instrument
Discharge rod
Power cord
HV output cable
Ground cable
User's guide
Factory test report
