• Model NO.：GD-6536A
• Trademark：GOLD
• Origin：China
• Production Capacity：200units,Month

1.Power supply:  AC(220±10%)V, 50Hz2.Heating power:

1300W×2, continuously

adjustable.

3.Receiving cylinder:  100ml, division value 1ml.4.Distillation flask:   125ml,meet the requirements of GB/T 6536 and ASTM D865.Thermometer:   (-2~300)ºC and (-2~400)ºC, division value 1ºC6.Flask support board:   SiC, bore diameter φ32mm, φ38mm, φ50mm.7.Temperature controller:

1) Range: (Ambient +10)

ºC~60ºC
 2) Accuracy: ±0.5ºC
 3) Display: LED

8.Ambient temperature: ≤35ºC9.Relative humidity: ≤85%10.Maximum power consumption: 4000W11.Dimension:760mm×520mm×500mm

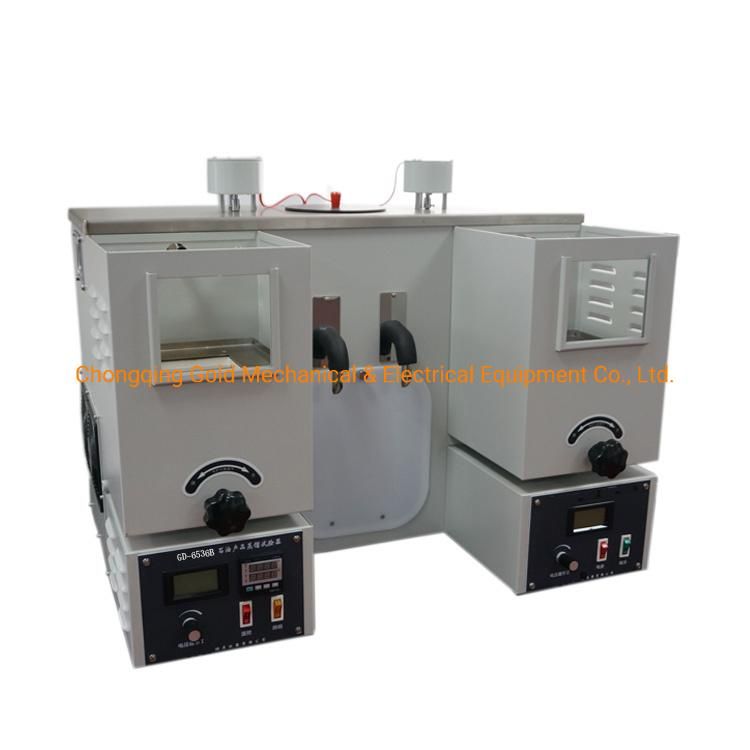

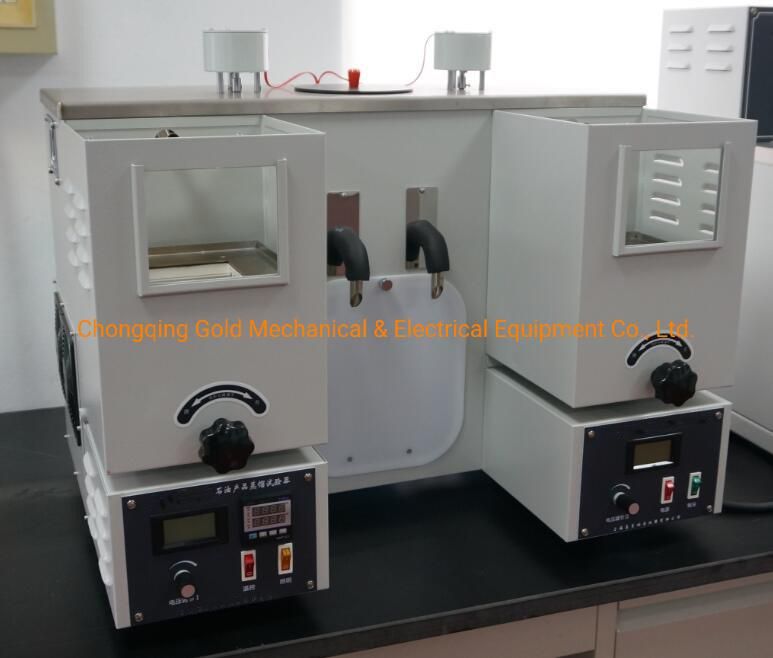

I. Main technical features



1.The instrument adopts double units working mode, can do test for one sample as well as two samples which having

the same specification or different specifications.It highly improves the work efficiency.

2.It adopts two groups of independent digital temperature controller, heater, electric stirrer to constitute two constant

temperature baths. Each bath temperature can be adjusted and controlled independently.The temperature in the bath is

uniform,can fully meet the requirements of test.

3.It adopts special heating furnace to ensure the safety of test. Heating power can be continuously adjusted to meet the

 requirements of test.



Distillation equipment oil Select list

NameNormal PressureAutomaticItemGD-255GD-6536GD-6536AGD-6536BGD-6536B-1GD-6536CGD-6536DStandardASTM D86ASTM D86ASTM D86ASTM D86ASTM D86ASTM D86

ASTM D86

ASTM D850

ASTM D1087

Features

Straight Pipe,

economic

Basic model,diesel distillation

range

Double tubes,diesel

Double tubes,

gasoline and diesel

Double tubes,gasoline and dieselSingle tube,gasoline and dieselFull automaticApplicationCrude oil(exclude high viscosity),fuel oil

Fuel oil,naphtha,

diesel,

distillate fuel

Fuel oil,naphtha,diesel,distillate

fuel,gasoline,volatile organic liquid,light oil

Nature gasoline,motor

gasoline,aviation gasoline,jet fuel,solvent oil,naphtha,kerosene,

diesel,distillate fuel

sample number1211

Tempature

control

Noyes

Cooling

Medium

Distilled water(southen Area).engine atifreeze fluid(Northen area),preventing freezing to protect equipmentsGlycol/water mixture

Meaduring

cylinder bath temperature control

NoYesNoYes

Compressor

Refrigeration

NoyesFurnace Power1000W1300W200W1300W2500W

Temperature

Disply

ThermometerLCD displyPressureNormal pressurePressure Testing Range(mmHg)NoExternal DeviceNoFire Extinguish

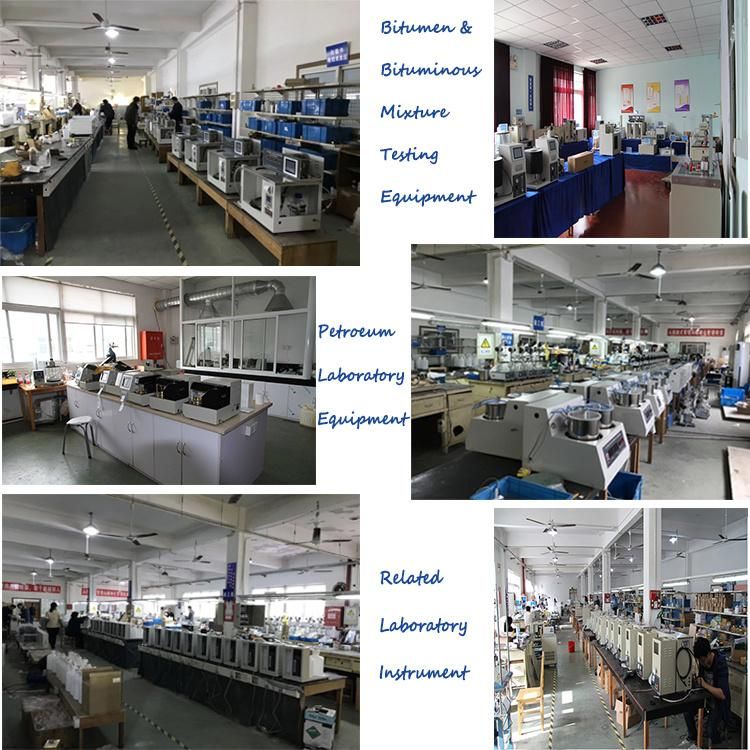

Chongqing Gold Mechanical&Electrical Equipment Co.,Ltd is a professional manufacturer
