• Model NO.：GW-079C
• Accuracy Grade：1
• Load Way：Electronic Load
• Loading Method：Static Load
• Display：Digital
• Control：LCD Control
• Weight：100-500Kg
• Power Source：AC220V
• Packaging：Wooden Case
• Export Markets：Global
• Model No：Gw-079c
• Measuring Range：Hr
• Standard：ISO, ASTM, GB,T, Bsen
• Calibrating Method：Standard Hardness Test Blocks
• Testing Range：4-450hbs, 4-650hbw
• Identification：CE,RoHS,ISO,UL,SGS
• Pressure From The Head Center to Plane：180mm
• Maximum Height of The Specimen：240mm
• Transport Package：Wooden Case
• Specification：630*250*1000mm
• Trademark：Great Win
• Origin：China
• HS Code：90241020
• Production Capacity：500 Sets,Year

Basic Info.

Model NO. GW-079C Accuracy Grade 1 Load Way Electronic Load Loading Method Static Load Display Digital Control LCD Control Weight 100-500Kg Power Source AC220V Packaging Wooden Case Export Markets Global Model No Gw-079c Measuring Range Hr Standard ISO, ASTM, GB/T, Bsen Calibrating Method Standard Hardness Test Blocks Testing Range 4-450hbs, 4-650hbw Identification CE/RoHS/ISO/UL/SGS Pressure From The Head Center to Plane 180mm Maximum Height of The Specimen 240mm Transport Package Wooden Case Specification 630*250*1000mm Trademark Great Win Origin China HS Code 90241020 Production Capacity 500 Sets/Year

Product Description

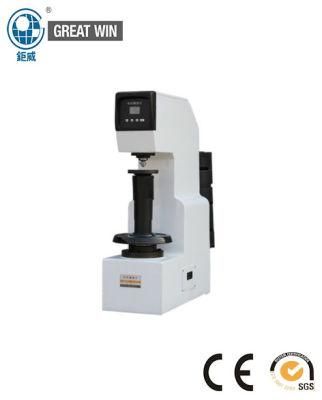

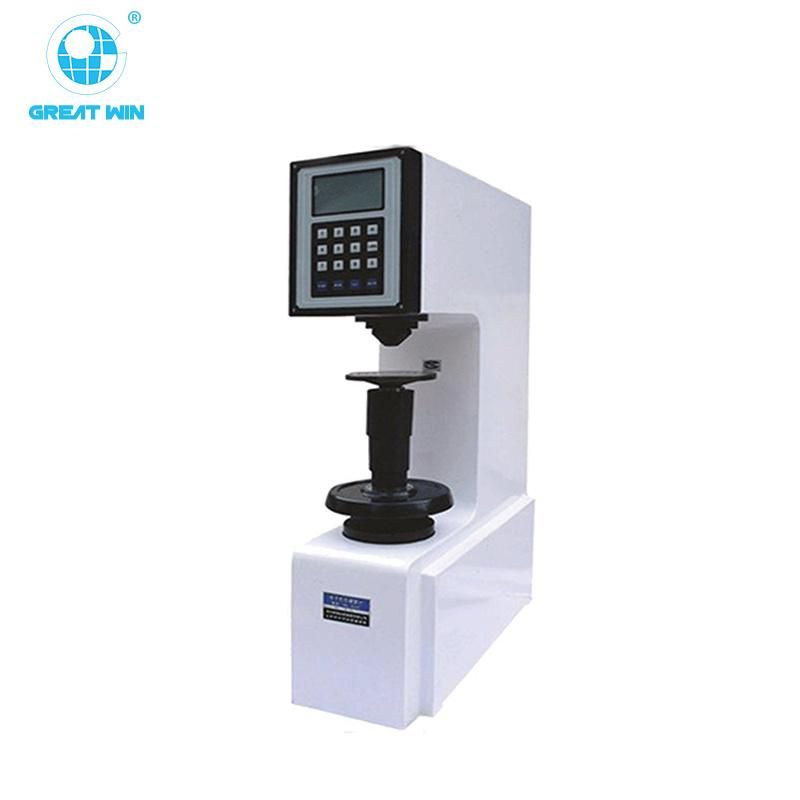

Digital Brinell Hardness Tester (GW-079C)   Equipment discription:    GW-079C  Brinell hardness tester adopts electronic reversing switch, which has the characteristics of high test precision, wide measuring range, automatic loading, automatic unloading and so on.
    This hardness tester is used to measure the Brinell hardness of steel, cast iron, nonferrous metal and soft bearing alloys, etc., and It is suitable for all kinds of laboratory such as metal metallurgy factories, machinery manufacturing plants, industrial laboratories and professional schools.

Technical Specifications:

Model	GW-079C
Brinell scale	HBW2.5/62.5,HBW2.5/187.5,HBW5/125,HBW5/750,HBW10/100,HBW10/250, HBW10/500,HBW10/1000,HBW10/1500,HBW10/3000
Test force	62.5kgf(612.9N),100kgf (980.7N),125kgf (1226N), 187.5kgf (1839N),250kgf (2452N),500kgf (4903N) 750kgf (7355N),1000kgf (8907N),1500kgf (14710N),3000kgf (29420N)
ball indenter diameter	Φ2.5,Φ5,Φ10 mm
Minimum measuring unit	0.00125mm
Hardness data read	Digital LCD
Total amplification times	20X
Load method	Automatic(load, dwell, unload)
Dwell time	12,30,60S
Specimen maximum height allowed	230mm
Throat depth	120mm
Instrument size and weight	700×268×842mm (L×W×H)     220kg
Power supply	AC220V + 5%, 50~60 Hz
Executive standard	GB/T231.2 National standard   ASTM E10  ISO6506 JJG150 inspection rules

Standard Accessories:1.Large flat test bench :1 set
2.Small flat test bench:1 set
3."V" test bench: 1set

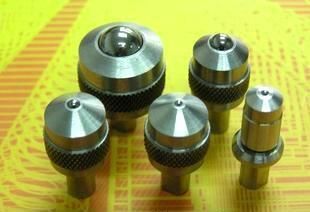

4. harden alloy indenter ; Φ2.5,Φ5m,Φ10mm each one set

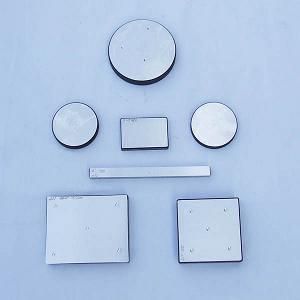

5.Standard hardness block: 2 sets
6.20X digital measuring eyepiece ;1 set
7.safety fuse; power cable ; accessory box;  manual instruction, certificate of quality ;



What about the product quality?
For our products, each instrument must be carried out 100% quality calibration and test when delivery goods. With CE certificate, we are very confident in our products, and we will pack them with safety wooden case to protect the machine when transport oversea.

What about usage of the machine?
We will also give your professional guidance(Product operating manual and video), each products comes with a USB flash drive which have all the details.

What about warranty?
Guarantee one years( if the parts damage within one year, we can replace the part for free)
If customer need any technical support, we can help them solve their problem through email, video meeting. We also can provide door to door service, but customer need to bear the travel fees.

What about standards support?
We are strictly following different international standards such as EN, ISO, ASTM, AATC, JIS, GB ect, and had been recognized by SATRA, CSA international standard agency.
