• Model NO.：STRLN-1
• Accuracy Grade：1
• Load Way：No
• Loading Method：No
• Display：Needle
• Control：Digital Display
• Weight：200kg
• Power Source：AC220V
• Oil Cylinder Position：No
• Product Name：Emulsified Asphalt Cold Recycling Cohesion Meter
• Application：Test The Commuter Time of Asphalt Emulsion Cold Re
• Principle：Applies The Principle of Lever Loading
• Apart From The Special Matching Tools：Is Also Configured with 8kg Dia1.5mm Diameter
• Features：Equipped with Artificial Marble Top Working Bench
• Transport Package：Wooden Case
• Specification：1 CBM
• Trademark：SHTG
• Origin：China
• HS Code：9031809090
• Production Capacity：100PCS,Month

Basic Info.

Model NO. STRLN-1 Accuracy Grade 1 Load Way No Loading Method No Display Needle Control Digital Display Weight 200kg Power Source AC220V Oil Cylinder Position No Product Name Emulsified Asphalt Cold Recycling Cohesion Meter Application Test The Commuter Time of Asphalt Emulsion Cold Re Principle Applies The Principle of Lever Loading Apart From The Special Matching Tools Is Also Configured with 8kg Dia1.5mm Diameter Features Equipped with Artificial Marble Top Working Bench Transport Package Wooden Case Specification 1 CBM Trademark SHTG Origin China HS Code 9031809090 Production Capacity 100PCS/Month

Product Description

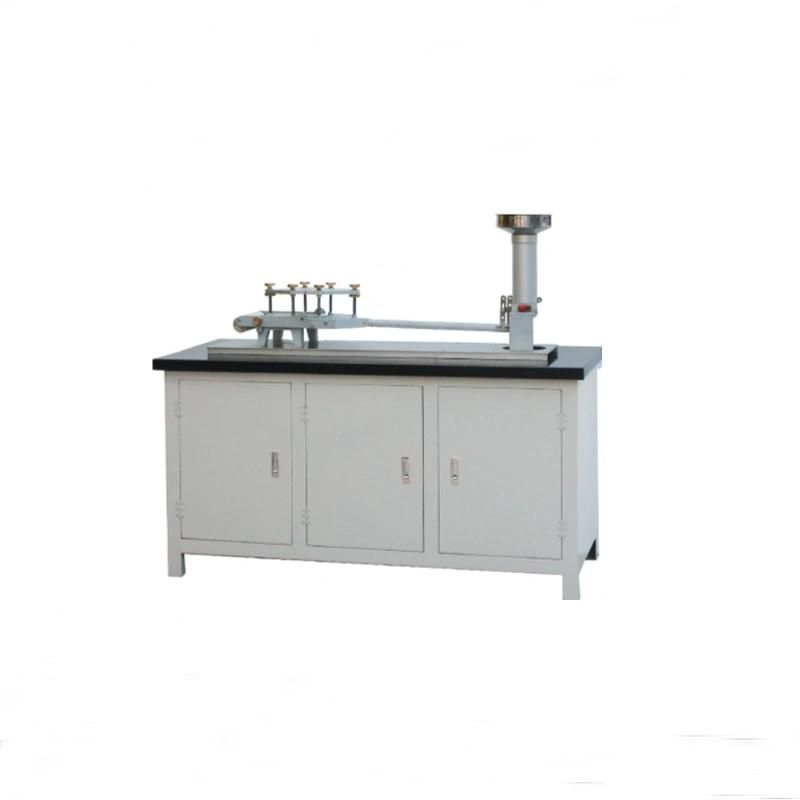

STRLN-1 Emulsified Asphalt cold recycling Cohesion Meter

Parameters.


Product name	STRLN-1 Emulsified Asphalt cold recycling Cohesion Meter
Application	Test the commuter time of asphalt emulsion cold recycling during the initial open traffic period
Principle	This instrument applies the principle of lever loading, makes steel ball drop into volume barrel at a constant speed by regulating the size of feed throats of steel ball in order to constantly load the testing component (sample) until it will be broken insider. And it will shut the feed throat of bear ball and stop loading automatically. Then we will know the load value, namely cohesion power, by weighing the steel ball in the volume barrel, and get cohesion of the sample with formula.
Apart from the special matching tools	this instrument is also configured with 8kg Φ1.5mm diameter steel balls.
Features	equipped with artificial marble top working bench
