• Model NO.：WEW-1000D
• Loading Method：Static Load
• Display：Digital
• Control：Manual Control
• Weight：1000-2000Kg
• Power Source：AC380V
• Oil Cylinder Position：Under
• Application：Steel Rebar, Tube, Metal, Copper, etc
• Capacity：600kn
• Test Range：2%~100% (20kn~1000kn)
• Color：White, Blue or Customized
• Usage：Tensile, Compression, Bending, Shear, Peel, etc
• Certificate：Ce ISO
• Standard：Astmd ISO
• Protection：Overload Over Cureent, Protection Net
• Warranty：12 Months
• Max Stroke：250mm
• Transport Package：Standard Exporting Plywood Case with Free Fumigati
• Specification：1060*890*2260mm
• Trademark：HST
• Origin：China
• HS Code：9031809090
• Production Capacity：300 Set,Month

WEW-600DWEW-1000DMax load (kN)3006001000Structure6 columnControl wayloading process manual control,computer automatic data dealingLoad accuracy≤±1%   or  ≤± 0.5%Load range2%-100%FS  or  0.4%-100%FSLoad resolution1/300000Deformation Measurement Range2%~100%FSDeformation accuracy≤±1%/± 0.5%Displacement resolution0.01mmDisplacement error≤±0.5%Max.piston stroke250mmMax. tension test space600 mm500 mm500mmMax compression test space750 mm650 mm650mmOil cylinder moving speed140 mm/min90 mm/min50 mm/minCrosshead moving speed200mm/min150mm/min120mm/minEffective space between columns420mm475mm525mmRound specimen clamping rangeΦ10-Φ32mmΦ13-Φ40mmΦ13-Φ40mmFlat specimen clamping range0-15mmClamping methodHydraulic clampClamp height70mm90mm90mmClamping width75mm80mm80mmCompression plate sizeφ160mmBending roller distance450mmWidth of bending rollers120mmPower supply3-phase,AC380V, 50Hz(can be customized)

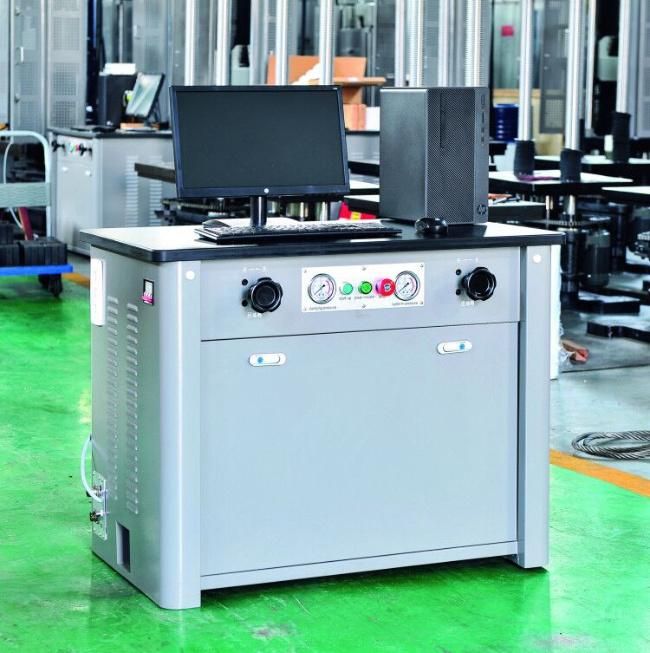

Oil Source control cabinet:

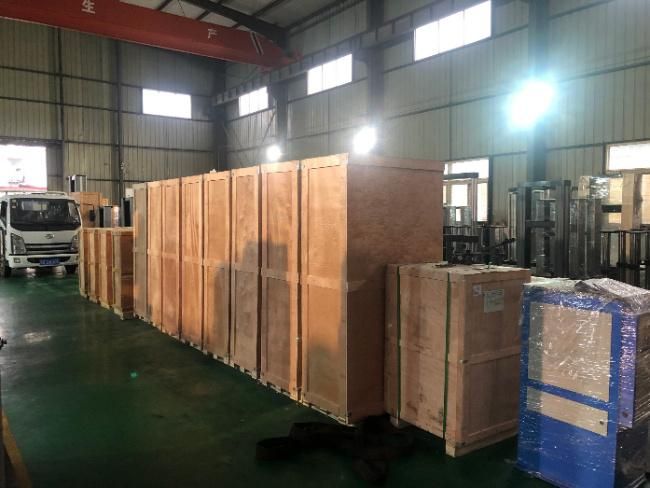

Package & Transportation :

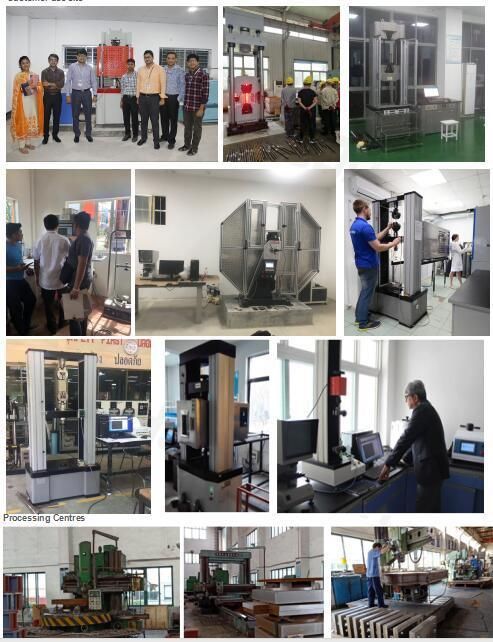

Our customer feedback:

Exhibition site:

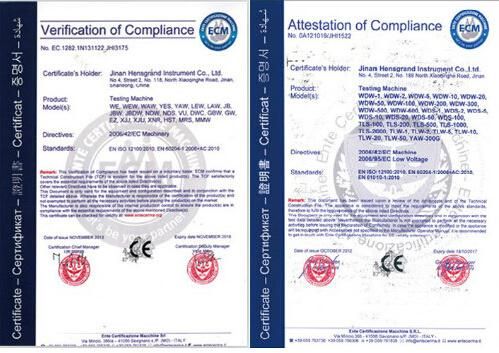

CE Certificate:

Company information
