• Model NO.：AS-DT-150
• Max. Sample Dimension：W1000xh800xd1000mm
• Height of Drop：300~1500mm
• 300~1500mm：+,-2%
• Standard：ISO2248, JIS Z0202-87
• Application：Package
• Sample Weight：100 Kg
• Transport Package：Wooden Case
• Specification：CE Certified
• Trademark：ASLi
• Origin：Guangdong, China
• HS Code：8514109000
• Production Capacity：50 Sets,Month

Basic Info.

Model NO. AS-DT-150 Max. Sample Dimension W1000xh800xd1000mm Height of Drop 300~1500mm 300~1500mm +/-2% Standard ISO2248, JIS Z0202-87 Application Package Sample Weight 100 Kg Transport Package Wooden Case Specification CE Certified Trademark ASLi Origin Guangdong, China HS Code 8514109000 Production Capacity 50 Sets/Month

Product Description

Small Packaging Box Drop Tester for Face Edge Angle Drop Testing  for Box Bucket Packaging Electronic

Product DescriptionSmall Packaging Box Drop Tester is designed to test the impact strength and damage of product packaged during transportation and handling process. During dropping, the carrier will rotate to allow the packed products to fall freely. lt can test the faces, edges and corners of the product, with small vibration, and stable and reliable operation.

Quality carton box drop test machine is used for packaged products in simulating different edges, corners, surface at different heights and fall to the ground situation, then assess the damage to the product and its components. It can withstand the fall height and impact-resistant strength.


Model	AS-DT-150
Max. Weight of Test Samples (Kg)	100
Height of Drop (mm)	300~1500
Max. Dimension of Test Sample WxHxD (mm)	1000x800x1000
Falling Floor Size WxHxD (mm)	1700x20x1200
Drop Method	Face, edge, angle
Test Bench External Dimension WxHxD (mm)	1700x2300x1200
Weight (Kg)	700



Drop Test Equipment Feature

1. Advanced structure ensure that bracket and specimen separate freely and specimen drop freely through bracket rapid downward motion then rotation movement. It delivers perfect test for specimen side, edge and corner.
2. It uses electric reset, electronically controlling falling, electric lifting, which makes it is easy to operate.
3. High Accuracy, direct display
4. It is steady when it is dropping and lifting

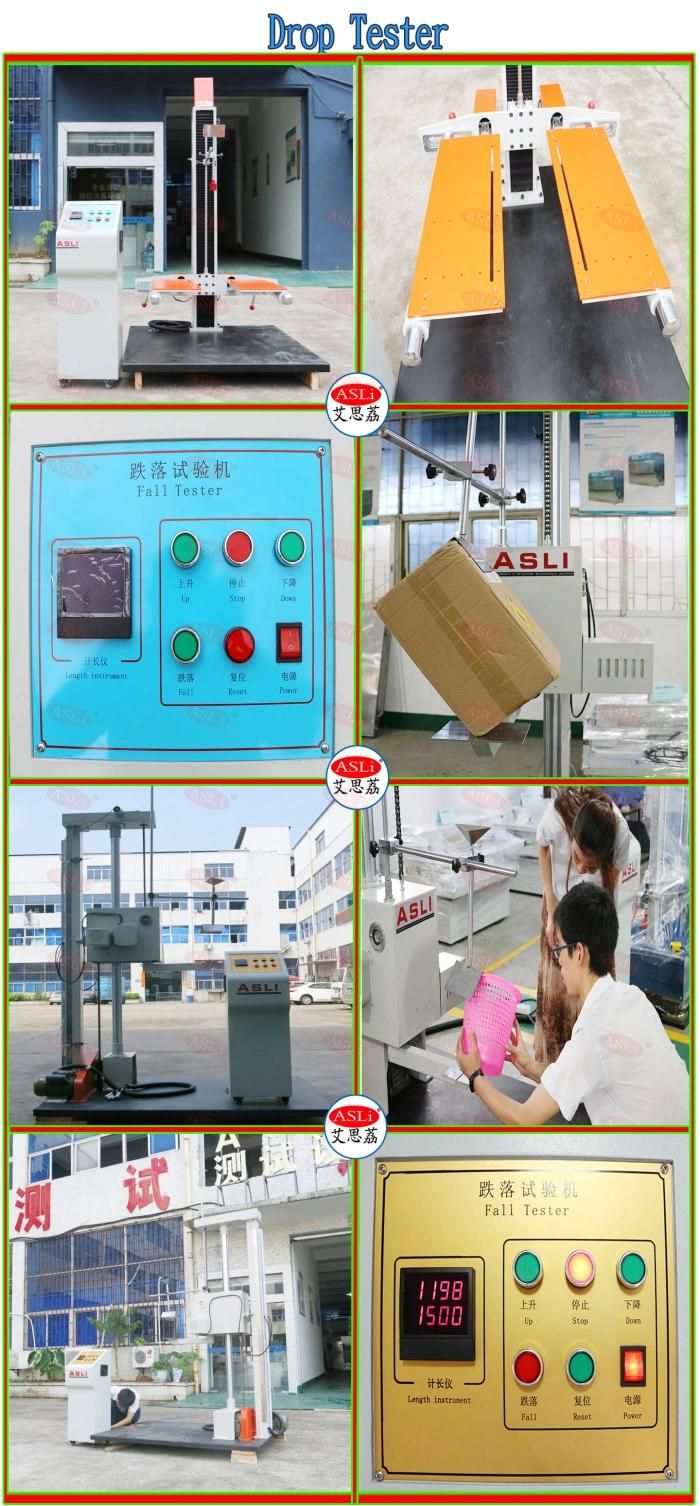

 Products Pictures
 Company Profile We are a long history testing equipment manufacturer, in the past 28 years, we devoted to simulation environmental testing equipment and Mechanical vibration and shock testing machine. Small Packaging Box Drop Tester for Face Edge Angle Drop Testing is our star products , and we had obtained the CE certification for this machine .  Our Advantages1.Professional technology support.
