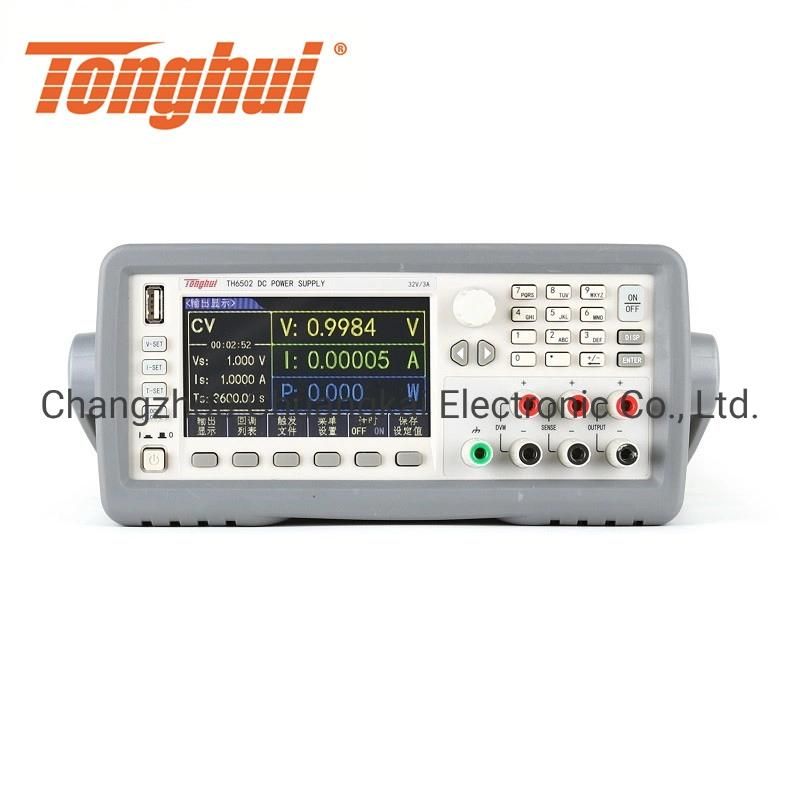

Th6502 Single Channel 32V/3A/96W Programmable Linear DC Power Supply
Changzhou Chuangkai Electronic Co., Ltd.- After-sales Service：Lifelong
- Warranty：1 Year
- Feature：Low Ripple and Low Noise
- Dimension (mm)：235(W) X 111(H) X440(D)

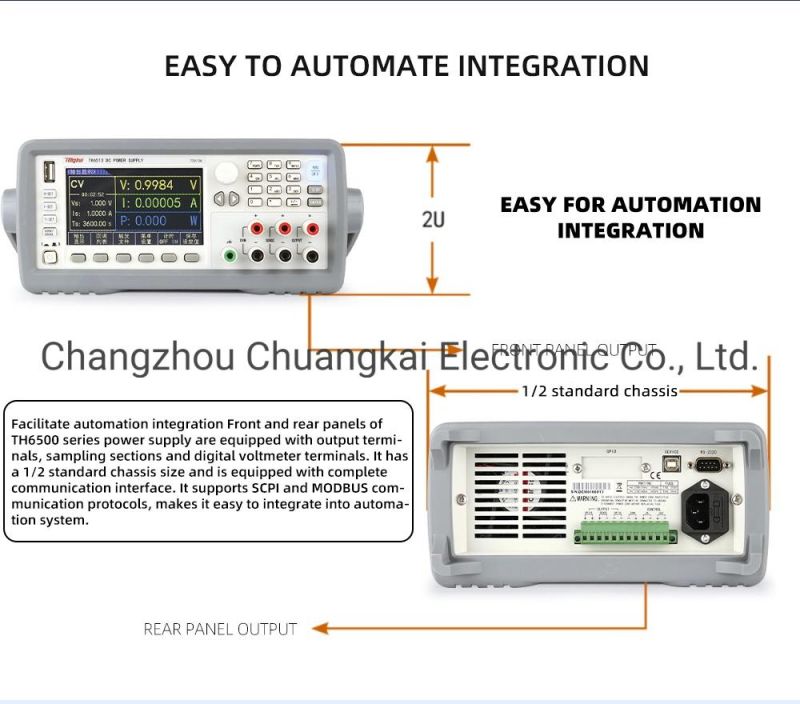

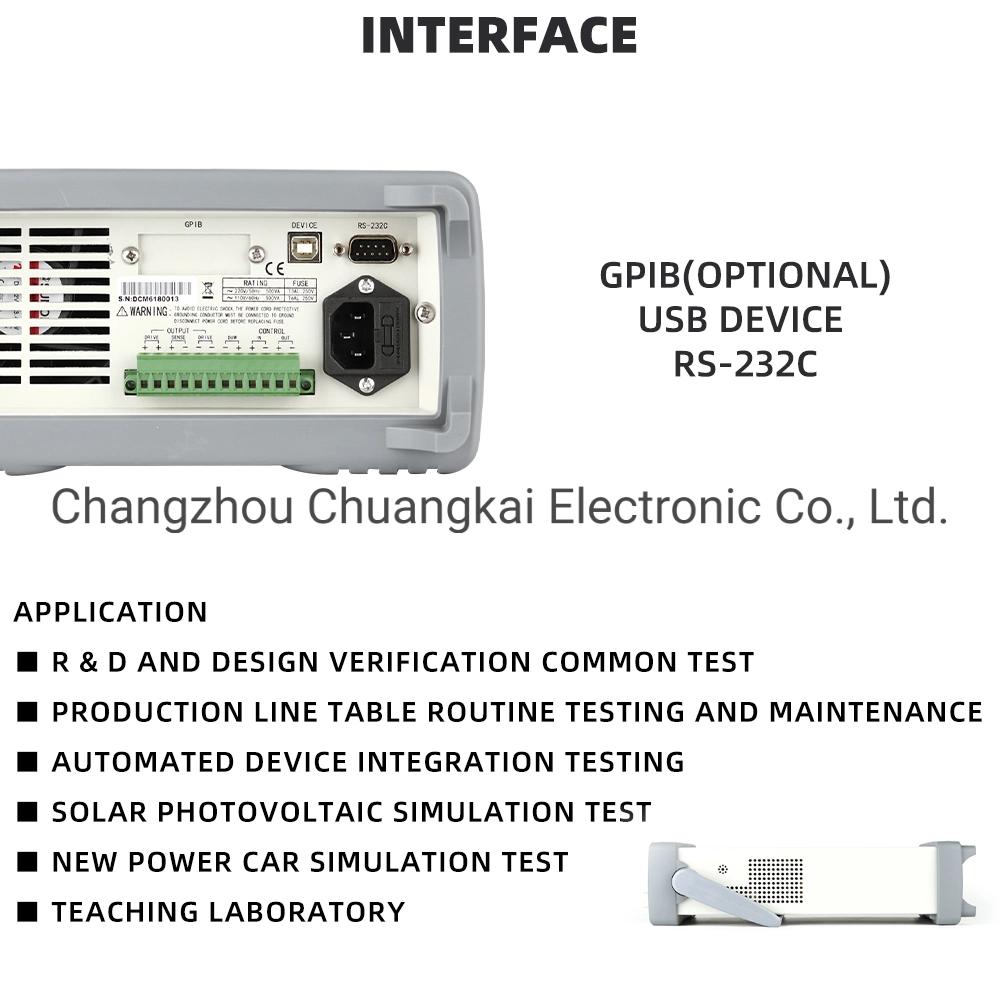

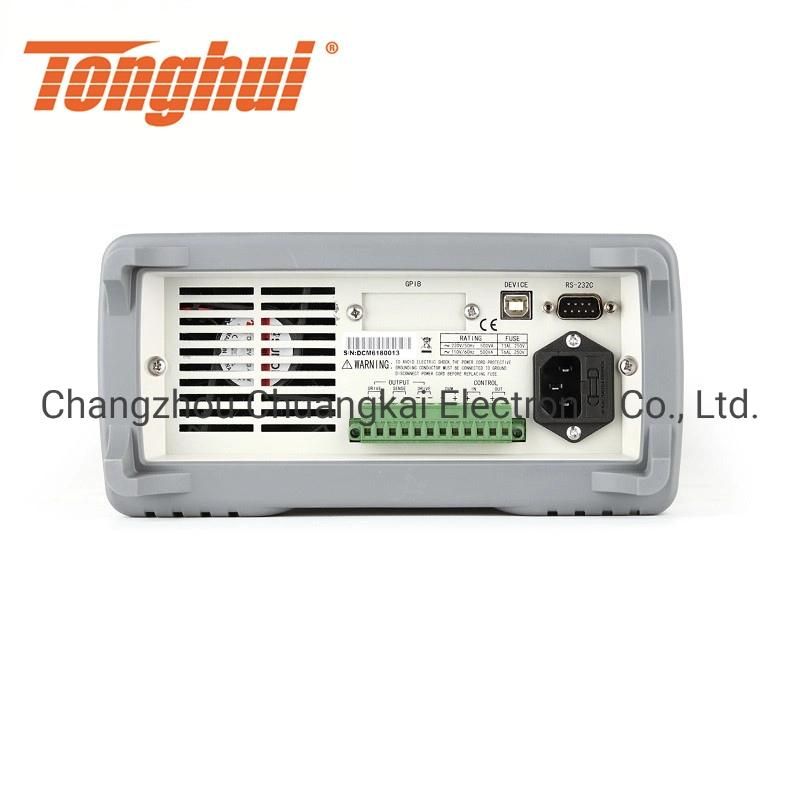

- Interface：RS232, USB Host, USB Device, Gpib (Optional)
- Display：24-Bit Color 4.3-Inch Color LCD Display
Base Info
- Model NO.：TH6502
- Application：R & D and Design Verification Common Test
- Product Name：Th6502 Single Channel 32V,3A,96W Programmable
- Transport Package：Carton
- Specification：59x36x25cm
- Trademark：CKT
- Origin：China
- HS Code：9030339000
- Production Capacity：3000 Sets Per Month
Description

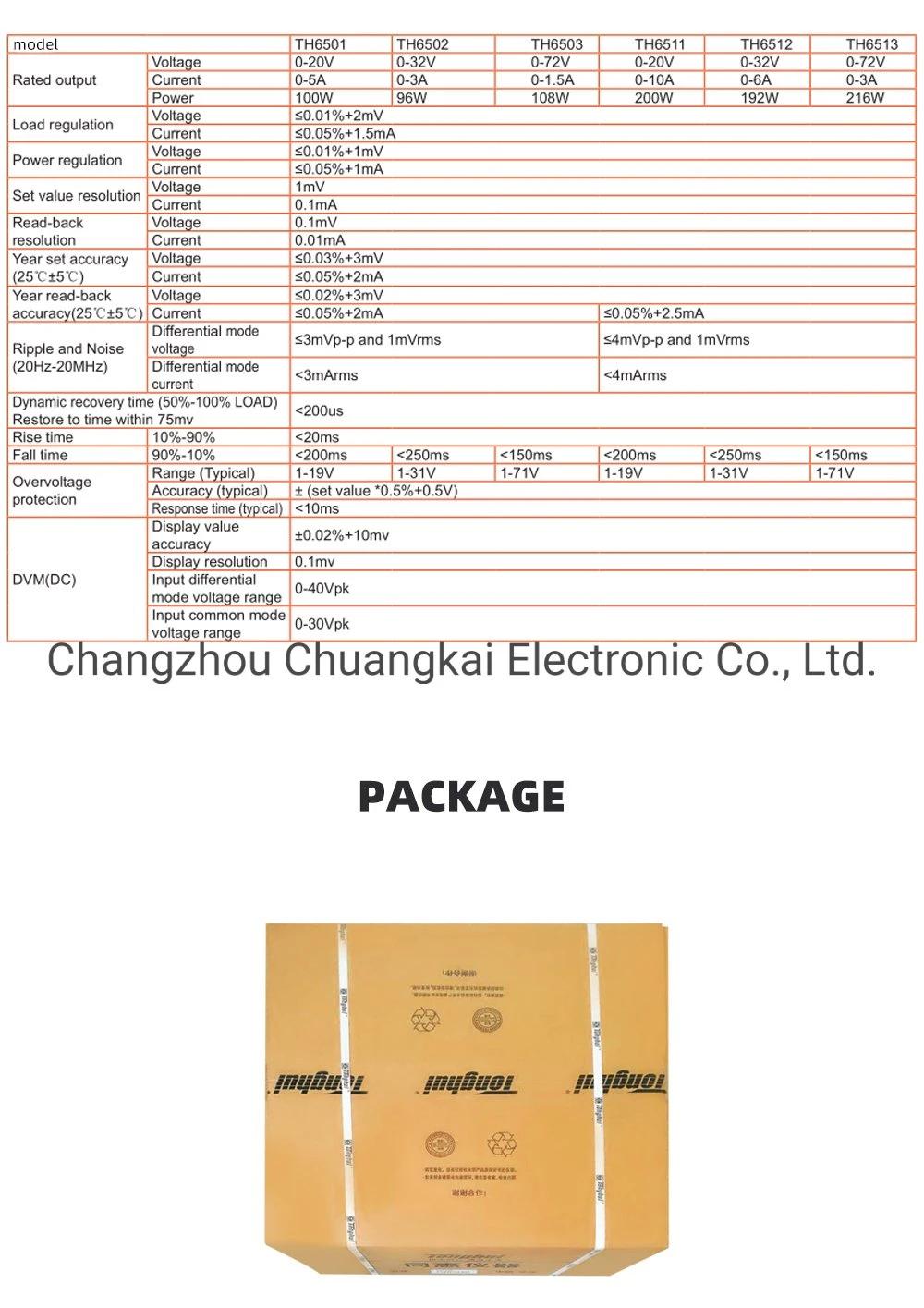

Model Company Profile https://ckt2017.en.made-in-china.com/contact-info.htmlTH6501 TH6502 TH6503 TH6511 TH6512 TH6513 Rated Output Voltage 0-20V 0-32V 0-72V 0-20V 0-32V 0-72V Current 0-5A 0-3A 0-1.5A 0-10A 0-6A 0-3A Power 100W 96W 108W 200W 192W 216W Load Regulation Voltage ≤0.01%+2mV Current ≤0.05%+1.5mA Power Regulation Voltage ≤0.01%+1mV Current ≤0.05%+1mA Set Value Resolution Voltage 1mV Current 0.1mA Read-back Resolution Voltage 0.1mV Current 0.01mA Year Set Accuracy (25ºC±5ºC) Voltage ≤0.03%+3mV Current ≤0.05%+2mA Year Read-back Accuracy(25ºC±5ºC) Voltage ≤0.02%+3mV Current ≤0.05%+2mA ≤0.05%+2.5mA Ripple and Noise(20Hz-20MHz) Differential Mode Voltage ≤3mVp-p and 1mVrms ≤4mVp-p and 1mVrms Differential Mode Current <3mArms <4mArms Dynamic Recovery Time (50%-100% LOAD)Restore Time within 75mv <200us Rise Time 10%-90% <20ms Fall Time 90%-10% <200ms <250ms <150ms <200ms <250ms <150ms Overvoltage Protection Range (Typical) 1-19V 1-31V 1-71V 1-19V 1-31V 1-71V Accuracy (typical) ± (set value *0.5%+0.5V) Response Time (typical) <10ms DVM(DC) Display Value Accuracy ±0.02%+10mv Display Resolution 0.1mv Input Differential Mode Voltage Range 0-40Vpk Input Common Mode Voltage Range 0-30Vpk
Packaging & Shipping
Chuangkai Electronic Co., Ltd is leading company specialized in producing, developing & selling various types of measuring instruments and testing equipment, such as temperature data logger, LCR meter, DC resistance tester (micro ohm meter), digital power meter, power supply, transformer tester, battery tester, programmable DC electronic load, charger, temperature controller, tachometer, high voltage signal-amplifier, power amplifier, etc.
FAQ:
Q. How is your company's product after-sales service system?
A. The product warranty period is 12 months, we can provide lifetime maintenance. We have professional pre-sales and after-sales teams that can respond to you within 24 hours to resolve technical issues. We provide one-to-one after-sales service.
Q: Can you customize it?
A: Yes, we accept customization according to customer's specific requirements.
Q. How long is your lead time? If I want to customize instruments, how long will it take?
A. When order quantity is 1-10 units, we have ready stock goods, we can ship out within 3-5 working days after receipt of deposit; products required new production of common materials, usually the lead time is about 10-15 days; products requiring new production of special and rare materials, usually the lead time is about 20-30 days.
Q. What payment method do you accept?
A. Our company accept payment method of T/T (bank transfer), Western Union, PayPal and so on.
Q. What package do you use for your products? What shipping method do you use?
A.1. Our company use standard exporting carton for packing. 2. We ship via express courier (door to door service), by air, and by sea according to customers' requirements.
For more questions, please feel free to send inquiries to us.
