• Model NO.：GD-2806H
• Loading Method：Dynamic Load
• Display：Digital
• Weight：0-100Kg
• Power Source：AC220V
• Oil Cylinder Position：Under
• Softening Point Tester：Softening Point Ring and Ball Apparatus
• Softening Point Apparatus：Ring and Ball Method Apparatus for Softening Point
• Temperature Resolution：0.1c
• Test Samples：It Can Do Two Samples or Four Samples
• Heating Rate：It Will Be Adjusted to 5.0+,-0.5c, Min
• Heating Power：600 W
• Computer Port：RS-232c Communication Port
• Cubage of Beaker：900ml
• Warranty：1 Year
• Transport Package：Wooden Case
• Specification：conforms to ASTM D36
• Trademark：GOLD
• Origin：Chongqing of China
• HS Code：9031809090
• Production Capacity：100sets,Month

Basic Info.

Model NO. GD-2806H Loading Method Dynamic Load Display Digital Weight 0-100Kg Power Source AC220V Oil Cylinder Position Under Softening Point Tester Softening Point Ring and Ball Apparatus Softening Point Apparatus Ring and Ball Method Apparatus for Softening Point Temperature Resolution 0.1c Test Samples It Can Do Two Samples or Four Samples Heating Rate It Will Be Adjusted to 5.0+/-0.5c/ Min Heating Power 600 W Computer Port RS-232c Communication Port Cubage of Beaker 900ml Warranty 1 Year Transport Package Wooden Case Specification conforms to ASTM D36 Trademark GOLD Origin Chongqing of China HS Code 9031809090 Production Capacity 100sets/Month

Product Description

GD-2806H Automatic Ring and Ball Test for Softening Point of Bitumen Conforms to ASTM D36



Automatic ASTM D36 Ring and Ball Apparatus:

The Softening Point of Bitumen Apparatus is used to determine the Softening Point of Bitumen in the range from 30 to 157°C using the ring and ball apparatus immersed in distilled water (5 to 80°C), glycerine (32 to 160°C).
The Ring and Ball method of determining the softening point bituminous materials.
The softening point is considered to the temperature of the fluid when the ball penetrates the specimens and touches the lower plate.


Features:

1. This Ring and Ball Apparatus adopts advanced technologies such as computer intelligent control, laser automatic detection, LCD touch screen and micro printer.
2. It has linear temperature heating, uniform bath stirring and accurate test results.
3. It can do four samples or two samples at a time.
4. The Ring and Ball Apparatus (ASTM D36) has functions of automatic completion of sample testing and automatic printing of test results, it is an automatic and intelligent testing instrument for asphalt softening point with high degree of automation, fast and convenient testing, accurate and reliable testing results.



Specifications:

1. Power supply: AC(220V±10%)V, 50Hz
2. Measurement range:
    (1) Heating medium: distilled water(softening point <=80 ºC) +5 ºC~+80ºC
    (2) Heating medium: glycerin (softening point > 80 ºC) 32 ºC~160 ºC.
3. Temperature resolution: 0.1 ºC
4.Test samples: It can do two samples or four samples.
5. Heating rate: it will be adjusted to 5.0±0.5 ºC/ min automatically after three minutes
6. Heating power: 600 W
7. Computer port: RS-232C communication port
8. Cubage of beaker: 900 ml
9. Ambient temperature: 15ºC~35ºC
10. Relative humidity: ≤85%
11.Maximum power consumption: 700 W
12.Dimension: 400mm×300mm×490mm (L*W*H)

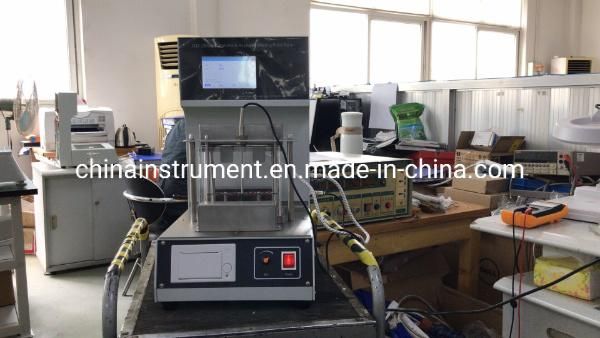

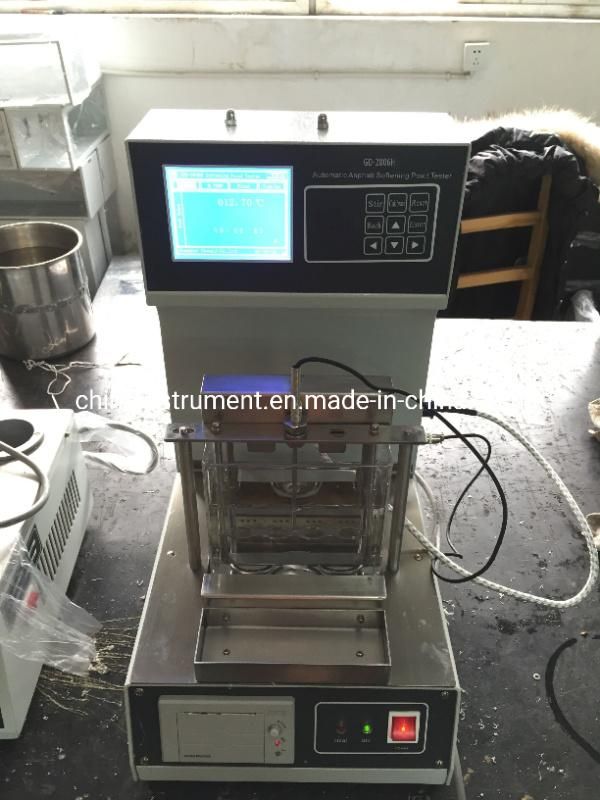

Automatic Ring and Ball Apparatus in our laboratory!
