• Model NO.：FCZ-V
• Weight：3kg
• Power Source：AC220V
• Output voltage：AC,DC 1600V
• Time interval：≥30s
• Power supply：DC12V , AC220V±10%, 50Hz±2%
• Impulse curren：≥100A(8,20μs)
• Dimension：380*250*180mm
• Transport Package：Standard Export Wooden Box
• Specification：380*250*180mm
• Trademark：HV Hipot
• Origin：Wuhan, China
• HS Code：9031809090
• Production Capacity：5000sets,Year

Basic Info.

Model NO. FCZ-V Weight 3kg Power Source AC220V Output voltage AC/DC 1600V Time interval ≥30s Power supply DC12V / AC220V±10%, 50Hz±2% Impulse curren ≥100A(8/20μs) Dimension 380*250*180mm Transport Package Standard Export Wooden Box Specification 380*250*180mm Trademark HV Hipot Origin Wuhan, China HS Code 9031809090 Production Capacity 5000sets/Year

Product Description

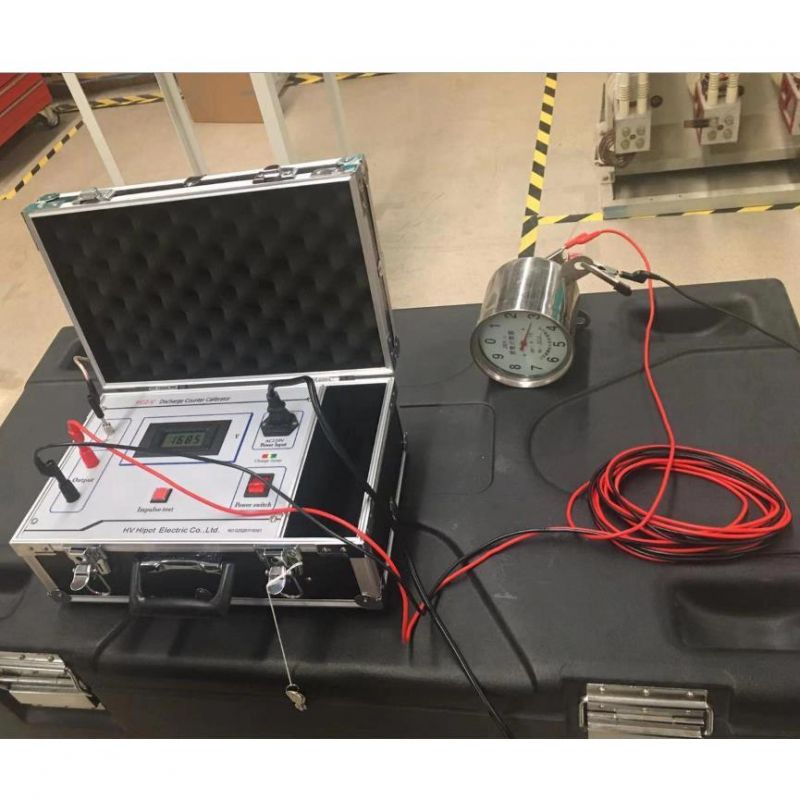

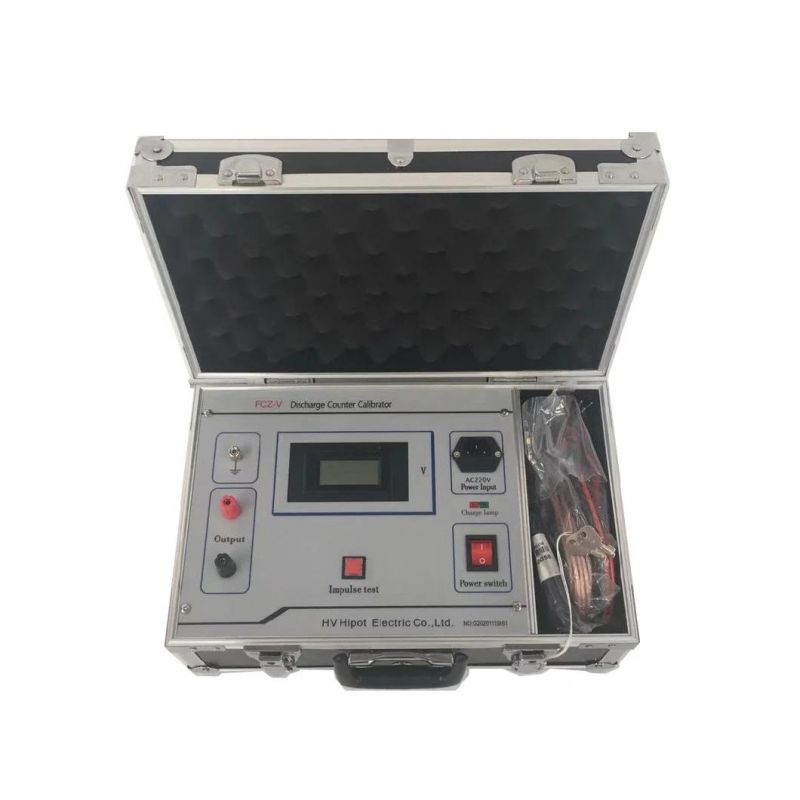

FCZ-V Digital Display Zinc Oxide Arrester Discharge Counter Calibrator



I. General Information

FCZ-V series AC/DC Discharge Counter Calibrator for Lightning Arrester is used to verify the reliability of various arrester counter action. The reliability of counter action is very important for power system. It is an important parameter to record the number of lightning strikes of arrester in normal operation. It can provide an important basis for the personnel of power system to test the arrester. This instrument is mainly used for high voltage arrester above 35kV.


II.Features

1. Small size, light weight;
2. Easy to carry;
3. Good reliability;
4. Simple operation.

III. Specifications


1. Output voltage: DC1600V±3%±5V
2. Time interval: ≥30s
3. Power supply: DC12V / AC220V±10%, 50Hz±2Hz
4. Impulse current: ≥100A(8/20μs)
5. Dimension: 380×250×170mm
6. Weight:3kg

IV. Packing List


No.	Name	Qty.	Unit
1	Main tester	1	set
2	Power cord	1	piece
3	Test wire (each one for red, black)	2	pieces
4	Fuse	3	pieces
5	Ground wire	1	piece
6	Users' guide	1	copy
7	Packing list	1	copy
8	Factory test report	1	copy
9	Warranty card	1	copy
