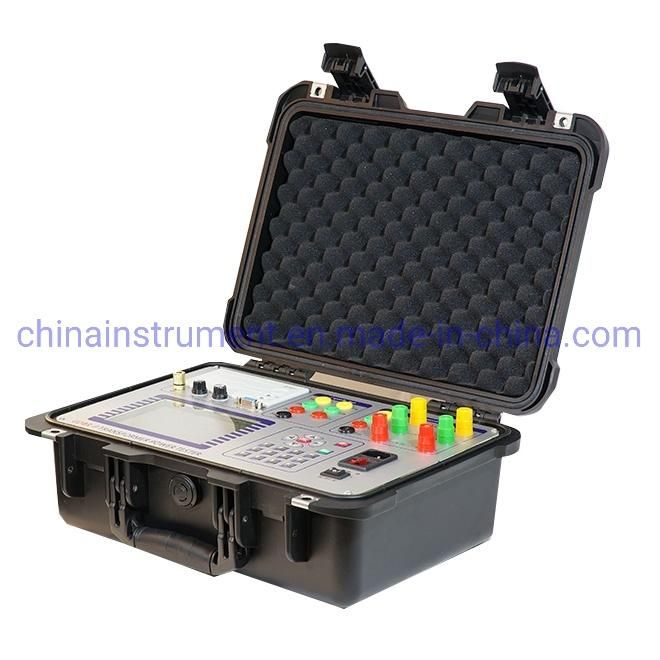

Fully-automatic Transformer Load And No-Load Test Equipment

Introduction

GDBR-P transformer no-load tester can measure the AC voltage effective value, voltage average value, effective value, active power, power factor and frequency of three-phase power transformers. The measurement accuracy is 0.1, intelligent and professional design 3. Suitable for testing of no-load, load, induction and other tests of power transformers.



Features

• Measure transformer no-load current, no-load loss, short-circuit voltage, short-circuit loss and capacity.
• Three meter test method.
• When the three-phase transformer is under no load and load test, the instrument will automatically determine whether the wiring is correct and display the three-phase voltage and current vector diagram.
• The load test is completed at 1600kVA below the full current of a single distribution transformer. 2500kVA lower than the distribution transformer load test at 1/3 rated current (At 1/3 rated current, the instrument can be converted to load loss parameters at rated current.)
• All test results are automatically corrected. The instrument automatically calibrates as follows, waveform correction, temperature correction, non-rated voltage correction and non-rated current correction. The test results are more accurate.
• 320 * 240 high-brightness LCD display with brightness adjustment function. The touch button makes the operation more convenient.
• Real-time clock, automatic recording of test date, suitable for storing and managing test results.
• Built-in panel-type thermal printer to quickly print test results.
• Turn off the function of storing and browsing data (test object set, measurement result, test time). Store up to 500 test results and transfer data to PC online.
• Allows extended range of external voltage and current transformer measurements. Test object that measures any parameter.

Specifications

Test items

• Percentage of No-load loss and No-load current: Po,Io%.
• Load loss, impedance voltage percentage, short circuit impedance: Pt,ekt,Zt.
• Load loss, impedance voltage percentage and short circuit impedance at any specified temperature.
• Transformer actual capacity and judged capacity.
• RMS of three phase voltage: Uab,Ubc,Uca.
• Average value of three phase AC voltage: Uab,Ubc,Uca.
• RMS of three phase current: Ia,Ib,Ic.

Main technical parameters

• Current measurement range: 100mA-60A,accuracy:class 0.2.
• Voltage measurement range: 10V-650V,accuracy:class 0.2.
• External transformer can broaden the measurement range of instrument.
• Frequency measurement range: 40-65Hz, accuracy:class 0.2.
• Power input: AC220V± 10%.

 Our Advantages

Quality Assurance

• We have more than 10 years' experience in designing and manufacturing these equipment.
• Our equipment is stable, reliable, with high quality and good reputation.
• All the products have been run well and adjusted to good condition before delivery.
• Easy oprerating: operator only need to follow the user manual to operate it.

Product advantages

• When the three-phase transformer is under no load and load test, the GDBR-P instrument will automatically determine whether the wiring is correct and display the three-phase voltage and current vector diagram.
• All GDBR-P test results are automatically corrected.
• GDBR-P allows extended range of external voltage and current transformer measurements. Test object that can measure any parameter.
• GDBR-P has a 320 * 240 high-brightness LCD display with brightness adjustment. The touch button makes the operation more convenient.
