UV Lamp Temperature Aging Test Chamber for Paint and Ink Product
Guangdong Yuanyao Test Equipment Co., Ltd.- Certification：CE, TUV, ISO, SGS
- Warranty：1 Year
- Exterior Chamber Size (W*H*D)：Depends on The Chamber Design
- Test Area Size(W*H*D)：40*50*40 Cm
- Inner Chamber Material：SUS#304 Stainless Steel
- Exterior Chamber Material：Stainless Steel
Base Info
- Model NO.：YUV-080
- Sample Holder Material：SUS#304 Stainless Steel
- Temp. Range：Rt+10~70 Degrees
- Humi. Range：75%Rh~95%Rh
- Rain Time：1~9999 Mins, Adjustable
- Light Model：UV-a(295~360 Nm), UV-B(280~315nm) Optional
- UVA/UVB Light Power：40W(Lifetime 1800h)
- Irradiance：1.0 W,M2
- Control Accuracy：+,- 0.1 Degrees, +,-1% Rh
- Standard Specimen Size：75*150mm or 75*300mm
- Water Supply System：Auto Water Filling System
- Transport Package：Plywooden Cartons
- Specification：YUV-080
- Trademark：Yuanyao
- Origin：Guangdong, China
- HS Code：9031200000
- Production Capacity：100 Sets,Month
Description
performanceTemp.range RT+10ºC~70ºC Humi.range 75%RH~95%RH Rain time 1~99999mins,adjustable Rain period 1~240mins,interval adjustable Light model UV-A(295~360nm),UV-B(280~315nm)optional UVA/UVB light power 40W(lifetime 1800h) Irradiance 1.0W/m2 adjustable Standard specimen size 75×150mm or 75×300mm Control accuracy ±0.1ºC,±1%RH System Temp.controller Imported LED digital display PID+SSR microcomputer integrator Sensor Perkin resistance PT100Ω/MV Time controller Imported programmable time controller Heating system Nichrome heater Condensation humidification system Stainless steel humidifier Blackboard temp Metal blackboard thermometer Water supply system Auto water filling system Circulating system Quiet motor,multi-vane centrifugal fan Material Exterior chamber material Stainless steel Inner chamber material SUS#304 stainless steel Sample holder material SUS#304 stainless steel Standard configuration Standard sample holder 24pcs,light tubes 8pcs(UVA/UVB) Safety Protection Leakage,short circuit,over temp.,water shortage,over current protection Power supply AC 1ψ220V 60/50Hz Operation condition 5ºC~+30ºC≤85%RH Customization service Non-standard or special requirements are all welcome
Features:
1. Black aluminum plate is used to connect the temperature sensor, and the blackboard temperature meter is used to control the heating, and the temperature is more stable.
2. The amount of radiation is measured by a high-precision display and measurement of a dedicated ultraviolet radiation meter.
3. Irradiance is not more than 50 W/m2.
4. Illumination and condensation can be independently controlled and alternate cysle control.
5. The independent control time for illumination and condensation and the time for alternate cycle control can be set arbitrarily within 1000 hours.

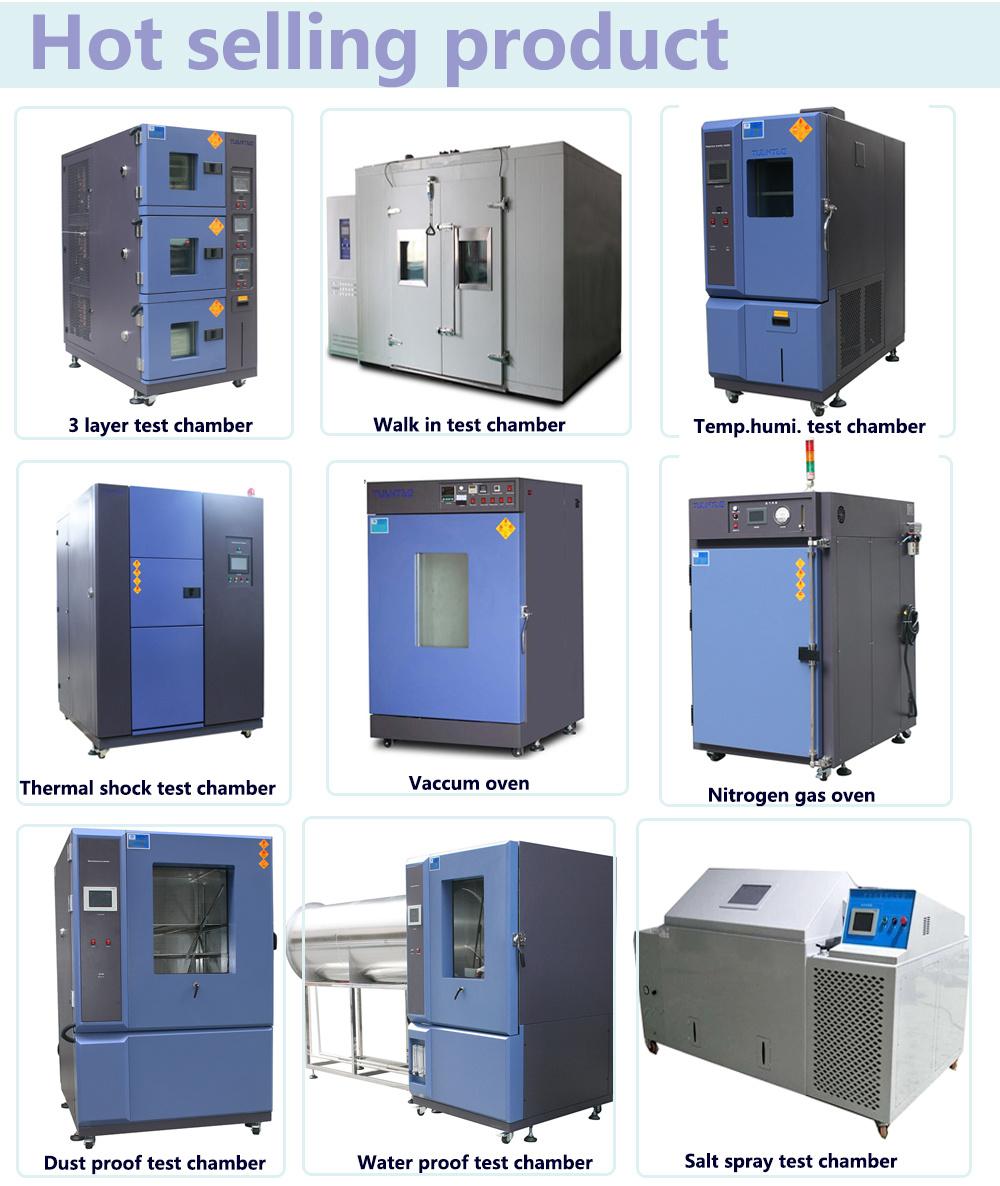

Our hot selling products:
Application products:

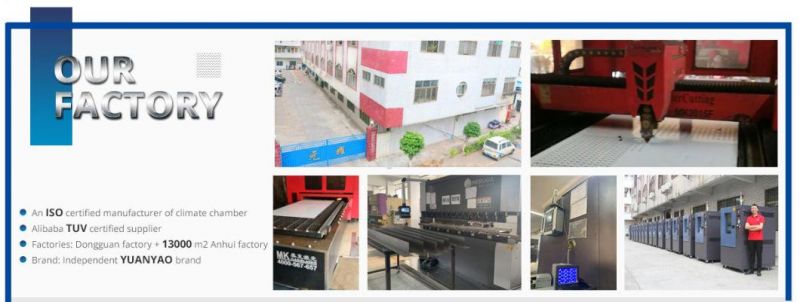

Our company:
After-sales service
1. Free parts for 12 months.
2. One year warranty, during in this year, we provide free maintenance. Beyong the warranty, we provide accessories with low cost, lifetime maintenance service is available.
If you want to know more and tell us what is your idea technical spec, please let me know, thanks.
