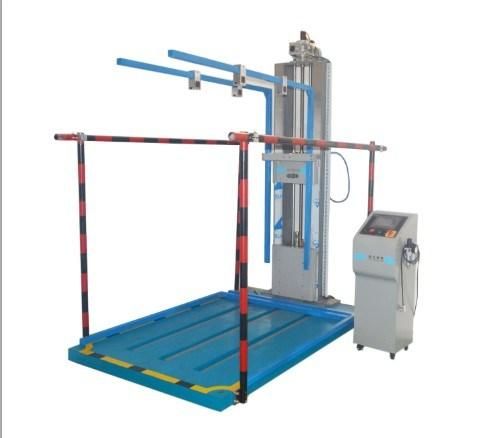

Touch Screen Packaging Zero Fall Impact Resistance Tester/Test Machine

Dongguan Haida Equipment Co., Ltd.
  • Warranty：One Year
  • Type：Drop Testing Machine
  • Maxcapacity：<1000KN
  • Accuracy Grade：0.5
  • Load Way：Electronic Load
  • Display：Digital

Base Info

  • Model NO.：HD-A520-3
  • Control：Computer Control
  • Weight：500-1000Kg
  • Power Source：AC220V
  • Drop Height：400~1300 mm
  • Specimen Max. Weight：60 Kg(Can Be Customized)
  • Design Criteria：ISO, JIS, Ista
  • Drop Weight：100kg
  • Delivery Time：15 Days After Receive The Deposit
  • Guarantee：1 Year
  • Transmit Approach：Electric Transmission
  • Display Method：Digital Height Indicator (Optional)
  • Horsepower：1,2 HP
  • Transport Package：Strong Wooden Case
  • Specification：ISO 2248, JIS Z0202-87, GB,T4857.5-92 Ista-1a
  • Trademark：HAIDA
  • Origin：China
  • HS Code：9024109000
  • Production Capacity：1000sets,Year

Description

Max. sample weight100KGSample sizeThree kinds of carton size in your file "Inq Haida"Drop platform areaAs per three kinds of carton size in your file "Inq Haida"Drop height100-1000mmDrop testCorners, edges , faces of sampleDrive modeMotor driveProtection deviceInduction type protection devicePanel material45# steel, solid steel plateArm material 45# steelHeight displayDigitalOperate modePLCDriving modeTaiwan Linear slider and copper guideDrop methodElectromagnetic and pneumatic comprehensive supportMachine dimension (L×W×H)2000*1900*2450mm including control box (estimated)PackageStrong wooden casePackage Dimension (L×W×H)2300*2200*2650mm (estimated)Package Weight800KGPowerSingle phase, 220V, 50/60 Hz

(The table parameters for the company Standard Model parameters, we support customer customization parameters)
 Touch Screen Packaging Zero Fall Impact Resistance Tester/Test Machine

Design standard:
ASTM D5276-98, ISTA 1A (free drop)

ISTA 1A:
Relationship of weight and drop height
