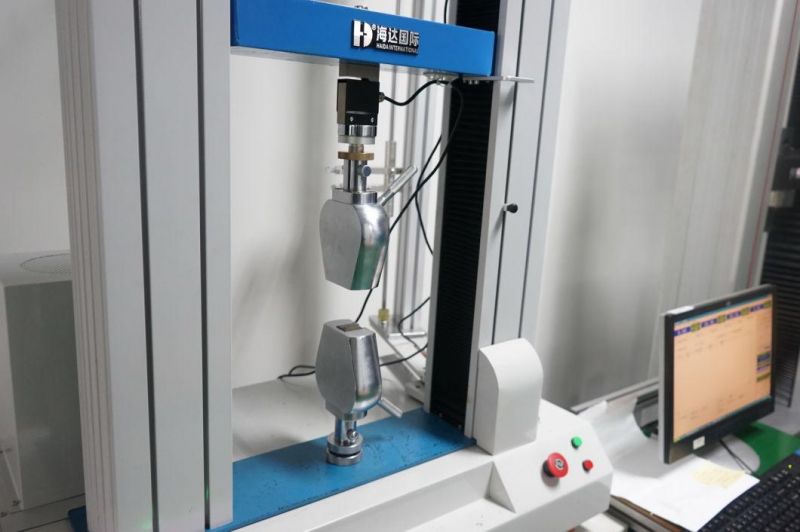

Lab Universal and Cable/Steel/Glass Fiber Other Materials Tensile Tester
Dongguan Haida Equipment Co., Ltd.- Warranty：One Year
- Type：Tensile Testing Machine
- Maxcapacity：<1000KN
- Accuracy Grade：0.5
- Load Way：Electronic Load
- Loading Method：Dynamic Load
Base Info
- Model NO.：HD-B604B-S
- Display：Computer Display, Digital
- Control：Computer Control
- Weight：100-500Kg
- Power Source：AC220V
- Product Name：Tensile Testing Equipment
- Capacity：Max 2000kg
- Motor：Panasonic Servo Motor
- Stroke：1000mm with Extensometer
- Accuracy：0.5%
- Resolution：1,250, 000
- Unit：G, Kg, Lb, N, Kn
- Test Speed：0.1-500mm,Min (Adjustable )
- Delivery Time：15 Days After Receive The Deposit
- Transport Package：Strong Wooden Case
- Specification：GB,T16491; GB,T1040; GB,T1041; ISO, ASTM
- Trademark：Haida
- Origin：Dongguan, China
- HS Code：9024109000
- Production Capacity：150 Sets Per Month
Description
Over-load protection
Upper and lower limit switches
Load sensor with automatic retreat
1.High-Tech, Low Noise
2.Humanized Industrial Design, Easy To Place And Transport
Security Protection System
3.Technical Engineer Support After Service
4.Manufacturers Direct Sales, Factory Prices
5.1 Year Warranty , Free The Use Of Equipment Manual
Sales In Stock, Fast Delivery Time
Applications
- Deformation under defined load: Test deformation under defined load of tested sample
- Load under defined deformation: Test load under defined deformation of tested sample
- Software can issue report with results for max. force, elongation, tensile strength, peel strength, tear strength, compression strength, etc.

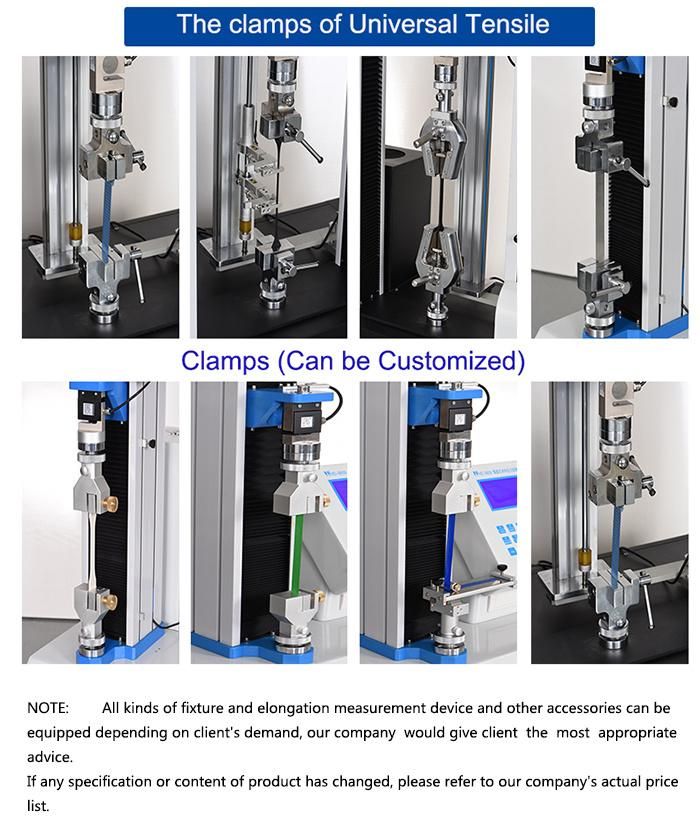

- This machine can do different test as per customer requirement such as peel test, tear test, compression test, bend test with different clamps.
TM 2101 intelligent automatic detection of the operating system, (can adapt to all current PC)
High-tech, low noise
Humanized industrial design, easy to place and transport
The world famous brand core precision components
Security protection system
Valid test trip length (modifiable)

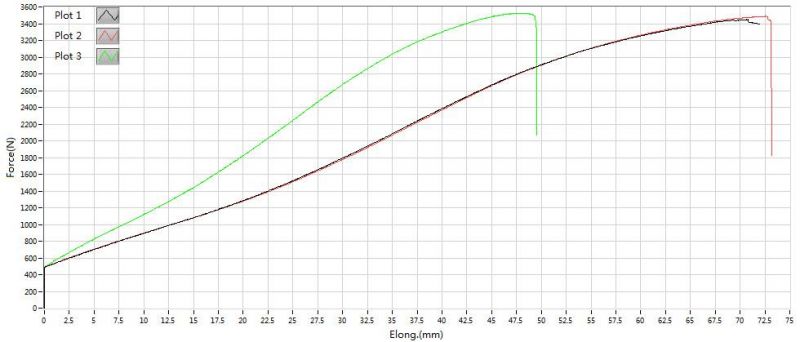

Software and Curves

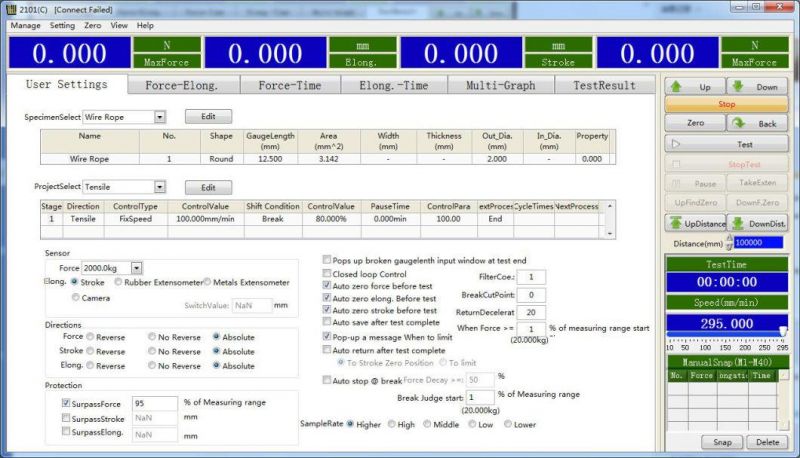

The TM2101 software is designed purposely for computer controlled electronic universal testing machine, used for tension, compress, bend, shear, tearing andpeel test. With the personal computer and interface plate, it could collect, save, process and print test result. Further it can calculate multiple parameters, i.e. maximum force, yield strength, average peel force maximum deformation, yielding point and elastic modulus; this system is featured in curve process, multi-sensor support, image interface, flexible data process and powerful system function.
Ultimate Tensile Strength Tester / Universal Testing Machines
About Us
HAIDA INTERNATIONAL is a professional manufacturer of various kinds of testing equipments over 24 years. HAIDA products are widely used in paper products, packaging, ink printing, adhesive tapes, bags, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products and other industries, and applicable to all scientific research units, quality inspection institutions and academic fields
