• Model NO.：YWER-42000
• Temp.&Humi.Fluctuation：±0.3°c;±0.5%Rh
• Temp.&Humi.Uniformity：±3°c;±5%Rh
• Inner Material：SUS#304 Stainless Steel
• Exterior Material：Stainless Steel + Powder Coating
• Power Supply：AC 220V 50Hz,AC 3 Phase 380V 60,50Hz
• Gross Weight：6420kg
• Transport Package：Strong Plywood Carton
• Specification：CE, ISO, SGS, TUV certified.
• Trademark：Yuanyao
• Origin：Dongguan, China(Mainland)
• HS Code：9031200000
• Production Capacity：20 Sets,Week

ModelYWERInternal Dim.W×H×D(mm)Please refer to size chartExternal Dim.W×H×D(mm)Temp. Range0°C;-20°C;-40°C;-60°C~+120°CRelatice Humidity Range30~90%RH±0.3°C;PerformanceTemp.&Humi.fluctuation±0.3°C;±0.5%RHTemp.&Humi.Uniformity±3°C;±5%RHIndication Resolution0.01°C; 0.1%RHHeat-up Time°C80min50Pull-down Time°C0-20-40min5570100MaterialExteriorSUS#304 Stainless steel/PVC+Powder CoatedInteriorSUS#304 stainless steel piateInsulationPloyurethane foam 100mm (75mm) (50mm)SystemsCirculationSiroco fanHeatingSUS#304 stainless steel high-speed heaterHumidifyingSurface evaporating systemCoolingAirtight compressor+vaporator fins+air-cooling
(or water-cooling)condenserDehumidifyingADP Critical dewpoint cooling/dehumidifying methodControllerDigital electronic indicators+S.S.R.With PIDOther ComponentsAirtight compressor+evaporator fins+air-cooling
(or water-cooling)condenserSafety DevicesOverheating prevention ciruit-breaker, compressor overload protection,control system overload,
humidifying system, overheating & drying out prevention, breakdown indicator light.Power Source(K.W)AC 1Ψ 220V 50Hz; 3Ψ 380V 60/50Hz

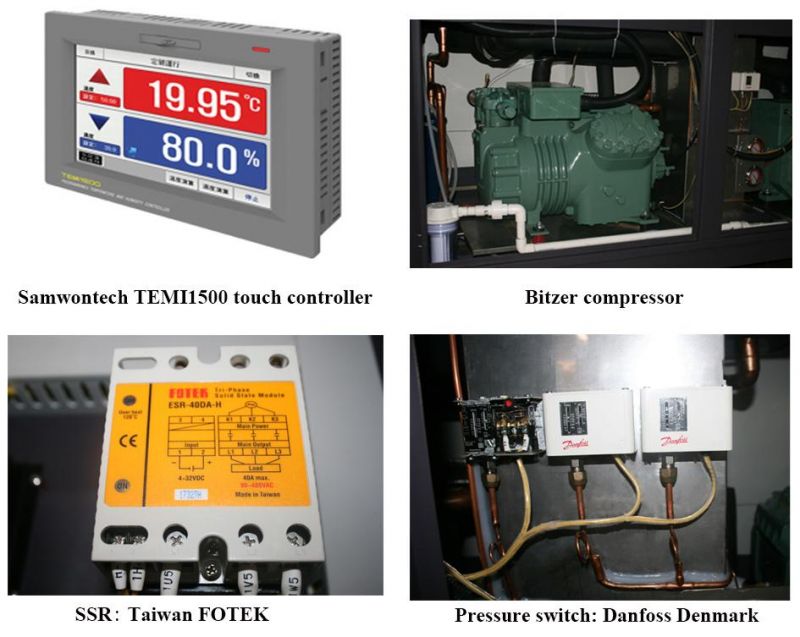

3. Higher quality accessories:

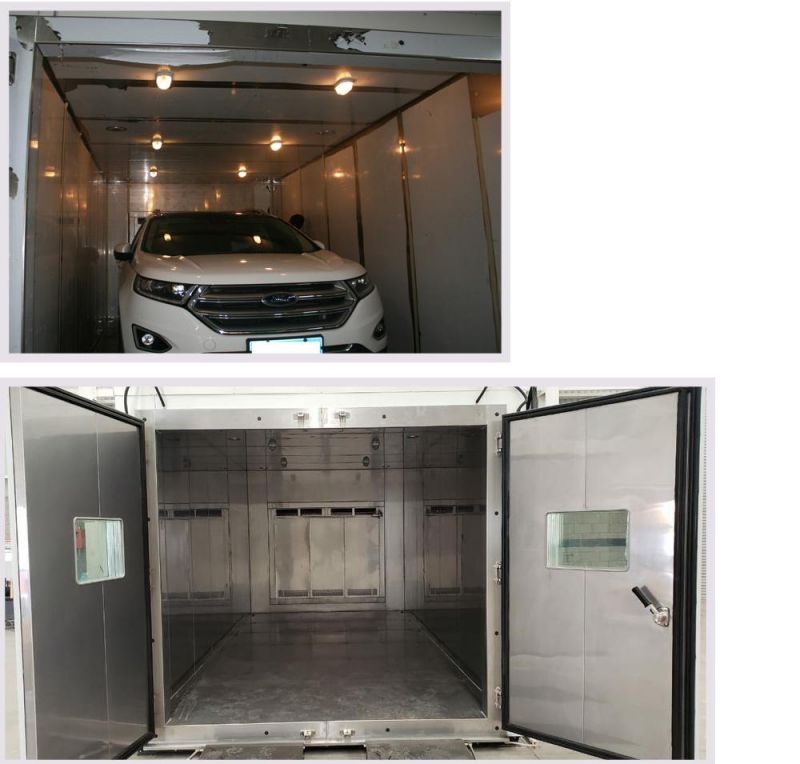

4. Drive-in chambers include:
• Temperature and humidity touch-screen controller, easy-to-use Controller.
• Heavy-duty flooring to support vehicles.
• Large double doors and windows.
• Equip with durable lights.
• Special larger refrigeration system and additional airflow capability.
• Customization to suit additional test requirements.
• The panels we use have a stainless steel interior skin to be stronger and impervious to extreme conditions.The seams between panels are carefully sealed to protect from leaking that may affect performance or damage the panels.
5. Widest range, most customizable: • Custom high temperature range to 120°C • Extended humidity range to 85/90% • Full-opening doors • Stronger standard floor (Custom-made it to the weight of your vehicle)• Rigid frame for strength • Stainless steel interior is hermetically welded

6. Product Image:

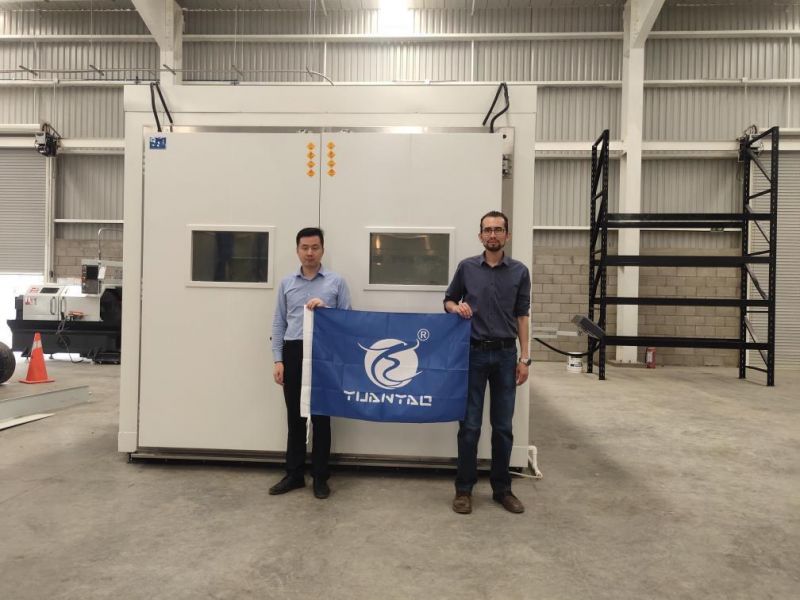

Walk in test chamber from Mexican customer, we went to Mexico for installation.

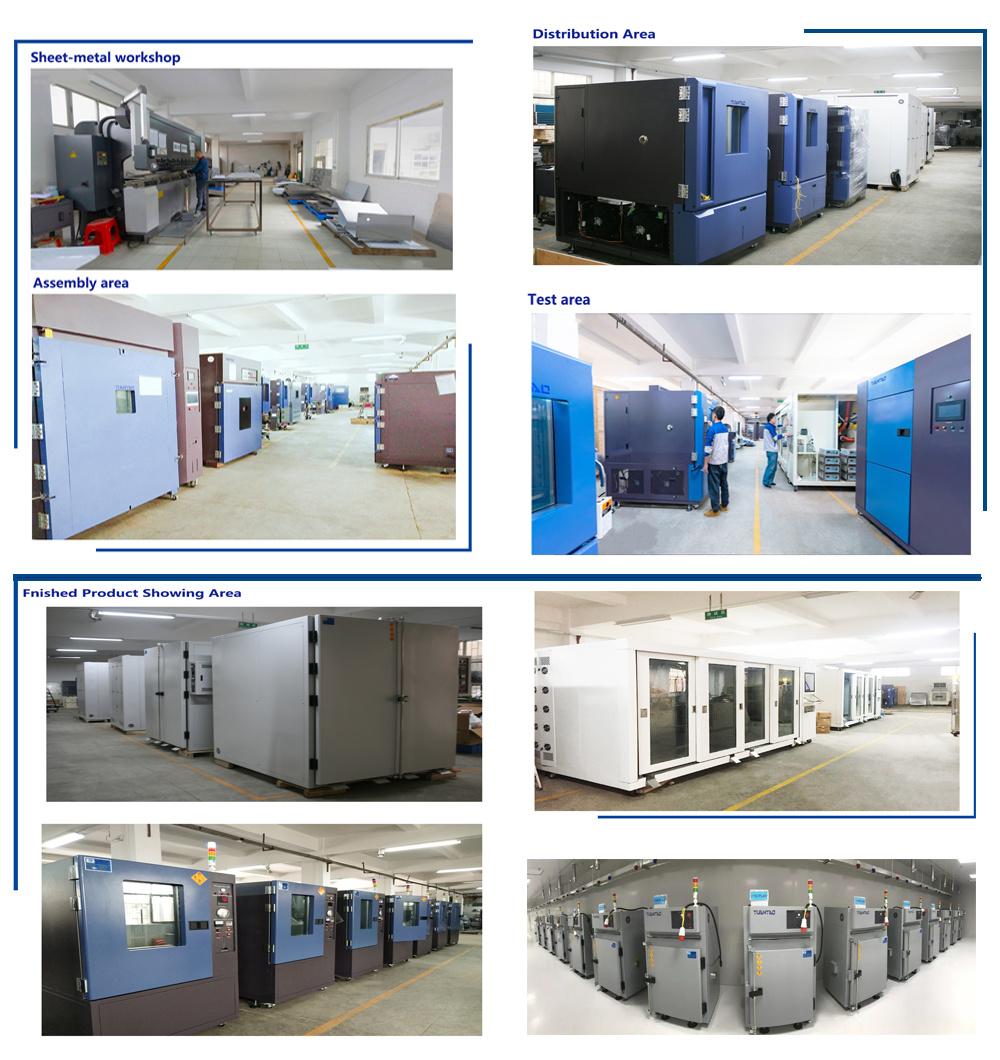

7. Yuanyao Factory:

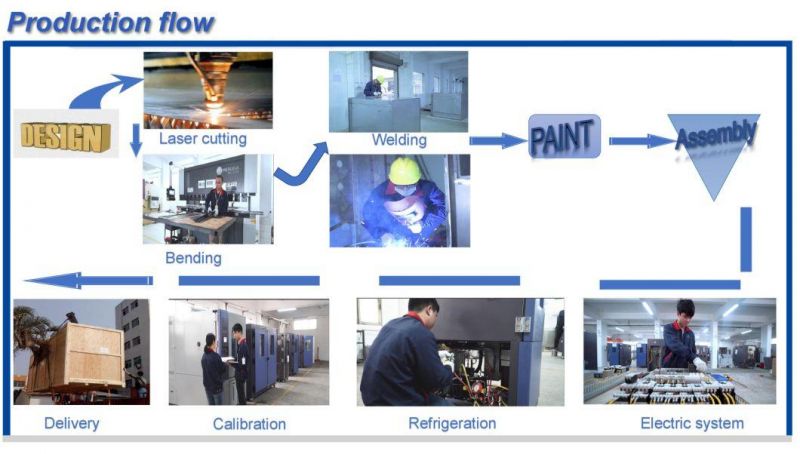

• We have independent workshops, they are consist of material bending and welding area, machine assemble area, electric system area, cooling system area ,testing and finished product area.
• We produce in strict accordance with international safety standard.
• Many stock spare parts in warehouse ensure customer can get soon when they need.

8. QC Profile:
•  We use imported accessories, performance is more stable.
•  All products will be continously tested for 4-7 days before delivery to check the equipment's running.
• We have set up quality supervision department, they will supervise every production process to ensure excellent product performance and outlook before delivery. We have set up quality supervision department, they will supervise every production process to ensure excellent product performance and outlook before delivery.

9. CE, SGS, TUV, ISO 9001:2015 certified manufacturer.



Need any technology support, feel free to contact us, we would be happy to help you.
