Foam Pounding Fatigue Tester Drop Impact Test Machine

Dongguan Haida Equipment Co., Ltd.
  • Type：Test and Measurement Instruments
  • Maxcapacity：<1000KN
  • Accuracy Grade：1
  • Load Way：Electronic Load
  • Loading Method：Dynamic Load
  • Display：Digital

Base Info

  • Model NO.：HD-F750
  • Control：Computer Control
  • Weight：100-500Kg
  • Power Source：AC220V
  • Control and Display：Computer
  • Max Capacity：200kg
  • Load Cell：Celtron Sensor
  • Power System：Servo Motor
  • Unit：G, Kg, Lb, N
  • Test Speed：0.1 to 500 mm,Min
  • Induction Way：Precision Load
  • Capacity：200kg
  • up Plate：Diameter 200mm, Bottom Fillet R1mm
  • Low Plate：420*420mm, Holes Diameter 6mm, Space 20mm
  • Transport Package：Strong Plywood Case
  • Specification：ISO, ASTM
  • Trademark：Haida
  • Origin：Dongguan, China
  • HS Code：9024
  • Production Capacity：150 Sets Per Month

Description

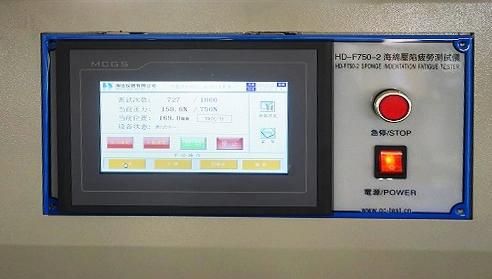

Max capacity200kgPlane plateHoles diameter 6mm, space 20mmIndentorHaving an overall diameter of 250 mm± 1 mm with a 25 mm± 1 mm radius at its lower edgeTest force750 N ± 20 N during one loading cycleSpeed(70 ± 5) times per minuteSample sizeTest pieces shall be right parallelepipeds having sides of length 380 mm± 20 mm and a thickness of 50 mm± 2 mm.Counter6 digits cycle counter for test cycle settingDisplayLCD touch screenAdditional functionAdjust the test position during testing to compensate the force automaticallyDimension760×780×1350mm
Application Standards:
ASTM D 3574, ISO 3385

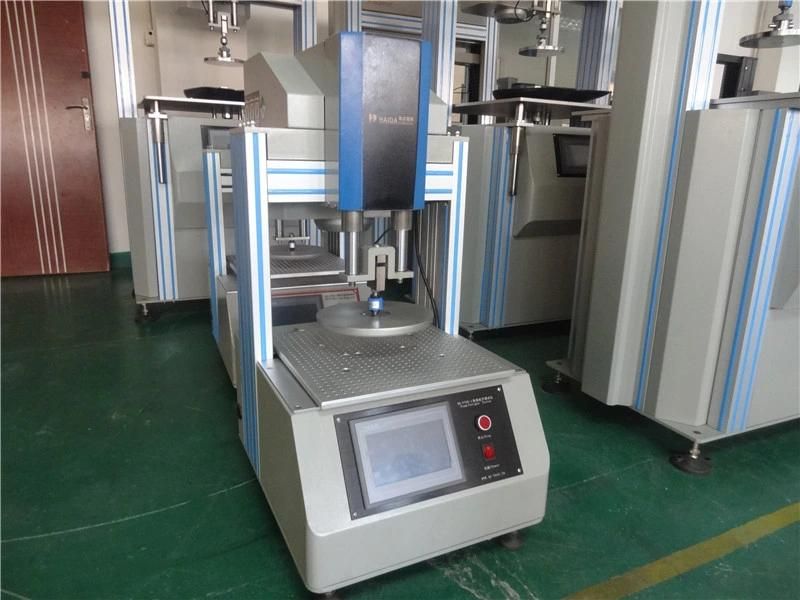

Foam Pounding Fatigue Tester Drop Impact Test Machine

Foam Pounding Fatigue Tester Drop Impact Test Machine

The introduction of Haida
Haida products are widely used in paper products, packaging, ink printing, adhesive tapes, bags, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products and other industries, and are applicable to all scientific research units, quality inspection institutions and academic fields. Our products meet UL, ASTM, JIS, GB,SO, TAPPI, EN, DIN, BS and other domestic and international standards.
Foam Pounding Fatigue Tester Drop Impact Test MachineFoam Pounding Fatigue Tester Drop Impact Test MachineFoam Pounding Fatigue Tester Drop Impact Test MachineFoam Pounding Fatigue Tester Drop Impact Test MachineFoam Pounding Fatigue Tester Drop Impact Test MachineFoam Pounding Fatigue Tester Drop Impact Test MachineFoam Pounding Fatigue Tester Drop Impact Test MachineFoam Pounding Fatigue Tester Drop Impact Test MachineFoam Pounding Fatigue Tester Drop Impact Test MachineFoam Pounding Fatigue Tester Drop Impact Test Machine
After-service:
If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-con.
