• Model NO.：HD-E703
• Power Source：AC220V
• Design Criteria：ISO; ASTM; BS
• Controller：LCD Touch Screen
• Box Material：Stainless Steel
• Warranty：One Year
• Delivery Time：15 Days After Receive The Deposit
• Centre Distance Between The Lamp：70mm
• Wavelength Ultraviolet Light：280 to 400nm
• Standard Sample Holder：75* 150*1.5mm
• Transport Package：Strong Wooden Case
• Specification：ISO9001: 2008
• Trademark：Haida
• Origin：Dongguan, China
• HS Code：902480
• Production Capacity：150 Sets Per Month

ItemSpecificationInternal dimension(W*D*H) 1000*1000*1000mmExternal dimension(W*D*H) 1200*1380*1900mmTemperature range-70~+150ºCTemperature Accuracy±1ºCHumidity range20~98%R.H. (Refer Image below)Humidity accuracy±3%R.HCooling speed1ºC/min in average (without loading)Heating speed3ºC/min in average (without loading)Internal chamber materialSUS#304 stainless steel, mirror finishedExternal chamber materialStainless steel with paint sprayCooling methodAir coolingControllerLCD touch screen, programmable control temperature and humidity
Can set different parameter for cyclic testInsulation material50mm high density rigid Polyurethane foamHeaterExplosion-proof type SUS#304 stainless steel fins radiator pipe heaterCompressorFrance Tecumseh compressorLightingHeat resistanceTemperature sensorPT-100 dry and wet bulb sensorObservation windowTempered glassTesting holeDiameter 50mm, for cable routingSafety protection deviceProtection for leakage
Over-temperature
Compressor overvoltage and overload
Heater short circuit
Water shortage
APPLICATIONS

1. To simulate test environment with different temperature and humidity
2. Cyclic test includes climatic conditions: holding test, cooling-off test, heating-up test, moistening test and drying test…
3. Cable port with flexible silicone plug for cable routing to provide the condition of test unit under operation
4. Uncover test unit weakness in a short-term test with accelerated time effect


CHAMBER DESIGN FEATURES

1. High performance and quiet operation (68 dBA)
2. Space-saving designed for flush installation to wall
3. Full thermal break around doorframe
4. One 50mm diameter cable port o left, with flexible silicone plug
5. Direct water supply connection for continuous operation
6. Accurate wet/dry-bulb humidity measurement system for easy mantain

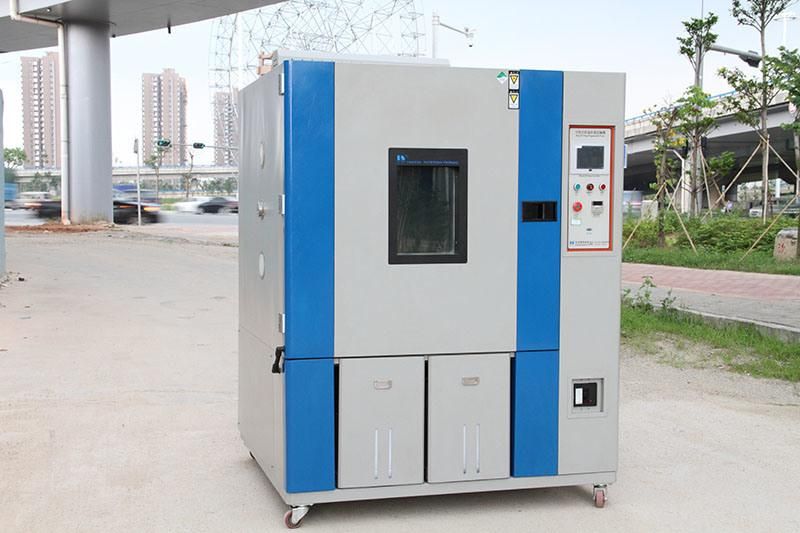

Images:
