• Model NO.：HD-B604B-S
• Display：PC
• Control：Computer Control
• Weight：100-500Kg
• Power Source：AC220V
• Product Name：Universal Tensile Testing Machine
• Motor：Panasonic Servo Motor
• Criteria：ASTM D903 Cns-11888 JIS K6854, Pstc-7
• Test Speed：0.1-500mm,Min (Adjustable )
• Screw：High Precise Ball Screw
• Power：1phase, AC220V, 50Hz
• Resolution：1,250, 000
• Sensor：Celtron Load Cell
• Delivery Term：15 Days After Receive The Deposit
• Transport Package：Strong Wooden Case
• Specification：ASTM D903 Cns-11888 JIS K6854, Pstc-7
• Trademark：HAIDA
• Origin：China
• HS Code：9024109000
• Production Capacity：1000sets,Year

Basic Info.

Model NO. HD-B604B-S Display PC Control Computer Control Weight 100-500Kg Power Source AC220V Product Name Universal Tensile Testing Machine Motor Panasonic Servo Motor Criteria ASTM D903 Cns-11888 JIS K6854, Pstc-7 Test Speed 0.1-500mm/Min (Adjustable ) Screw High Precise Ball Screw Power 1phase, AC220V, 50Hz Resolution 1/250, 000 Sensor Celtron Load Cell Delivery Term 15 Days After Receive The Deposit Transport Package Strong Wooden Case Specification ASTM D903 Cns-11888 JIS K6854, Pstc-7 Trademark HAIDA Origin China HS Code 9024109000 Production Capacity 1000sets/Year

Product Description

 Lab  Peel universal Tensile Test/Testing  Compression Machine/equipment

Product Description
Universal Tensile Testing Machine is widely used in wires & cables, hardware, metal, rubber, footwear, leather, apparel, fabric, tape paper products, pharmacy and so on, for tensile strength, tear resistance, peel strength, bend strength, shear force, ect with different fixtures according to national and international standards customer required.



Standard Features:

Item	Description
Frame capacity	2000kg
Load cell brand	Germany brand load cell for high accuracy,  2000kg (500, 1000kg are optional)
Load accuracy	0.5% F. S
Control system	PC with windows 7 system
Motor	Panasonic servo motor w/AC variable speed drive system, high-precision mechanical ball screw rod
Force reading	Kgf, Ibf, N, KN, T etc
Vertical test space	1200mm including fixture
Horizontal test space	≤400mm
Test speed	0.1~500mm/min (adjustable)
Software	TM 2101
Curves display	Load- elongation, Elongation-time, Time-elongation, Stress-strain
Data display	Max. Force, speed, sample information, strength(Kpa, MPa, N/mm, N/mm2) etc…
Safety features	E-Stop Over-load protection Upper and lower limit switches Load sensor with automatic retreat

Application:

1. Deformation under defined load: Test deformation under defined load of tested sample
2. Load under defined deformation: Test load under defined deformation of tested sample
3. Software can issue report with results for max. Force, elongation, tensile strength, peel strength, tear strength, compression strength, etc.
4. This universal test machine can do different test as per customer requirement such as peel test, tear test, compression test, bend test with different clamps.

General test items:
Tensile stress, tensile strength, breaking strength, breaking elongation, and stress, stress strength, tear strength, elongation, stress value of arbitrary point force, arbitrary point elongation, pull force, adhesive force and peak value, pressure test, shear stripping force test, bending test, pull test output puncture force.
Special test items:
1. The sex coefficient is defined as elastic young's modulus
2. The proportional limit
3. The elastic limit
4. Elastic deformation
5. Permanent deformation
6. The yield point
7. Yield strength
8. K value of spring

Brief introduction of TM2101 control system

This control system is intended for tensile strength tester, compression tester, and electronic universal material tester. It is applicable for the physical parameter of many kinds of material in pulling, compressing, bending, cutting, tearing, peeling and puncturing test under strength property. It can do pulling, compressing, three points bending resistance, four points bending resistance, cutting, tearing, peeling, puncturing of finished shoes, carton compression test, foam recyclable compression, spring pulling test and other recyclable dynamic and static test.
SOFTWARE - TM 2101

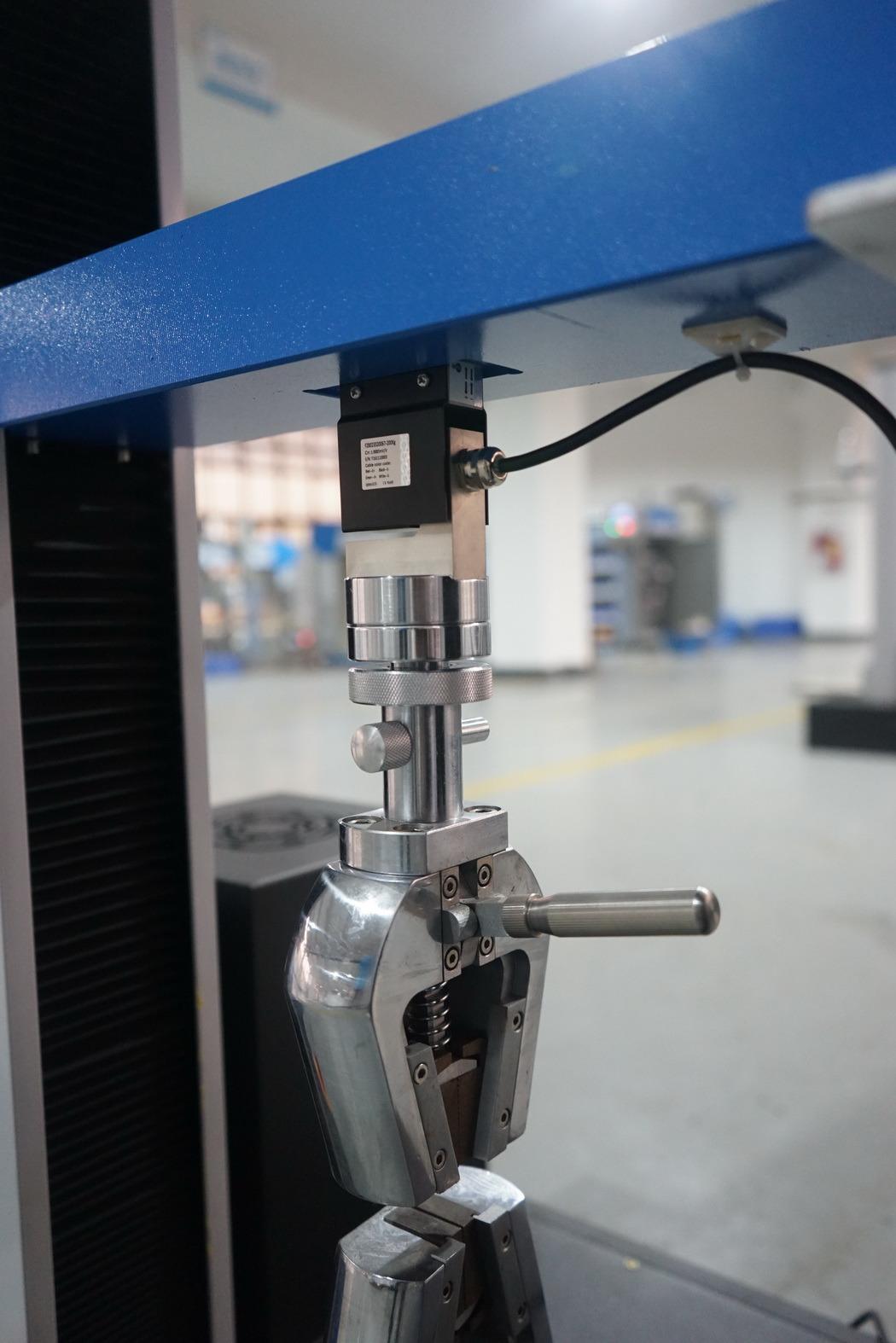

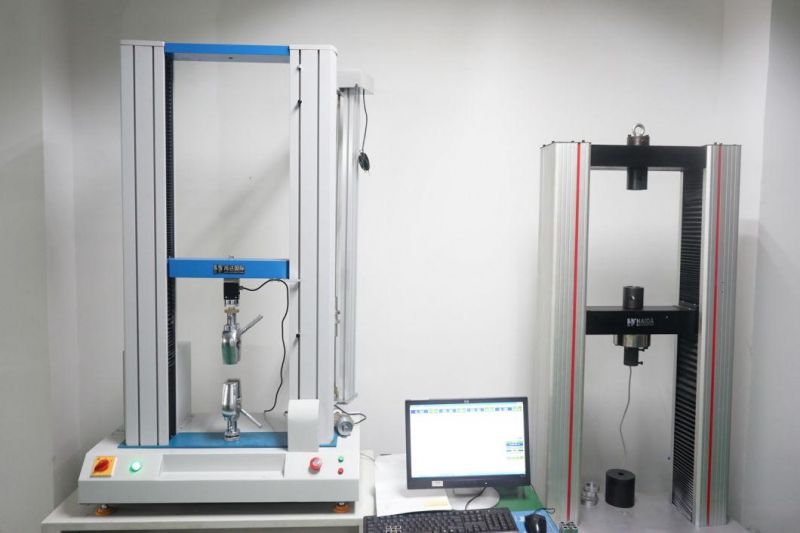

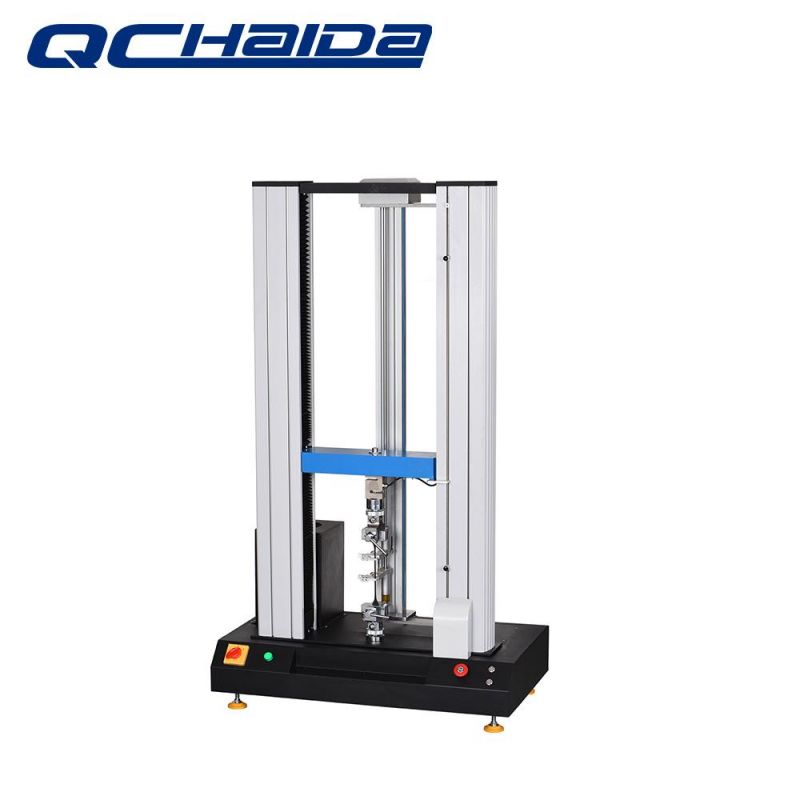

Universal test machine View:




Our company Introduction:

HAIDA INTERNATIONAL is a professional manufacturer of various kinds of testing equipments over 24 years. HAIDA products are widely used in paper products, packaging, ink printing, adhesive tapes, bags, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products and other industries, and applicable to all scientific research units, quality inspection institutions and academic fields.
