• Model NO.：ZH-XL-150
• Interior Sizes：W500×d500×h600mm
• Wave Length Range：290-800nm
• Black Panel Temp.：85 Degree
• Light Source：Imported Full Spectrum Xenon Arc Lamp
• Transport Package：Wooden Case
• Specification：Customization available
• Trademark：Sailham
• Origin：Guangdong, China
• HS Code：8479899990
• Production Capacity：5000sets,Year

ModelZH-XL-150Interior sizes W500×D500×H600mm or customizedExterior sizesW1050×D1050×1750mm (or so)Temp. range0ºC~80ºCControllerimported programmable 7inch touch screenMaterialinner and outer 304# stainless steelSample holderAluminum alloy frame baseProtection deviceresidual-current circuit breaker (RCCB) to control the warning for loop overload, thermal protection and water shortage protection.Temp. deflection±2ºC  (without lighting)Humid. range30%~98%R.HHumid. deflection±2.5%R.H(Humid.≥75%R.H); ±3%R.H(Humid.≤75%R.H)(without lighting)Light sourceimported full spectrum xenon arc lamp(average useful life 1600hrs)Raining time1~9999min (adjustable)Raining period1~240min, interval(cut)adjustablelamp powerTest period for Temp., irradiation, condensation, spray can be adjustableLamp1.8KWWave length range290-800nmheating power (or so)4.0KWhumidification (or so)2.0KWLight irradiance1200w/m²Distance between arc center and sample holder:350~380mmRevolving speed of sample holder≥1r/minWater spray perioda. spray time: 0~99h59min (Continuing or adjustable)
b. stop time: 0~99h59min, (Continuing or adjustable) Lighting timeContinuing programming control availableBlack panel temp.85±3ºCCooling methodMechanical wind cooling; Room temp. less than 26ºC is recommend, relative humid: ≤85%R.H; humid. and temp. tested after 2 hours under idle condition.

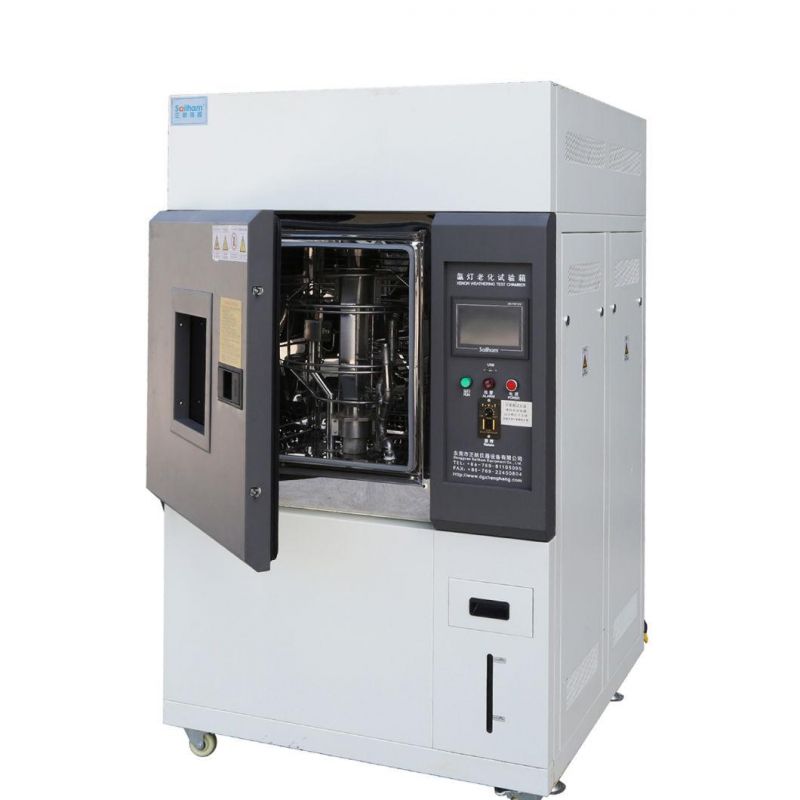

Product image

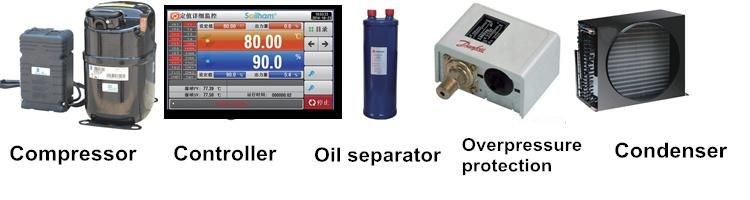

Core accessories

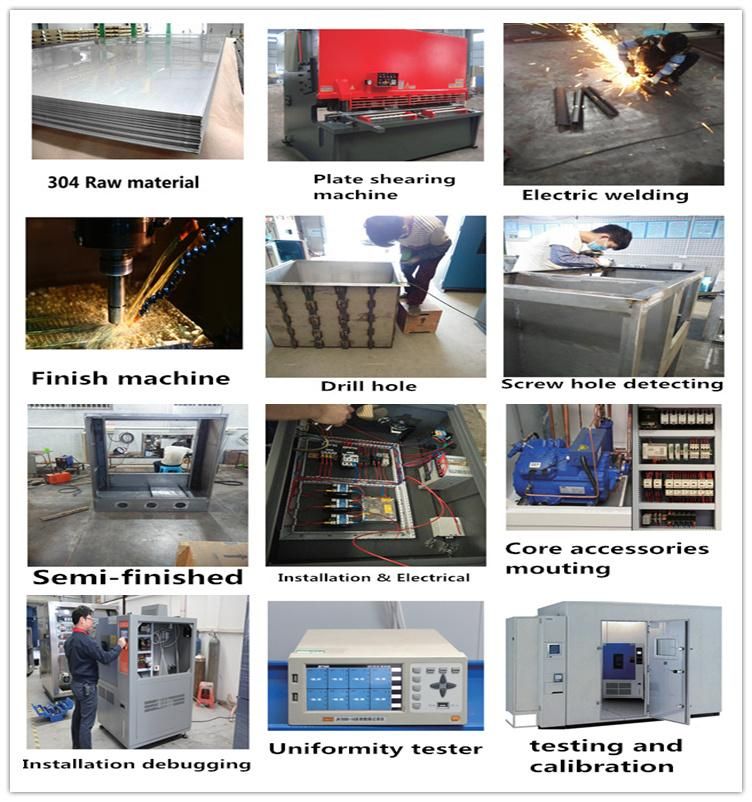

Manufacture process




Features
High performance and quiet operation (65 dBa)
Space-saving footprint, designed for flush installation to wall
Stainless steel exterior
Full thermal break around doorframe
One 50mm (2") diameter cable port on left, with flexible silicone plug(special requirement)
Three levels of overheat protection, plus overcool protection
Easy lift-off service panels, electrical access on left
Detachable eight-foot power cord with plug
Direct water supply connection for continuous operation (supply tank optional)
ETL listed electrical panel conforming to UL 508A

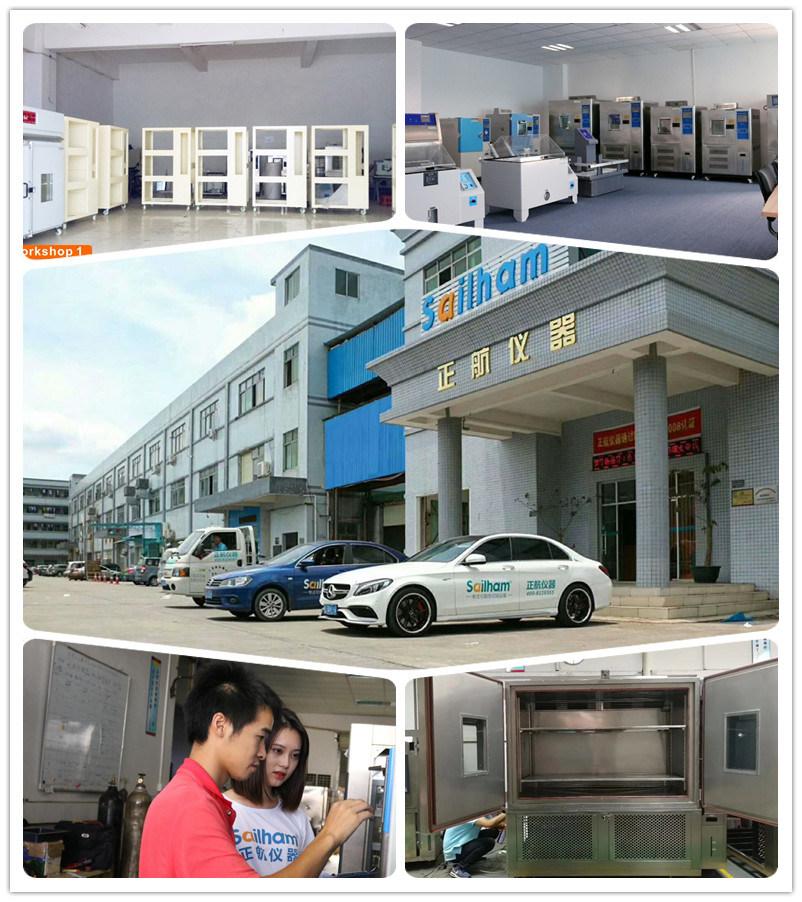

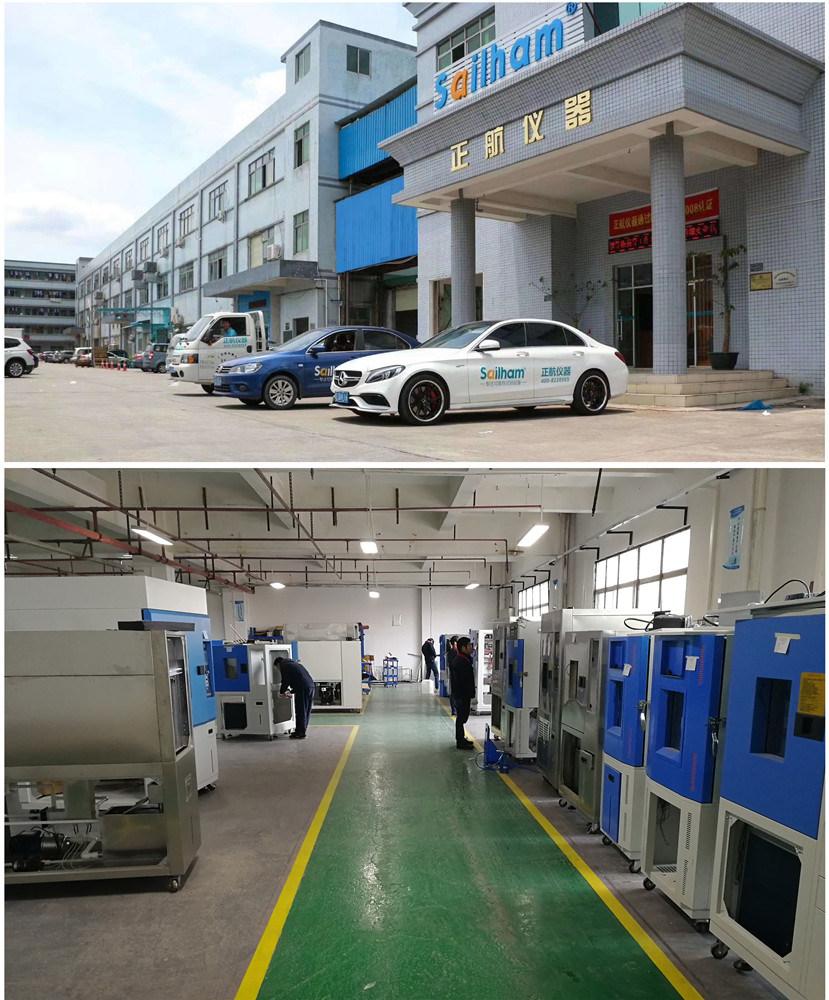

Our Factory

Honorary Certifications:

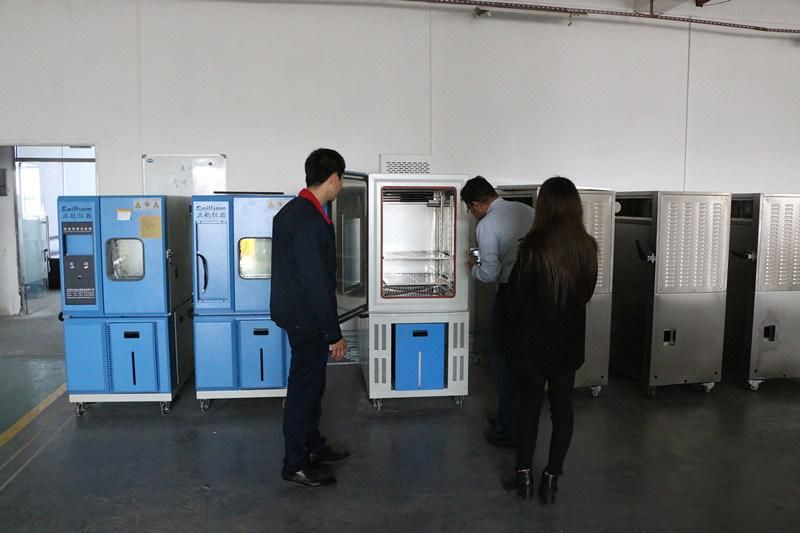

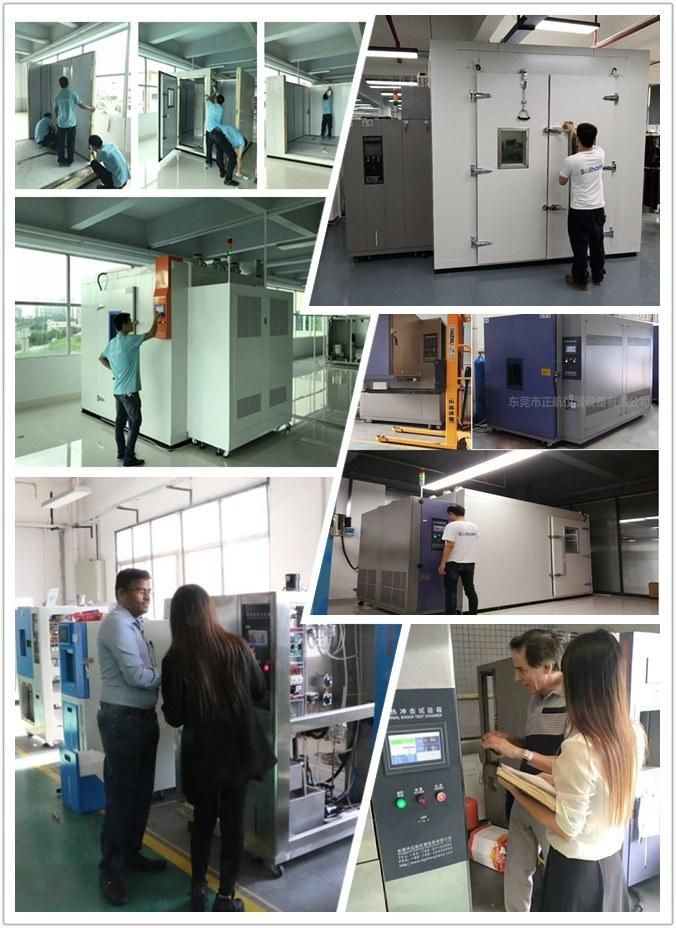

Exhibitions and customers visit our factory





FAQ:

Q: What's the payment term?

A: T/T, L/C and other payment terms could be negotiated.



Q:Do you accept customization service?
A:Yes, of course, we can not only offer standard High and Low Temperature Alternating Damp Heat Testing Chamber, but also customized machines according to your request. Don't hesitate to tell us your requirement, we will try our best to meet your needs.



Q:How about your warranty?
A:Generally, our warranty is one year. Within the warranty period, we can offer technique support, Feedback to you within 24 hours and help you to repair your problem controller freely, even it's not from our factory



Q:Can we visit your factory before order?
A:Yes, we warmly welcome and sincerely invite you or your team to visit our factory, we will help to arrange hotel and pick up you from airport.



Q: What's the delivery term?
A:At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15-20 working days after deposit receipt. If you are in urgent need, we can consider making special arrangement for you.



Q:How about the packing for machine, is it safely protected during transportation?
A: Testing Chamber is packed by standard export wooden box for outside package and stretch film for inner package, it won't be damaged. We've delivered many testing machines abroad by sea or by air without damage.
