Test Instrument

Simulated Transport Vibration Test Table

Sailham Equipment (Dongguan) Co., Ltd.
  • Max. Test Load:100kgs
  • Frequency Range:100-300 Rpm
  • Simulation Speed:25~40 Km,H
  • Amplitude Range:25.4 mm (1 Inch)
  • Work Table Size:L1200 * W1000mm, Customized
  • Standard:En,ANSI,UL,ASTM,Ista,GB,T4857.7-2005 etc.

Base Info

  • Model NO.:ZH-AT-100
  • Weight:150kgs
  • Speed Mode:DC Converter or AC Frequency Control
  • Power Capacity:1 HP
  • External Dimension(Lwh):1255*1070*660 mm
  • Transport Package:Wooden Case
  • Specification:Customization available
  • Trademark:Sailham
  • Origin:Guangdong, China
  • HS Code:8479899990
  • Production Capacity:5000sets,Year

Description

  Max. Test Load1KN (100kg)  Frequency Range100-300 rpm  Amplitude Range25.4 mm (1 inch)  Simulation Speed25~40 km/h  Vibration ModeGyrationExternal dimension  ( L× W× H )1255× 1070× 660 mm  Work table sizeL1200 * W1000mm  Speed ModeDC converter or AC Frequency Control  Power Capacity1 HP  Weight150 Kg  Power220V, 50 HzSet time0-99hrsStarting time set0-15s  Environmental ConditionsTemperature: 5~40° C;   Related Humidity < 85%StandardEN,ANSI,UL,ASTM,ISTA,GB/T4857.7-2005 etc.
Standard: EN71 ANSI,UL,ASTM ISTA

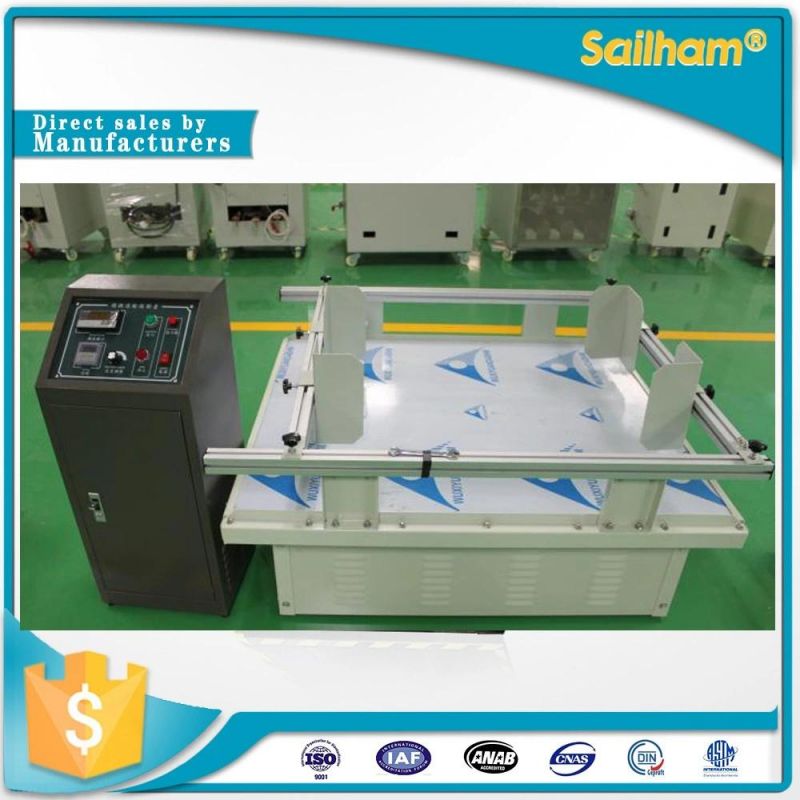

Machine image:

Simulated Transport Vibration Test Table

Trade show:
Simulated Transport Vibration Test Table
Simulated Transport Vibration Test Table

Certificates:
Simulated Transport Vibration Test Table

Export for wooden case:
Simulated Transport Vibration Test Table

FAQ
Why choose us?
1. Consider different countries plugs, manually change the-voltage from 110V to 220V, as insurance indicator.

2.Excellent After sale Service:
12 months warranty. Besides, we can help you to repair your equipment for free, even it's not from our factory. What can we do for you, just don't hesitant to contact us.

3.Commitment:
We will sign a letter of commitment while we sign the contract, which will improve your confidence to us.

4.Good Packaging:
Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.

How to Contact Us?
Please Send your inquiry Details in the below for our quotation,Click "Send" Now!
