Ipx3/4 Environmental Rain Spray Test Chamber

Sailham Equipment (Dongguan) Co., Ltd.
  • Certification：CE, ISO, Ce, RoHS, FCC, ISO, SGS Certificates
  • Warranty：3 Years
  • Internal Dimension (mm)：W1000 * H1000 * D1000 Customized
  • IP Degree：Ipx3, Ipx4 or Other IP1~8
  • Service Type：OEM , ODM , Non-Standard Available
  • Application：School, Hospital, Lab, Factory

Base Info

  • Model NO.：ZH-RS-1000
  • Power Supply：AC220V,AC380V, Customized
  • Rotating Speed：1 ~5rpm,Min, Adjustable
  • Water Pipe Diameter：φ16mm
  • Inner Material：SUS304 Stailess Steel
  • Meet The Standard：IEC60529,GB4208-2008, GB7000.1
  • Transport Package：Wooden Case
  • Specification：Customization available
  • Trademark：Sailham
  • Origin：Guangdong, China
  • HS Code：8479899990
  • Production Capacity：5000sets,Year

Description

IPX3, IPX4 or other IP1~8Sample shelf sizeφ400mmTest box rotating speed1 ~5rpm/min , adjustableSpray orifice diameterφ0.4mmWater pipe diameterφ16mmTest box materialHigh quality 304 stainless steel mesh plateSpray ring radius375 and 500mmSwing pipe±45°,±60°,±90°,±180°(theory number)Swing pipe swing1-300° (adjustable) stepper motor controlSwing pipe materialHigh quality 304 stainless steel seamless pipeMeet the standardIEC60529:1989+A1:1999,GB4208-2008,GB7000.1(IPX3,IPX4)
Ipx3/4 Environmental Rain Spray Test Chamber


Ipx3/4 Environmental Rain Spray Test Chamber

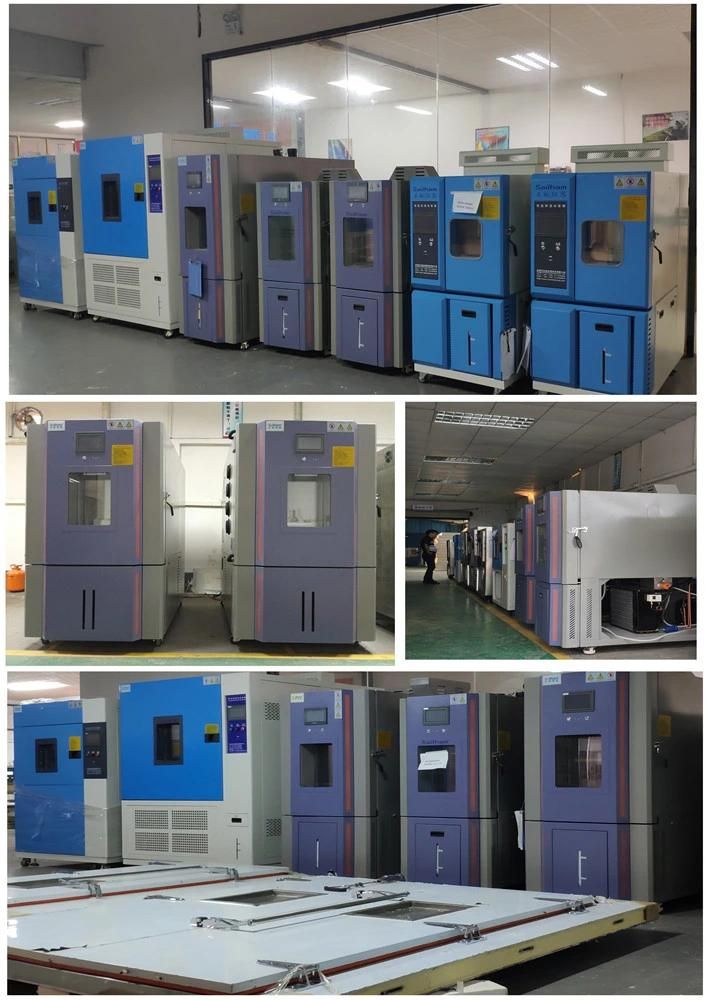

 Finished products. Ipx3/4 Environmental Rain Spray Test Chamber

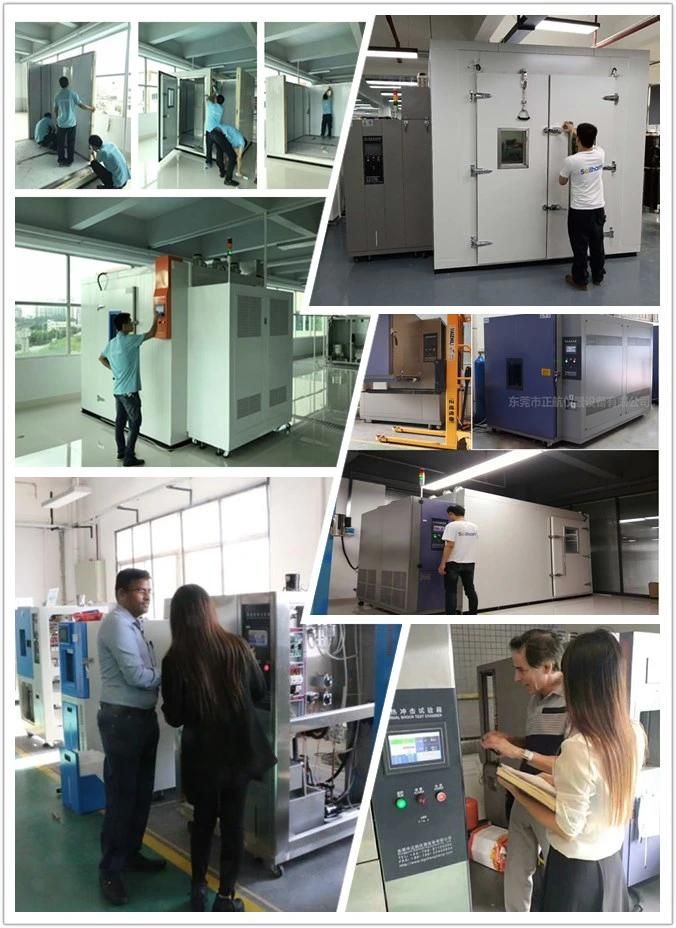

Installation.
Ipx3/4 Environmental Rain Spray Test Chamber

 Sailham CustomerIpx3/4 Environmental Rain Spray Test Chamber

 Certifications.

Ipx3/4 Environmental Rain Spray Test Chamber

FAQ.

Q: What's the payment term?
A: T/T, L/C and other payment terms could be negotiated.

Q: How to Choose a proper chamber?
A: Please let us know the product to be tested, include the max. size, the quantity per test, lowest shock temperature required and power-on test (mainly for electronic products or device) needed or not. We will provide several models to you for reference, the specification sheet in detail will be provided ASAP.

Q:Do you accept customization service?
A:Yes, of course, we can not only offer standard Environmental Chambers, but also customized machines according to your request. Don't hesitate to tell us your requirement, we will try our best to meet your needs.

Q:How about your warranty?
A:Generally, our warranty is one year. Within the warranty period, we can offer technique support, Feedback to you within 24 hours and help you to repair your problem controller freely, even it's not from our factory

Q:Can we visit your factory before order?
A:Yes, we warmly welcome and sincerely invite you or your team to visit our factory, we will help to arrange hotel and pick up you from airport.

Q: What's the delivery term?
A: If we don't have any units in stock. normally, the delivery time is 25 working days after deposit receipt. If you are in urgent need, we can consider making special arrangement for you.

Q:How about the packing for machine, is it safely protected during transportation?
A: Testing Chamber is packed by standard export wooden box (fumigation-free wooden case) for outside package and stretch film for inner package, it won't be damaged. We've delivered many testing machines abroad by sea or by air without damage.

Q: Do you have any certificates for this chamber or for your company?
Yes, we got CE, RoHS and FCC certificates for the normal models. Sailham have also got the SGS and BV certificated, have passed ISO 9001: 2015.
