• Model NO.：PN-BSM600
• Specification：SGS, ISO, CE
• Trademark：PNSHAR
• Origin：Hangzhou, Zhejiang
• HS Code：90248000
• Production Capacity：500sets,Year

Basic Info.

Model NO. PN-BSM600 Specification SGS, ISO, CE Trademark PNSHAR Origin Hangzhou, Zhejiang HS Code 90248000 Production Capacity 500sets/Year

Product Description

1. INTRODUCTION

Automatic Bursting Strength Tester/Test Machine/Instrument/Equipment is a new type testing instrument to test the bursting strength of corrugated boards, which is designed to be in accordance with related ISO standards and on the principle of modern mechanical design concept and design criterion of human-machine engineering.

Automatic Bursting Strength Tester/Test Machine/Instrument/Equipment

belongs to electromechanical product which is with novel design, convenience for use, excellent performance and elegant appearance.
PN-BSM600 Bursting Strength Tester has multi functions, such as, parameter testing, parametric transformation, parameter adjusting, parameter memory and parameter print. All are in accordance with related national standards. PN-BSM600 Bursting Strength Tester has data processing function which can directly output result of data statistics with convenient operation, easy regulation and stable performance.
2. PRINCIPE:
A test piece placed over a circular elastic diaphragm, it is rigidly clamped at the periphery but free to bulge with the diaphragm. Hydraulic fluid is pumped at a constant rate, and bulged the diaphragm until the test piece ruptures. The bursting strength of the test piece is the maximum value of the applied hydraulic pressure.
3. APPLICATIONS:
Corrugated cardboard, Corrugated Package.
4. STANDARDS:
ISO 2759, GB/T 1539, QB/T 1057.
5. SPECIFICATIONS:
1). Power: AC220V+/-10% 2A 50Hz
2). Measuring Range: 300~5500kPa
3). Compression rate: 170+/-15ml/min
4). Resolution: 0.1kPa
5). Accuracy: More than 99.5 %
6). Diaphragm size: Bulge height: 2.5+/-0.2mm
Bulge diameter: 27.8mm
7). Diaphragm resistance: When the bulge height is 10mm, the pressure is 170~220kpa
When the bulge height is 18mm, the pressure is 250~350kpa
8). Upper clamp: 31.5+/-0.05mm
9). Lower clamp: 31.5+/-0.05mm
10). Hydraulic transducer: <6000kpa
11). Clamp pressure: More than 690kpa

Company Introduction:
PNSHAR, as one SGS-Audited company & ISO-Certified company, has been engaged in the R&D and production of lab equipment for paper & packaging industries since 1985.Our products has achieved CE certificate.
As the leading manufacturer from China, we are enjoying the Chinese market, competing the European suppliers, American suppliers and Taiwan Suppliers.
Based on good quality and reliable performance, our lab equipments also have been exported to more than 50 countries, such as follows:
1). Europe: Italy, Germany, Hungry, Macedonia, Latvia, Czech, Switzerland, Russia, Poland, Turkey etc;
2). Asia & Oceania: Japan, Indonesia, Singapore, Australia, Hongkong, South Korea, Iran, Thailand, Viet Nam, India, Bangladesh, Jordan, Saudi Arab, Bahrain, Pakistan, Malaysia, Philippines, Myanmar, Taiwan, Oman, Uzbekistan, etc;
3). America:USA, Mexico, Argentina, Brazil, Peru, Costa Rica, Guyana, Uruguay, etc;
4). Africa: Kenya, Egypt, South Africa, Cote d'Ivoire, Cameroon, etc

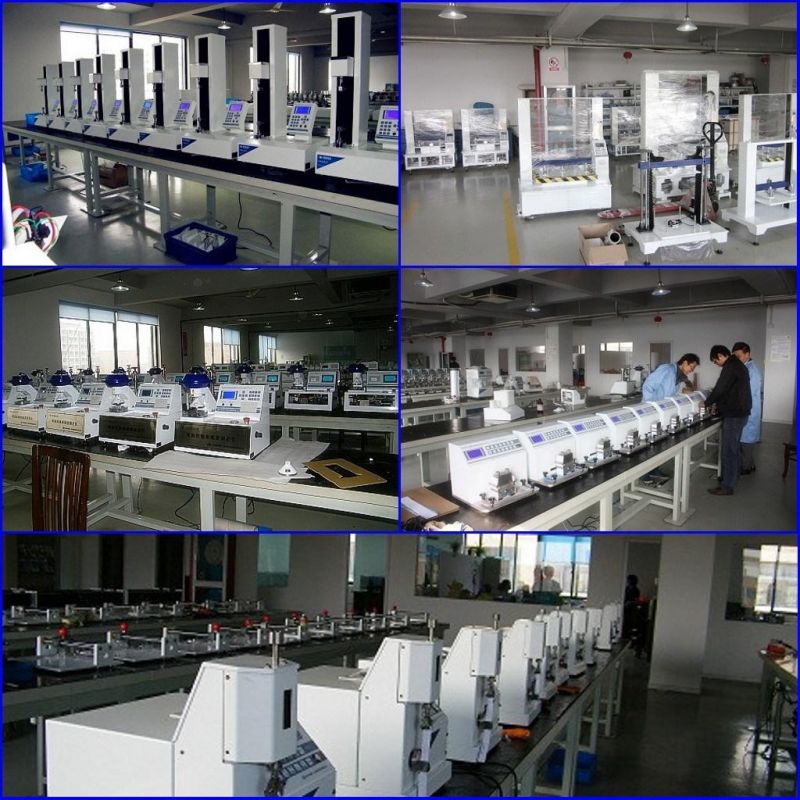

OUR WORKSHOP:

OUR CERTIFICATE:

OUR CUSTOMERS
