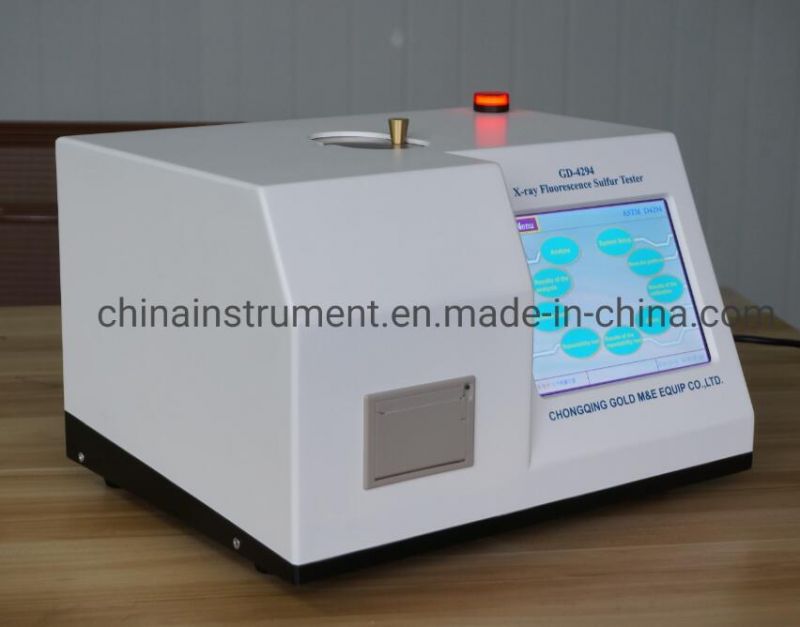

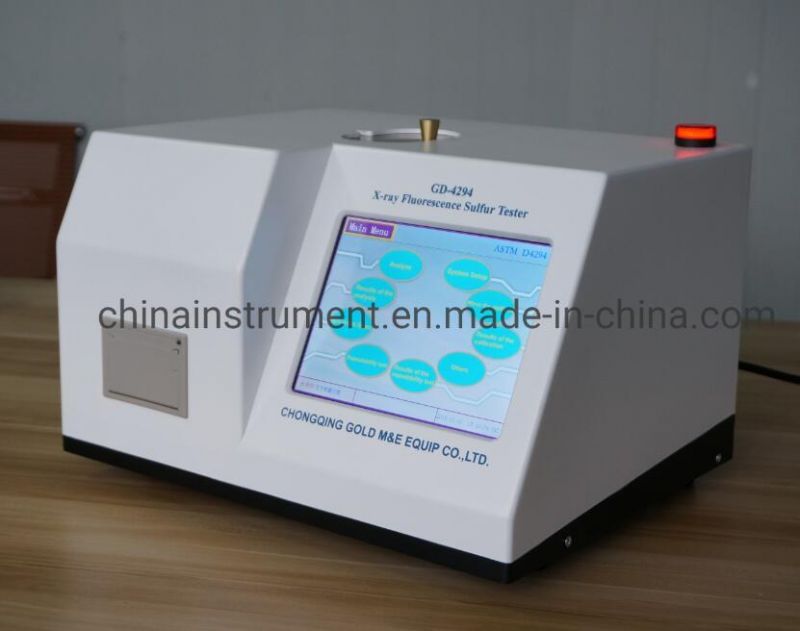

• Model NO.：GD-4294
• Accuracy Grade：0.5
• Load Way：Electronic Load
• Loading Method：Dynamic Load
• Display：Digital
• Control：Computer Control
• Weight：0-100Kg
• Power Source：AC220V
• Oil Cylinder Position：Under
• Transport Package：Wooden Case
• Specification：620mm*460mm*355mm
• Trademark：GOLD
• Origin：China
• HS Code：9031809090
• Production Capacity：200units,Month

(1) Measuring range20ppm to 5%(2) Repeatability (r) <0.02894 (X+0.1691)(3) Reproducibility (R) <0.1215(X+0.5555)(4) Detection limit: 7 ppm(5) Oil sample quantity2.5 ml (it is equal to sample depth of 4.5 mm)(6) Measurement time

it can preset 60, 120, 240, 300, and 600 s

at random

(7) It can make measurement automatically for single sample. Repeat times

can set 2, 3, 5, 10, and 50 at random it will show

average value and standard deviation at end

 of measurement.

(8) Calibration curve numbers: it can save 9 calibration curves

5 pieces of them are unary linear equation and

 4 pieces of them

are unary quadratic equation.

(9) Working conditionAmbient temperature: 5~40ºC
 Relative humidity: ≤85% (30 ºC)(10) Power supply: AC 220V±20V, 50 Hz; Rated power30 W(11) Dimension and weight: 468mm×368mm×136mm13 kg

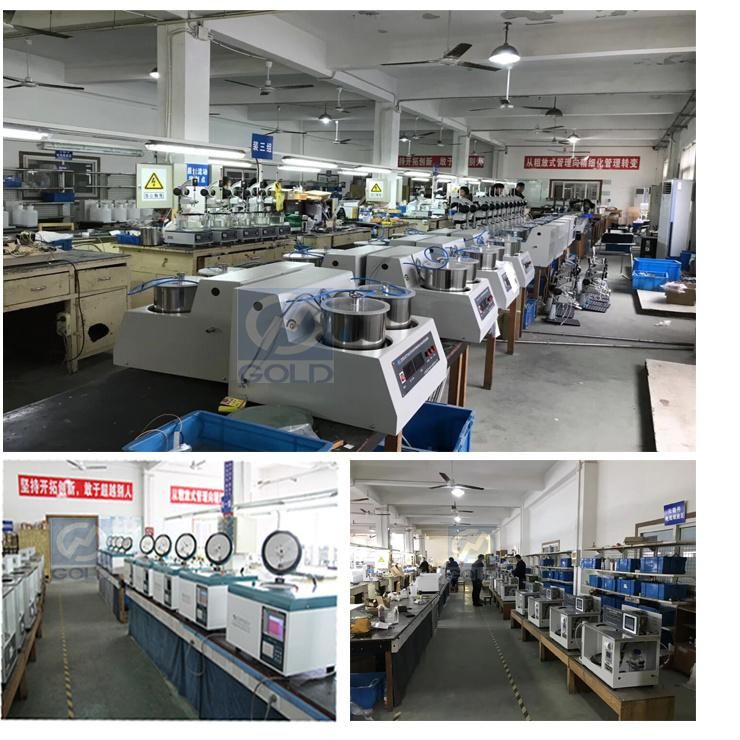

Workshop

Chongqing Gold Mechanical&Electrical Equipment Co., Ltd is a professional manufacturer of Petroleum Products test kits and

electrical testing equipment in China. Our products are sold to most countries in the world and they are highly popular because of our good

quality and after-sale service.




At present, there are more than 150 employees, of whom more than 70% are technical personnel with a college degree or above. With strong technical force and strong development, new products have been launched continuously.


Exhibition



We have developed sales channels in many countries such as the UAE, Saudi Arabia,Malaysia, Thailand, Pakistan, India, Germany, Belgium, the USA, Mexico, Kenya, Nigeria, South Africa, and other countries worldwide. And we have gained a strong advantage and high reputation in the international market.

After several years' development, our products have become highly intelligent and wide coverage.
And our company has become one of the leading manufacturers of petroleum testing instrument and electrical testing instrument.

Packing

Goods are packed in veneer case, which is firm and safe for overseas shipment.
