Test Instrument

Cbr Testing Machine

Zhejiang Tugong Instrument Co., Ltd.
  • Type:Material Testing Machine
  • Maxcapacity:50kn
  • Accuracy Grade:1
  • Load Way:Electronic Load
  • Display:Dial Gauge
  • Control:Manual Control

Base Info

  • Model NO.:STCBR-1
  • Weight:0-100Kg
  • Power Source:AC220V
  • Product Name:Cbr Testing Machine
  • Max. Load:30kn, 50kn Capacity
  • Main Frame(mm):560×450×1080
  • Controller(mm):570×490×330
  • Test Speed:1.27mm,Min or 1 mm,Min
  • Penetration Rod Size:Dia. 50X100mm
  • Transport Package:Standard Wooden Packing
  • Trademark:YF
  • Origin:China
  • HS Code:9031809090
  • Production Capacity:100PCS,Month

Description

Basic Info.

Model NO. STCBR-1 Weight 0-100Kg Power Source AC220V Product Name Cbr Testing Machine Max. Load 30kn, 50kn Capacity Main Frame(mm) 560×450×1080 Controller(mm) 570×490×330 Test Speed 1.27mm/Min or 1 mm/Min Penetration Rod Size Dia. 50X100mm Transport Package Standard Wooden Packing Trademark YF Origin China HS Code 9031809090 Production Capacity 100PCS/Month

Product Description

CBR Testing Machine
1.General description
The machine features a rigid two-column frame with upper crossbeam, which can be adjusted in height and locked in position with lock nuts.
The drive force is provided by an linkage of motor, worm and worm wheel housed in the base cabinet, which also accommodates the motor and the electric panel. Can operated both by motor and manual handle.

2.Specification
1. Max. load: 30KN,50KN capacity.
2. Test speed: 1 mm/min (BS standard ) or 1.27 mm/min
 (ASTM/EN standard)
3. Size of the penetration rod: Dia. 50×100mm
Packing:
Main frame(mm): 560×450×1080
Controller(mm):570×490×330

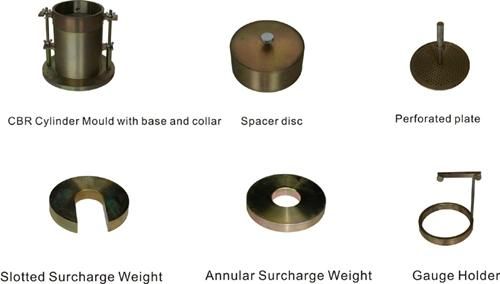

CBR ACCESSORIES
Cbr Testing Machine

3.Why Choose Us?

1, Established in 1981, with the 35 years of development, YF has development more than 14 modernized standard workshops, which be equipped with complete vehicle, gear, milling, grinding and boring machine, and covered 26,680 sqm2 workshop.
2,YF obtained the ISO9001,14001 and European Standard CE certification
3, YF brand was authorized as "ZheJiang Famous Brand"and "National Key New High-Tech Enterprise"
4. Full range of Products, including steel soil, asphalt, concrete, cement, motor and rock,
 offering you one-stop purchase, save your money and delivery time.
5. Great Production Capacity, 14 modernized standard workshops
6. Experienced  Engineer & Satisfactory After-sales Service
7.MOQ:1 set is available

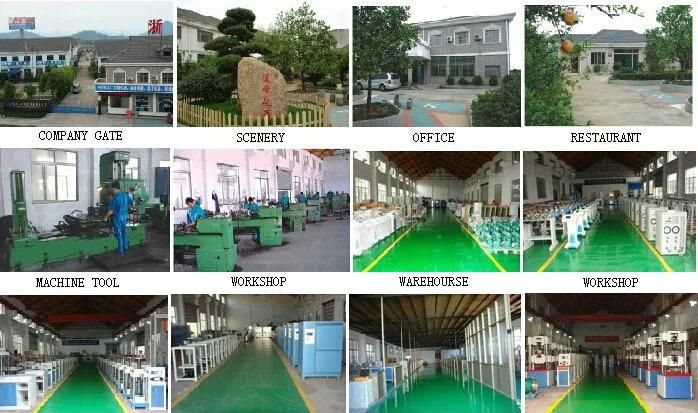

4.Production workshop

Cbr Testing Machine

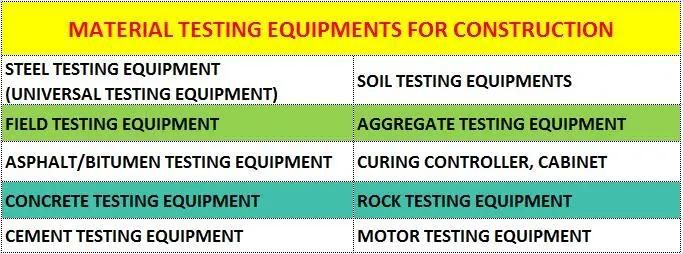

5.Product Line
Cbr Testing Machine
6.Packaging
Packaging: Standard export wooden case
Delivery: About 3-20 days according to the order

Cbr Testing Machine
7.Our Service
1. Value clients, guarantee equipment quality and answer clients' questions anytime and anywhere.
2. Customizing machines according to clients' inquiry, such as different design, different brand parts, different colors, more function, designed logo etc.
3. If possible, Engineers could go to clients' factory in time for installation, training and trial production.
4. More spare parts are given to clients for free to ensure the factory working without suddenly stop.
5.1 year free warranty, Lifetime technical service support.

8.FAQ
What's the delivery time?
Delivery time from 3 days-20 days according to the products.
What's your payment terms?
We accept T/T, L/C or Western Union.
What's your terms of trade?
We accept EXW, FOB, CNF, CIF, AND SO ON.
Do you have any exhibitions?
Yes. We have many exhibitions in domestic and abroad. If you come to canton fair, pls contact with us, we will tell you booth No..
Certificates (ISO9001 AND ISO 14001)
Cbr Testing Machine
