Electronic Temperature Salt Spray Environmental Test Equipment
Dongguan Haida Equipment Co., Ltd.- Type:Salt Spray Testing Machine
- Accuracy Grade:0.5
- Display:Digital
- Control:Manual Control
- Weight:100-500Kg
- Power Source:AC220V
Base Info
- Model NO.:HD-E808-120
- Standards:Cns, JIS, ISO, ASTM
- Certificate:ISO9001: 2008
- Warranty Period:12 Months
- Delivery:7 Days After Receiving Deposit
- Various Capacity:108L, 270L, 600L...
- pH:Nss Acss6.5~7.2 Cass 3.0~3.2
- Design Criteria:Cns, JIS, K5400, Z2371, ASTM
- Brine Temperature:35°c±1°c
- Temperature Precision:±1°c
- Power:1AC220V
- Transport Package:Strong Wooden Case
- Specification:ISO9001: 2008
- Trademark:Haida
- Origin:Dongguan, China
- HS Code:9031809090
- Production Capacity:150 Sets,Month
Description
Basic Info.
Model NO. HD-E808-120 Standards Cns, JIS, ISO, ASTM Certificate ISO9001: 2008 Warranty Period 12 Months Delivery 7 Days After Receiving Deposit Various Capacity 108L, 270L, 600L... pH Nss Acss6.5~7.2 Cass 3.0~3.2 Design Criteria Cns, JIS, K5400, Z2371, ASTM Brine Temperature 35°c±1°c Temperature Precision ±1°c Power 1AC220V Transport Package Strong Wooden Case Specification ISO9001: 2008 Trademark Haida Origin Dongguan, China HS Code 9031809090 Production Capacity 150 Sets/MonthProduct Description

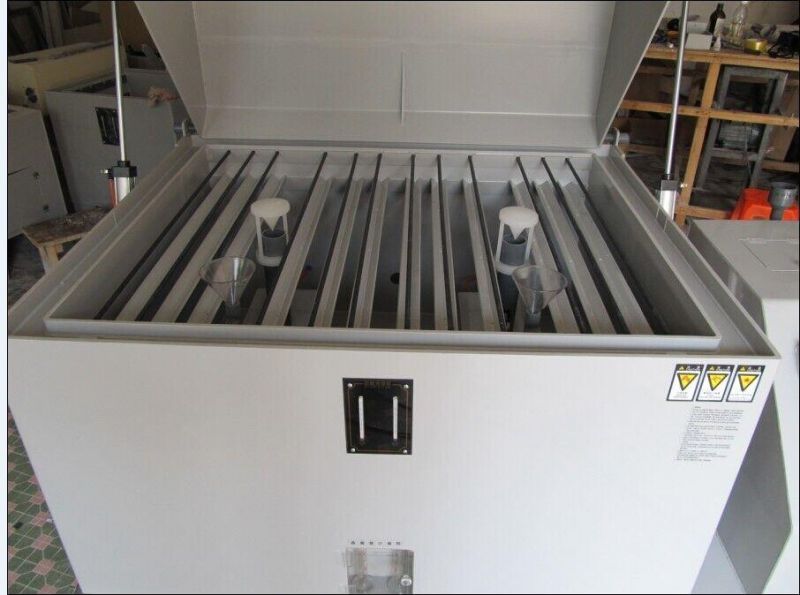

Electronic Temperature Salt Spray Environmental Test Equipment
Salt Spray Fog Tester adapted to the surface treatment of various materials, including paint, electroplating, organic and inorganic coating, anode processing, antirust oil and so on, after these anti-corrosive treatment to test the corrosion resistance of their products.
Design Standards:
1, CNS: 3627, 3385, 4159, 7669, 8886
2, JIS: D0201, H8502, H8610, K5400, Z2371
3, ISO: 3768, 3769, 3770
4, ASTM: B117, B268
Features:
1, Has a transparent test area that is impervious to corrosion.
2, Provides continuous direct visual observation of the test item.
3, Contains thermostats and metallic items made of Monel to avoid transference and minimize corrosion.
4, Provides lucite rods to hang or support items within the test area.
5, Performscontinuous unattended tests for up to 72 hours.
Model | HD-E808-120 Salt Spray Fog Tester |
Inner Box Size (L× W× H) | 120× 100× 50 cm |
Outside Box Size(L× W× H) | 190× 130× 140 cm |
Equipment Material | Both inside & outside shell of salt spray test machine adopt imported P. V. C rigid plastic board, and tank cover uses imported transparent P. V. C. rigid plastic board |
Temperature Range | 35 centigrade degrees to 55 centigrade degrees |
Temperature Fluctuations | ≤ ± 0.5 centigrade degrees |
Temperature Uniformity | ≤ ± 2 centigrade degrees |
Temperature Precision | ± 1 centigrade degrees |
Test Chamber Temperature | Salt Spray Method (NSS ACSS)35± 1 centigrade degrees Corrosion-resistant Testing Method (CASS) 50± 1 centigrade degrees |
Saturated air Barrel Temperature | Salt Spray Method (NSS ACSS)47± 1 centigrade degrees Corrosion-resistant Testing Method (CASS) 63± 1 centigrade degrees |
Brine Temperature | 35 centigrade degrees± 1 centigrade degrees |
Spray Quantity | 1.0~2.0 ml / 80cm2 / hr |
PH | Salt Spray Method (NSS ACSS6.5~7.2) Corrosion-resistant Testing Method(CASS)3.0~3.2 |
Lab Volume | 600L |
Brine Tank Capacity | 40L |
Power | AC220V, 10A |
Multiple Safety Protection Devices | Current discharge protection, over pressure protection, over temperature protection, over load fuse protection |
Accessories | Testing Salt/ Measuring tank/ Equipment each 1 set |
Standard | CNS: 3627, 3385, 4159, 7669, 8886; JIS: D0201, H8502, H8610, K5400, Z2371; ISO: 3768, 3769, 3770; ASTM: B117, B-117, B268 |
After-service:
If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-con.
FAQ
Q:Are your company a trading one or a factory?
A:Factory + trade (integration),More than 12 years focusing on test equipment field,6 years exporting experience.
Q:After an order is placed, when to deliver?
A:Generally about 10-25days, If we have inventory, we can arrange shipment within 3 days.
Please be aware that our production lead times depend on specific items and item quantities.
Q:What about the warranty with after - sales services?
A:The testing machine is guaranteed for 12 months by HAIDA,we can help you to repair
your problem controller freely,even it's not from our factory. After the warranty, the professional after-sale service team will provide perfect technical support and help guests solve problems encountered while using our product, handles guest problems and complaints in a professional and timely.
Q:What about the product' services and quality?
A:Each equiopment must be carried out 100% quality examination and test when shipping and delivery goods. Product use training, each of our product provide video training to show you how to install & operate. We can arrange engineer to train the operation of equipment to customer's company when you need. products are widely recognized and trusted byusers.
