• Model NO.：HD-E808
• Weight：100-500Kg
• Power Source：AC220V
• Certificate：ISO9001: 2008
• Warranty Period：12 Months
• Delivery：15 Days After Receiving The Deposit
• pH：Nss Acss6.5~7.2 Cass 3.0~3.2
• Design Criteria：Cns, JIS, K5400, Z2371, ASTM
• Spray Quantity：1.0~2.0 Ml , 80cm2 , Hr
• Brine Temperature：35°c±1°c
• Test Chamber Temperature：Nss Acss 35±1°c Cass:50±1°c
• Temperature Precision：±1°c
• Power：1AC220V
• Transport Package：Strong Wooden Case
• Specification：ISO9001: 2008
• Trademark：Haida
• Origin：China
• HS Code：9031809090
• Production Capacity：80 Sets,Month

Basic Info.

Model NO. HD-E808 Weight 100-500Kg Power Source AC220V Certificate ISO9001: 2008 Warranty Period 12 Months Delivery 15 Days After Receiving The Deposit pH Nss Acss6.5~7.2 Cass 3.0~3.2 Design Criteria Cns, JIS, K5400, Z2371, ASTM Spray Quantity 1.0~2.0 Ml / 80cm2 / Hr Brine Temperature 35°c±1°c Test Chamber Temperature Nss Acss 35±1°c Cass:50±1°c Temperature Precision ±1°c Power 1AC220V Transport Package Strong Wooden Case Specification ISO9001: 2008 Trademark Haida Origin China HS Code 9031809090 Production Capacity 80 Sets/Month

Product Description

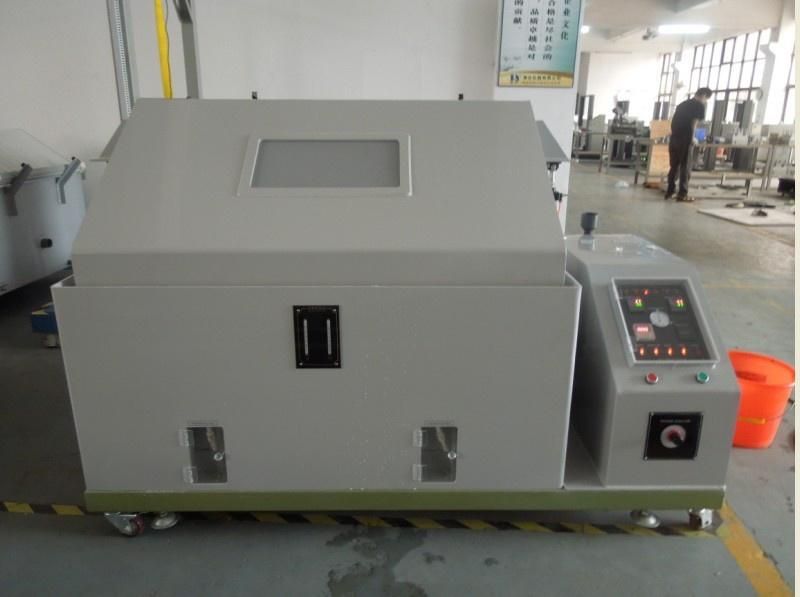

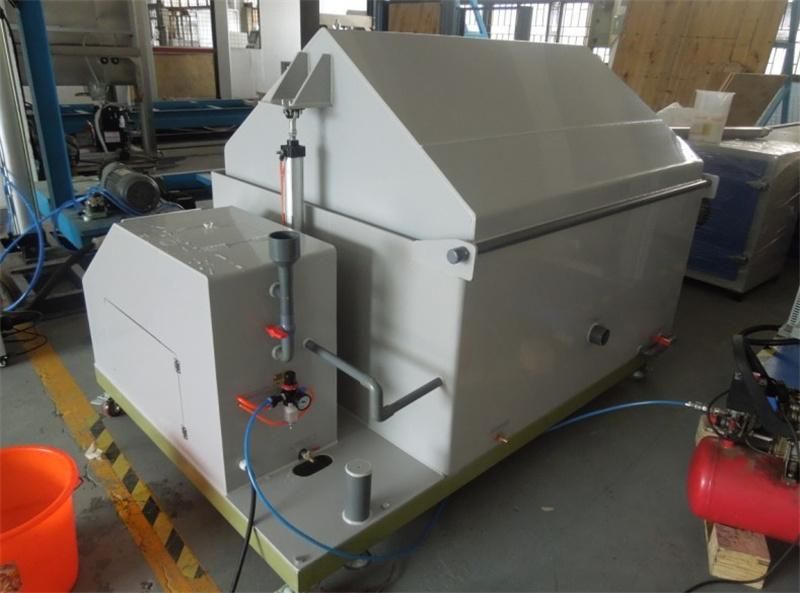

                                                    Temperature Salt Spray Environmental Test Equipment

Salt spray tester adapted to the surface treatment of various materials, including paint, electroplating, organic and inorganic coating, anode processing, antirust oil and so on, after these anti-corrosive treatment to test the corrosion resistance of their products.


Model	HD-E808-120 salt spray tester
Inner Box Size (L× W× H)	120× 100× 50 cm
Outside Box Size(L× W× H)	190× 130× 140 cm
Equipment Material	Both inside & outside shell of salt spray test machine adopt imported P. V. C rigid plastic board, and tank cover uses imported transparent  P. V. C. rigid plastic board
Temperature Range	35  centigrade degrees to 55 centigrade degrees
Temperature Fluctuations	≤ ± 0.5 centigrade degrees
Temperature Uniformity	≤ ± 2 centigrade degrees
Temperature Precision	± 1 centigrade degrees
Test Chamber Temperature	Salt Spray Method (NSS ACSS)35± 1 centigrade degrees Corrosion-resistant Testing Method (CASS) 50± 1 centigrade degrees
Saturated air Barrel Temperature	Salt Spray Method (NSS ACSS)47± 1 centigrade degrees Corrosion-resistant Testing Method (CASS) 63± 1 centigrade degrees
Brine Temperature	35 centigrade degrees± 1 centigrade degrees
Spray Quantity	1.0~2.0 ml / 80cm2 / hr
PH	Salt Spray Method (NSS ACSS6.5~7.2) Corrosion-resistant Testing Method(CASS)3.0~3.2
Lab Volume	600L
Brine Tank Capacity	40L
Power	AC220V, 10A
Multiple Safety Protection Devices	Current discharge protection, over pressure protection, over temperature protection, over load fuse protection
Accessories	Testing Salt/ Measuring tank/ Equipment  each 1 set
Standard	CNS: 3627, 3385, 4159, 7669, 8886; JIS: D0201, H8502, H8610, K5400, Z2371; ISO: 3768, 3769, 3770; ASTM: B117, B-117, B268

Our company Introduction:
HAIDA INTERNATIONAL is a professional manufacturer of various kinds of testing equipments over 24 years. HAIDA products are widely used in paper products, packaging, ink printing, adhesive tapes, bags, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products and other industries, and applicable to all scientific research units, quality inspection institutions and academic fields.
