Th2882A-3 Impulse Winding Test Equipment Single Phase
Changzhou Chuangkai Electronic Co., Ltd.- After-sales Service：Lifelong
- Warranty：1 Year
- Detection Output：Pass,Fail Display , Alarm
- Display：320X240 Dots LCD
- Input Impedance：10mohm (Resistive Voltage Divider)
- Trigger Mode：Internal,Manual (Foot), External, Bus
Base Info
- Model NO.：TH2882A-3
- Interface：Handler (Start, Stop, Pass Ng, Busy,Eoc,etc.), RS2
- Measuring Speed：5.5 Times,Sec (Waveform Display off, Pass,Fail on
- Waveform Measurement：Voltage, Time, Frequency
- Product Name：Th2882A-3 Impulse Winding Test Equipment Single
- Type of Coil：Single-Phase
- Average Rate：1 to 99 ,Programmable
- Transport Package：Carton
- Specification：55x55x33cm
- Trademark：CKT
- Origin：China
- HS Code：9030332000
- Production Capacity：3000 Sets Per Month
Description

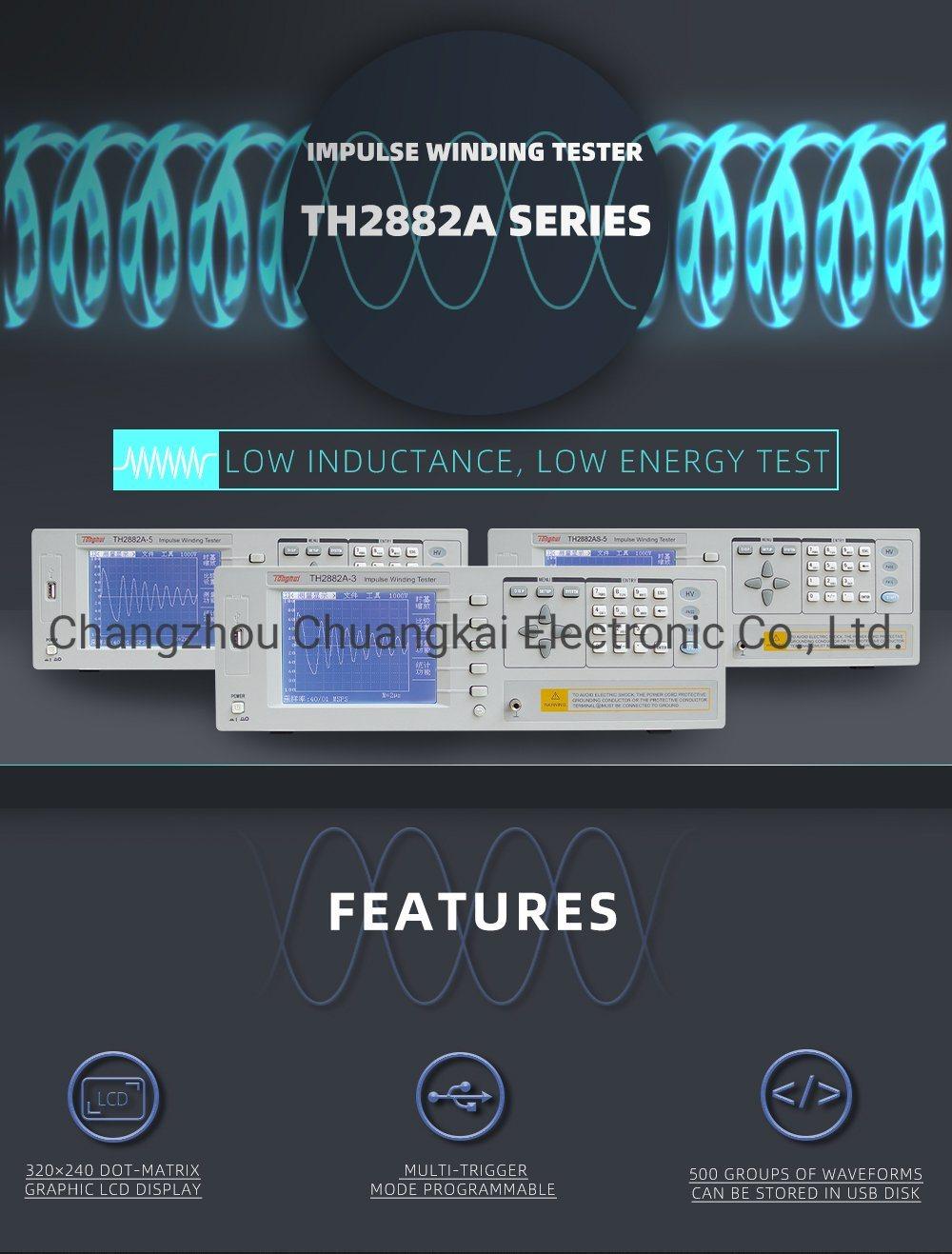

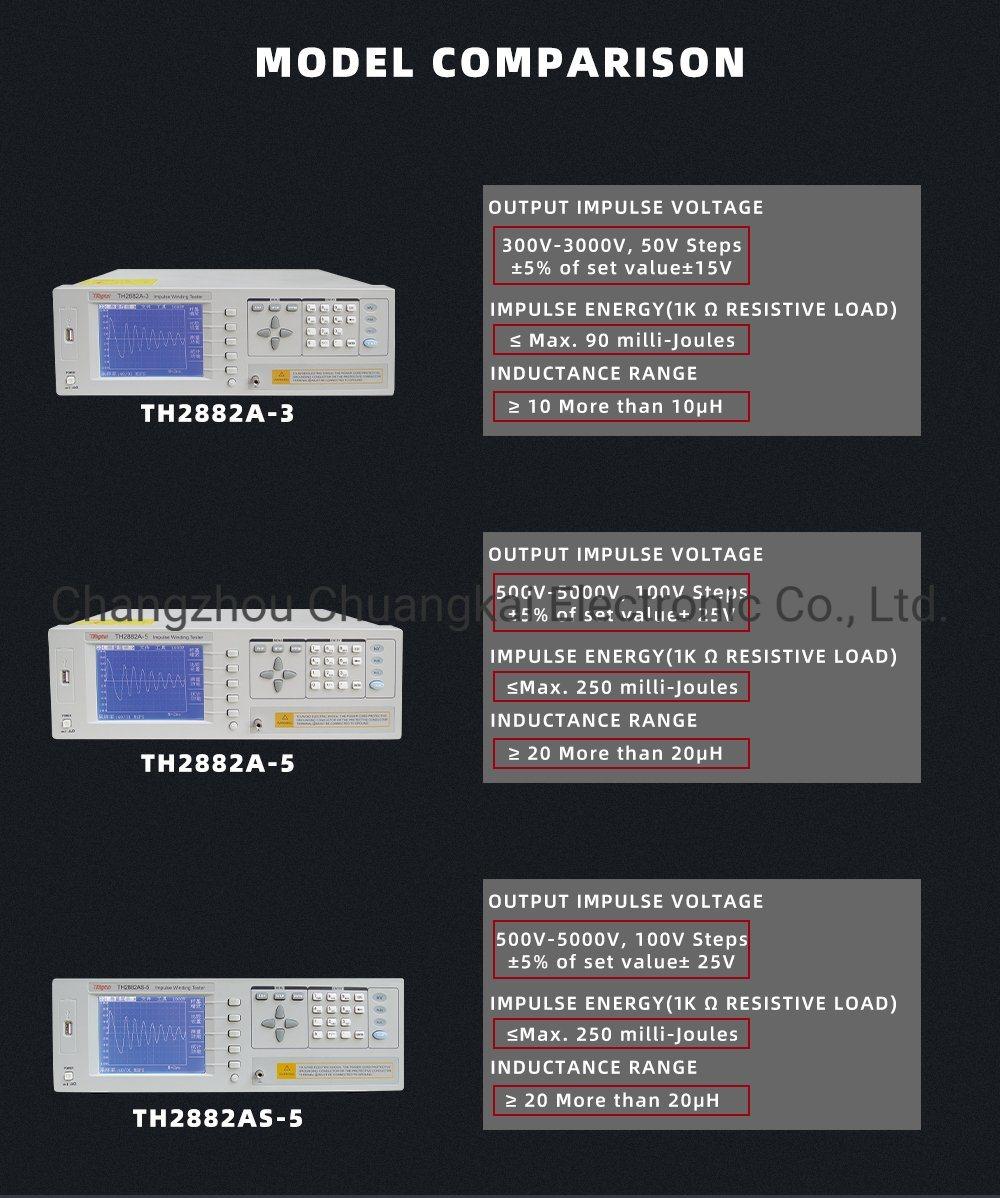

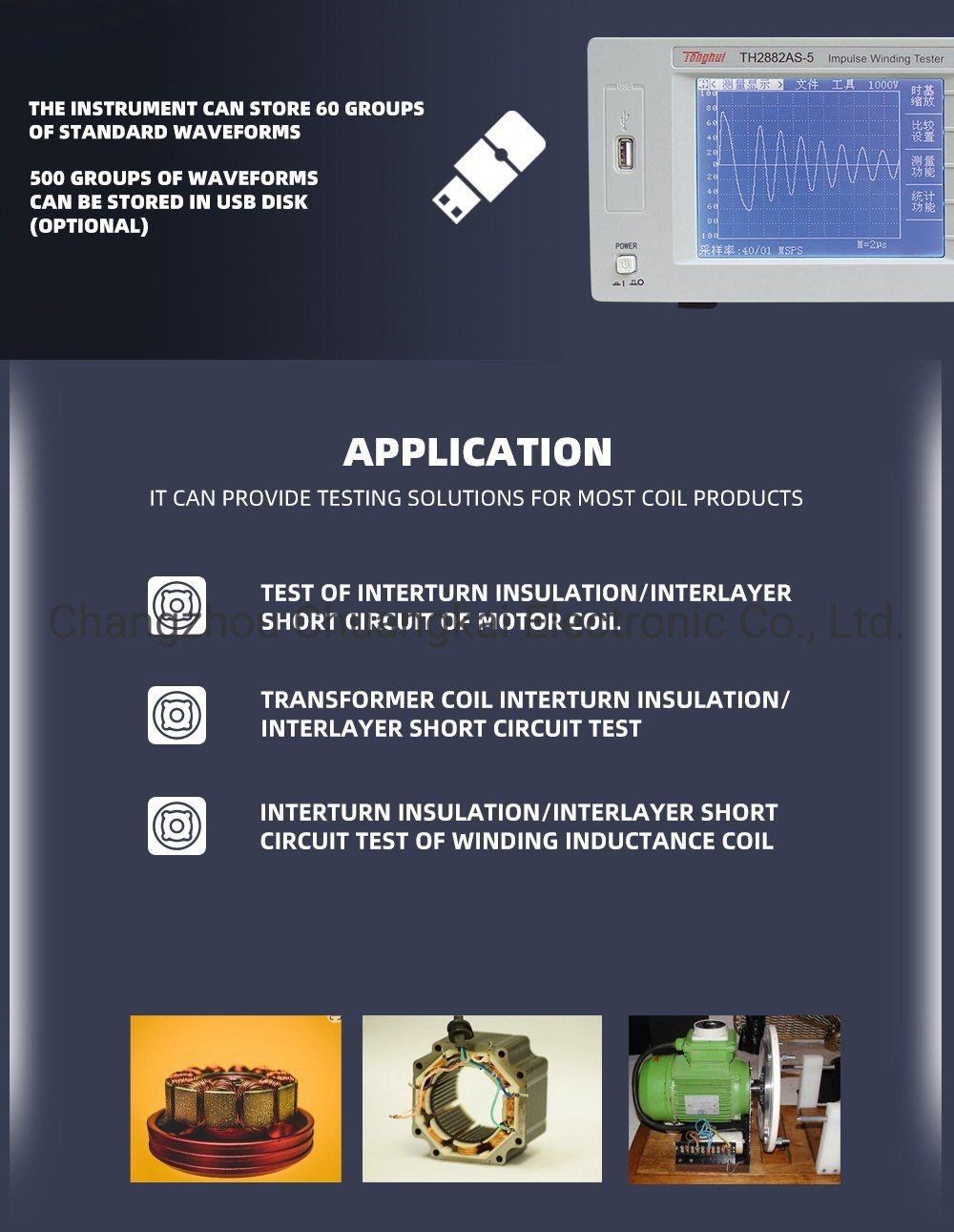

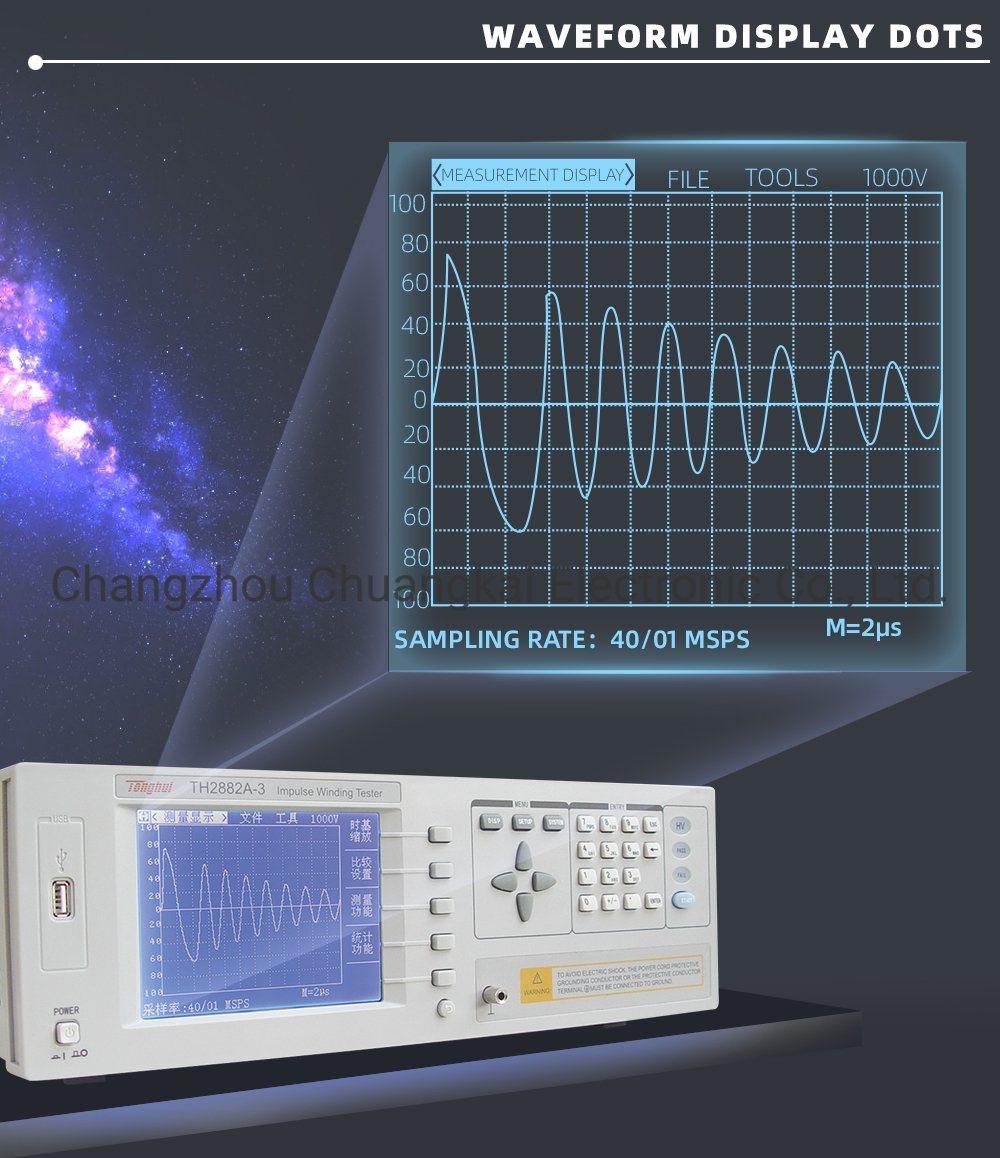

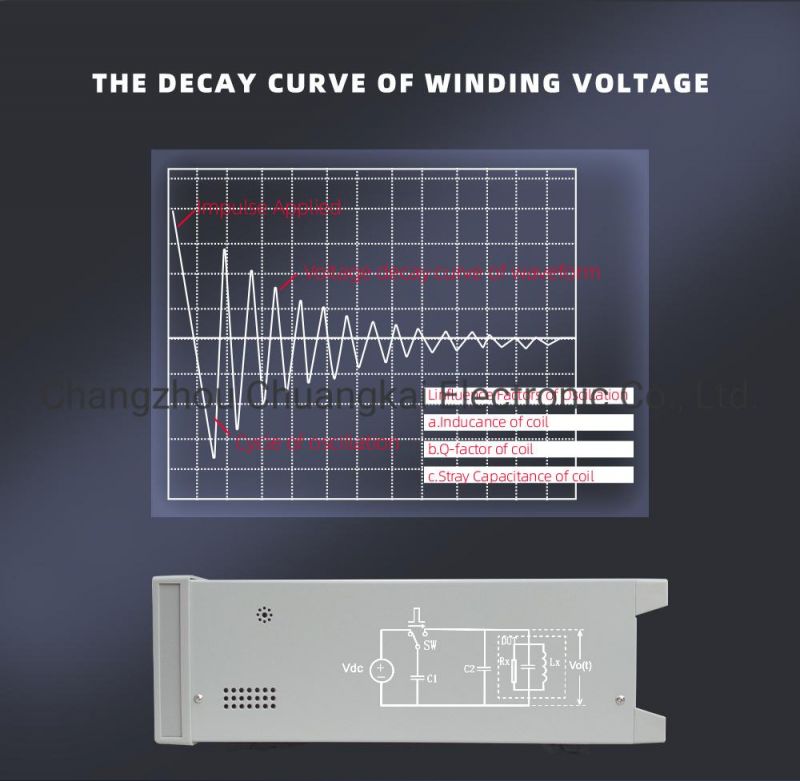

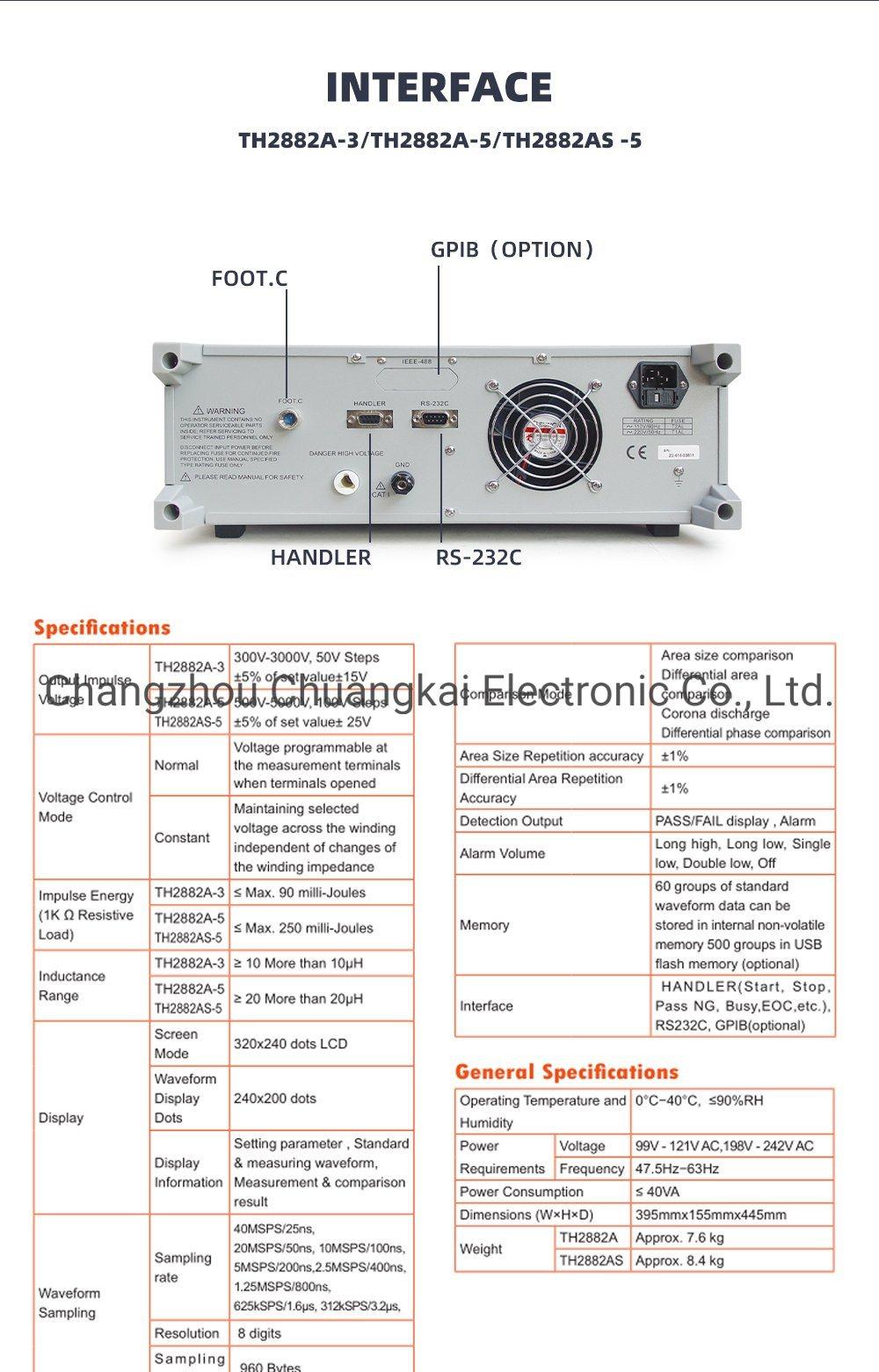

Output Impulse Voltage 300V-3000V, 50V Steps ± 5% of set value ± 15V 500V-5000V, 100V Steps ± 5% of set value± 25V Voltage Control Mode Normal Voltage programmable at the measurement terminals when terminals opened Constant Maintaining selected voltage across the winding independent of changes of the winding impedance Impulse Energy (1K ohm Resistive Load) ≤ Max. 90 milli-Joules ≤ Max. 250 milli-Joules Type of Coil Single-phase Three-phase three-wire system Three-phase four-wire system Inductance Range ≥ 10μH ≥ 20μH ≥ 200μH Display Screen Mode 320x240 dots LCD Waveform Display Dots 240x200 dots Display Information Setting parameter, Standard & measuring waveform, Measurement & comparison result Waveform Sampling Sampling Rate 40MSPS/25ns, 20MSPS/50ns, 10MSPS/100ns, 5MSPS/200ns, 2.5MSPS/400ns, 1.25MSPS/800ns, 625kSPS/1.6μs, 312kSPS/3.2μs Resolution digits Sampling Length Bytes Input Impedance 10MΩ (Resistive voltage divider) Measuring Speed 5.5 times/sec (Waveform display OFF, PASS/FAIL ON) 3.3 times/sec (Waveform display ON, PASS/FAIL ON) Average Rate 1-99, Programmable Waveform Measurement Voltage, Time, Frequency Trigger Mode Internal/Manual (Foot)/External/ BUS Comparison Mode Area size comparison, Differential area comparison, Corona discharge differential phase comparison Area Size Repetition Accuracy ±1% Differential Area Repetition Accuracy ±1% Detection Output PASS/FAIL display, Alarm Alarm Volume Long high, Long low, Single low, Double low, Off Memory groups of standard waveform data can be stored in internal non-volatile memory 500 groups in USB flash memory (optional) Interface HANDLER (Start, Stop, Pass NG, Busy, EOC, etc.), RS232C, GPIB(optional) Company Profile https://ckt2017.en.made-in-china.com/contact-info.html

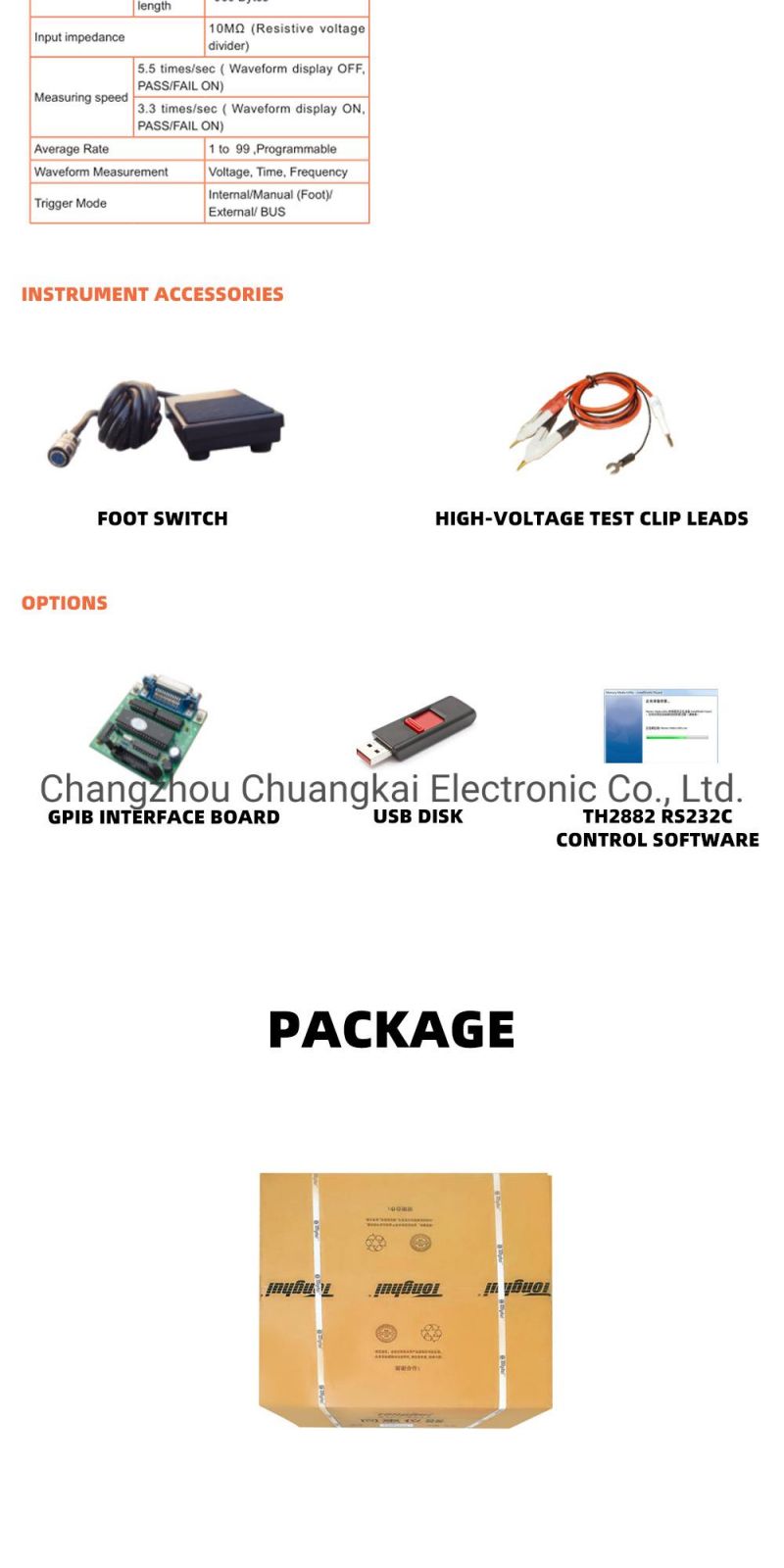

Packaging & Shipping
Chuangkai Electronic Co., Ltd is leading company specialized in producing, developing & selling various types of measuring instruments and testing equipment, such as temperature data logger, LCR meter, DC resistance tester (micro ohm meter), digital power meter, power supply, transformer tester, battery tester, programmable DC electronic load, charger, temperature controller, tachometer, high voltage signal-amplifier, power amplifier, etc.
