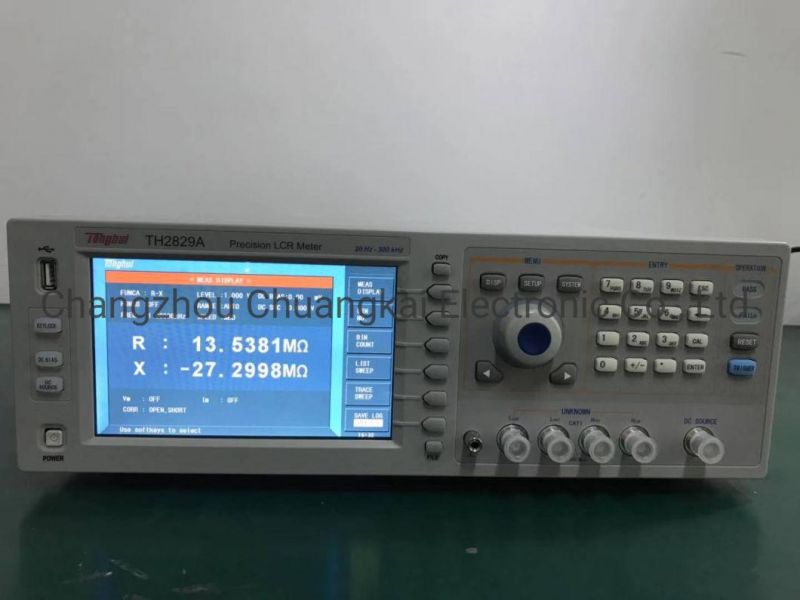

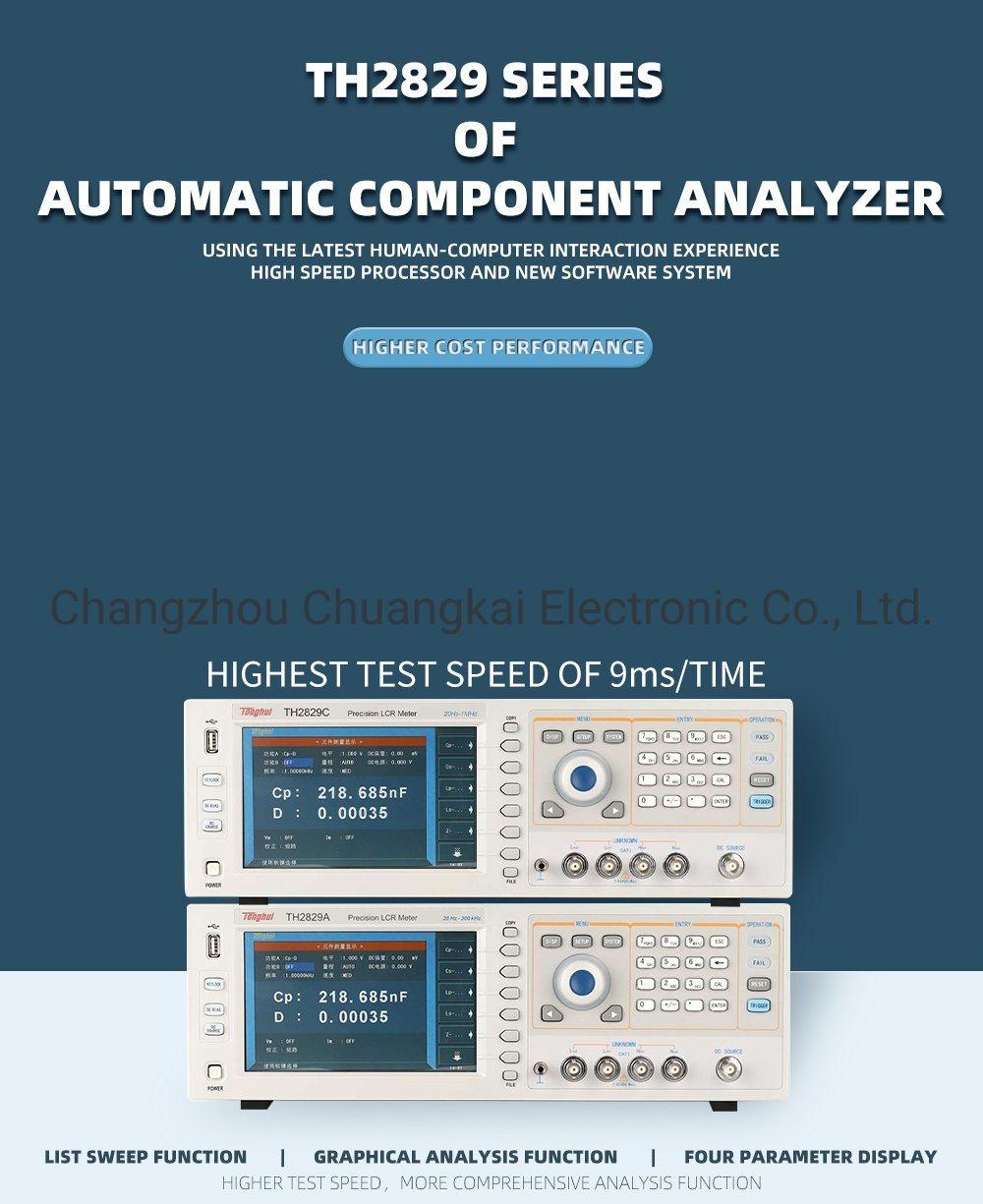

Th2829A Automatic Component Analyzer with Test Frequency 20Hz~300kHz

Changzhou Chuangkai Electronic Co., Ltd.
  • After-sales Service：Lifelong
  • Function：Measurement of Lcr
  • Display：800xrgbx480 7-Inch TFT LCD Display
  • Usage：Electric Component Tester, Gas Sensor Tester, Catalytic Element Tester, Lightning Protection Device Tester, Lcr Meter
  • Type：Lcr Meter
  • Environment：Room Temperature

Base Info

  • Model NO.：TH2829A
  • Warranty：With Warranty
  • Power Source：DC 100V-300V
  • Weight：〉10Kg
  • Installation：Direct Connected
  • Customized：Customized
  • Ranging Mode：Auto, Hold
  • Product Name：Th2829A Automatic Component Analyzer
  • Frequency：20Hz-300kHz

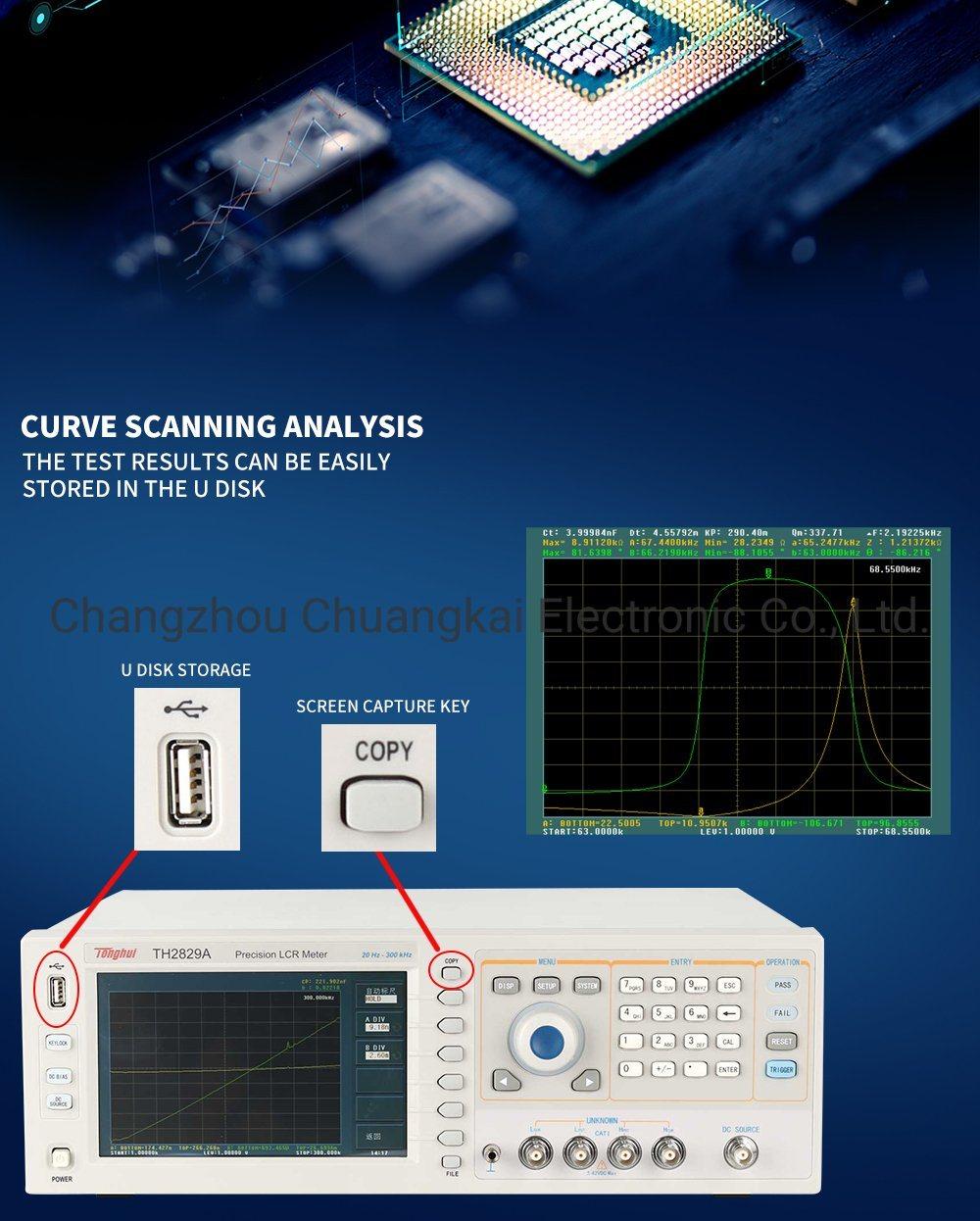

  • Memory Interface：USB Host (Front Panel)
  • Equivalent Circuit：Serial, Parallel
  • Trigger Mode：Internal, Manual, External, Bus
  • Power Supply：Voltage: 99V AC-121VAC,198V-242VAC
  • Calibration Function：Open,Short Calibration with Full Frequency or DOT
  • Average Times：1-256
  • Transport Package：Carton
  • Specification：55x54x33cm
  • Trademark：CKT
  • Origin：China
  • HS Code：9030339000
  • Production Capacity：2000 Sets Per Month

Description

Overview Product Description

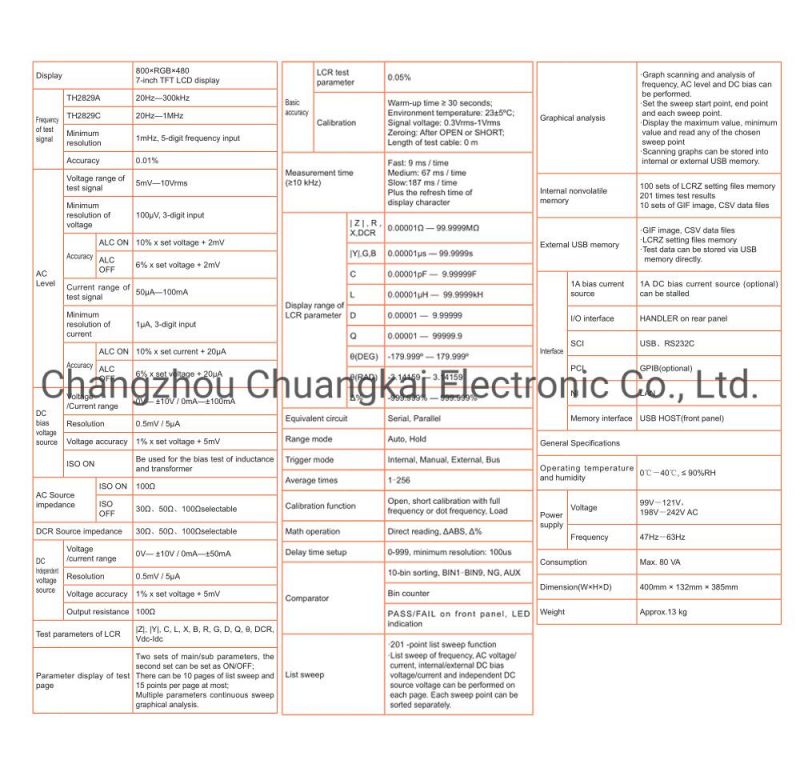

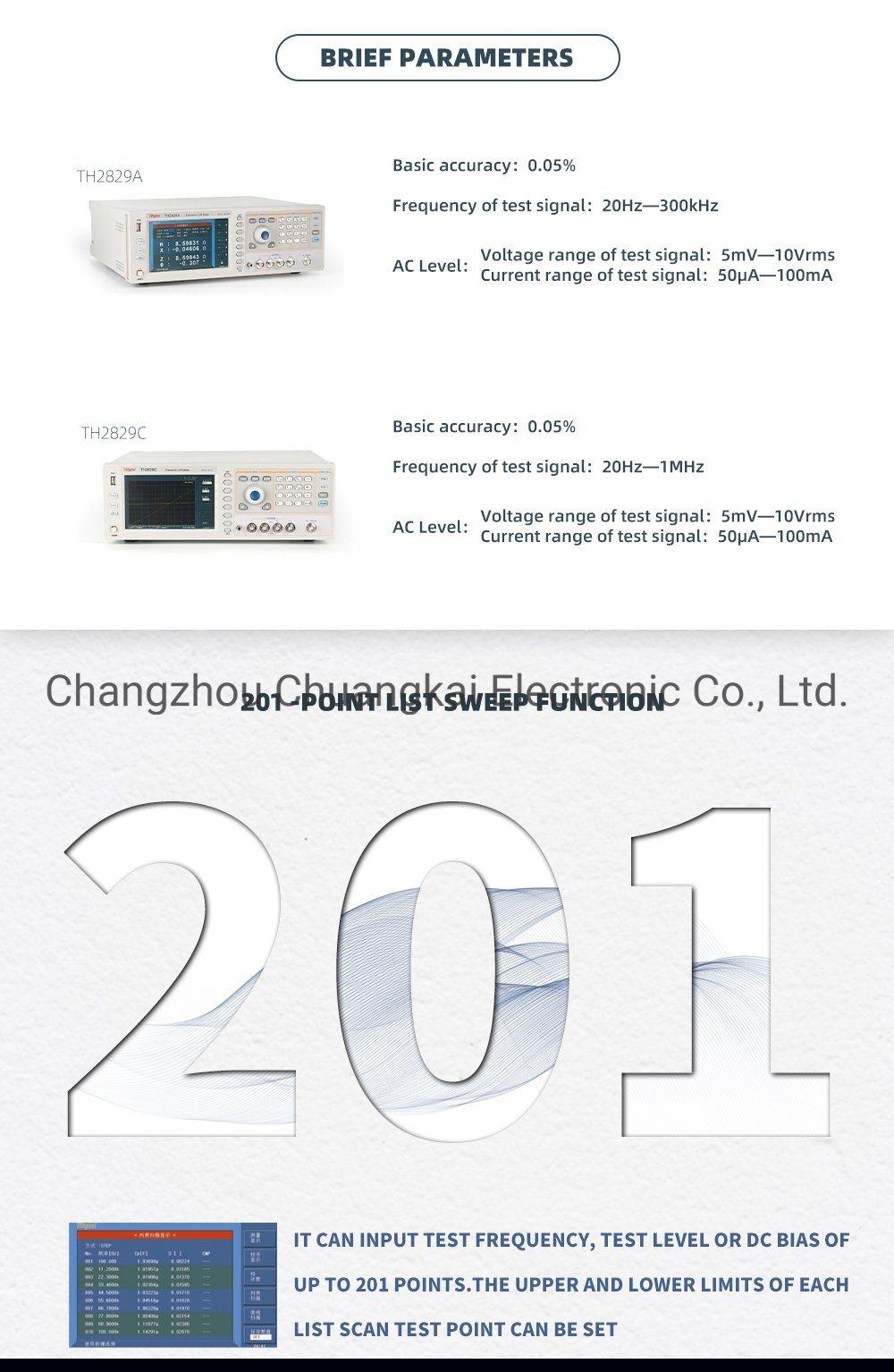

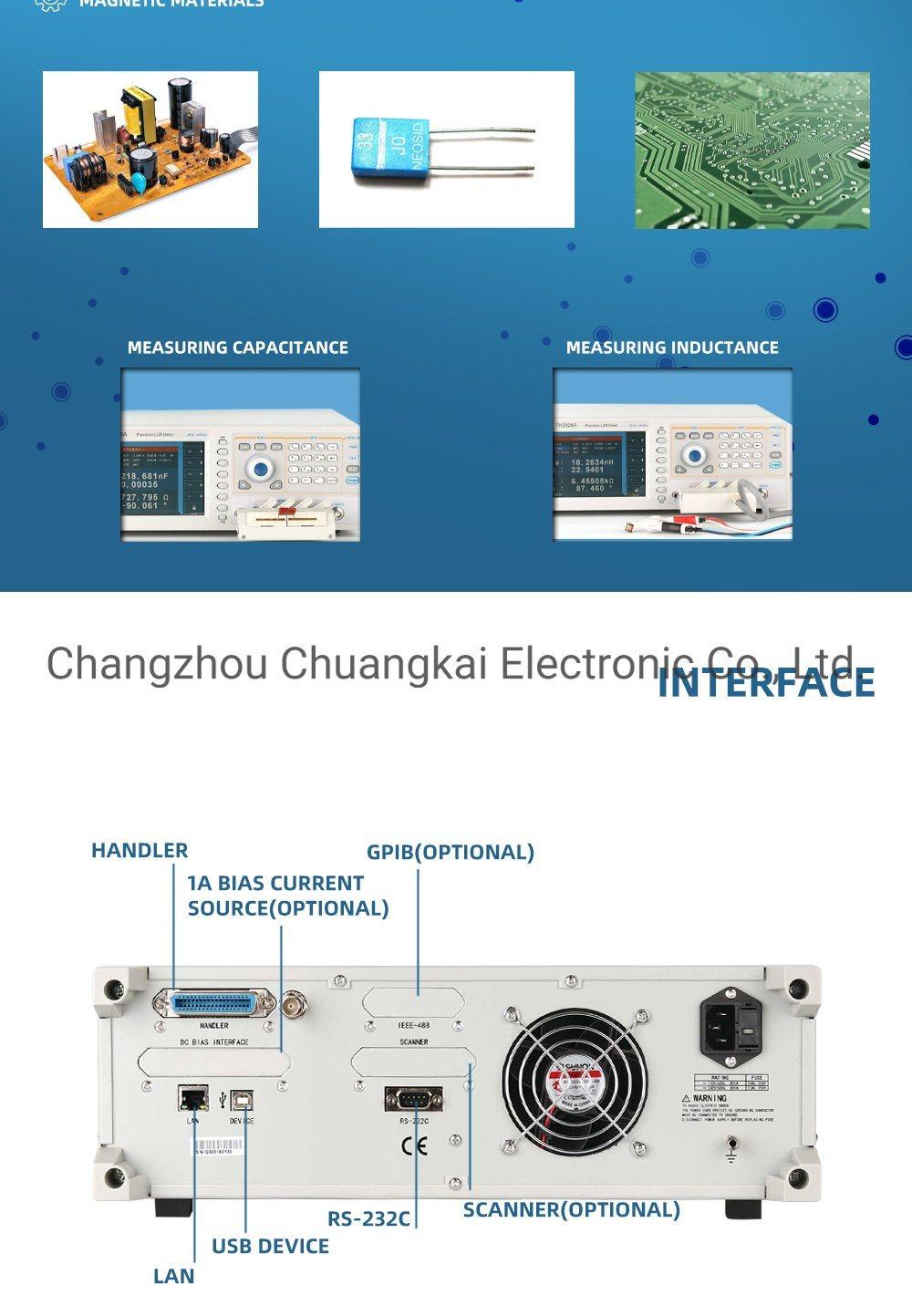

ModelTH2829AFrequency of test signal 20Hz-1MHzMinimum resolution1mHz, 5-digit frequency inputAccuracy0.01%Display800×RGB×480  7-inch TFT LCD displayACLevelVoltage range of test signal5mV-10VrmsMinimumresolution of voltage100μV, 3-digit inputAccuracyALC ON10% x set voltage + 2mVALCOFF6% x set voltage + 2mVCurrent range of test signal50μA-100mAMinimumresolution of current1μA, 3-digit inputAccuracyALC ON10% x set current + 20μAALCOFF6% x set voltage + 20μADCbias voltage sourceVoltage/Current range0V- ±10V / 0mA-±100mAResolution0.5mV / 5μAVoltage accuracy1% x set voltage + 5mVISO ONBe used for the bias test of inductance and transformerAC Source impedanceISO ON100ΩISOOFF30Ω,50Ω,100ΩselectableDCR Source impedance30Ω,50Ω,100ΩselectableDCIndependent voltage sourceVoltage/current range0V- ±10V / 0mA-±50mAResolution0.5mV / 5μAVoltage accuracy1% x set voltage + 5mVOutput resistance100ΩTest parameters of LCR|Z|,Y|, C, L, X, B, R, G, D, Q, θ, DCR,Vdc-IdcParameter display of test pageTwo sets of main/sub parameters, the second set can be set as ON/OFF;There can be 10 pages of list sweep and 15 points per page at most;Multiple parameters continuous sweep graphical analysis.Basic accuracyLCR test parameter0.05%CalibrationWarm-up time ≥ 30 seconds;Environment temperature: 23±5ºC;  Signal voltage: 0.3Vrms-1VrmsZeroing: After OPEN or SHORT;    Length of test cable: 0 mMeasurement time(≥10 kHz)Fast: 9 ms / timeMedium: 67 ms / timeSlow:187 ms / time Plus the refresh time of display characterDisplay range ofLCR parameterZ, R ,X,DCR0.00001Ω - 99.9999MΩ|Y|,G,B0.00001μs - 99.9999sC0.00001pF -  9.99999FL0.00001μH -  99.9999kHD0.00001 -  9.99999Q0.00001 -  99999.9θ(DEG)-179.999º - 179.999ºθ(RAD)-3.14159 - 3.14159Δ%-999.999% - 999.999%Equivalent circuitSerial, ParallelRange modeAuto, HoldTrigger modeInternal, Manual, External, BusAverage times1-256Calibration functionOpen, short calibration with full frequency or dot frequency, LoadMath operationDirect reading, ΔABS, Δ%Delay time setup0-999, minimum resolution: 100usComparator10-bin sorting, BIN1-BIN9, NG, AUXBin counterPASS/FAIL on front panel, LED indicationList sweep·201 -point list sweep function ·List sweep of frequency, AC voltage/  current, internal/external DC bias  voltage/current and independent DC  source voltage can be performed on  each page. Each sweep point can be  sorted separately.Graphical analysis·Graph scanning and analysis of  frequency, AC level and DC bias can  be performed.·Set the sweep start point, end point  and each sweep point.·Display the maximum value, minimum  value and read any of the chosen   sweep point·Scanning graphs can be stored into  internal or external USB memory.Internal nonvolatilememory100 sets of LCRZ setting files memory201 times test results10 sets of GIF image, CSV data filesExternal USB memory·GIF image, CSV data files·LCRZ setting files memory ·Test data can be stored via USB   memory directly.Interface1A bias current source1A DC bias current source (optional) can be stalledI/O interfaceHANDLER on rear panelSCIUSB,RS232CPCIGPIB(optional)NILANMemory interfaceUSB HOST(front panel)General SpecificationsOperating temperature and humidity0ºC-40ºC, ≤ 90%RHPower supplyVoltage99V-121V, 198V-242V ACFrequency47Hz-63HzConsumptionMax. 80 VADimension(W×H×D)400mm × 132mm × 385mmWeightApprox.13 kg Detailed Photos

Th2829A Automatic Component Analyzer with Test Frequency 20Hz~300kHz
Th2829A Automatic Component Analyzer with Test Frequency 20Hz~300kHz
Th2829A Automatic Component Analyzer with Test Frequency 20Hz~300kHz
Th2829A Automatic Component Analyzer with Test Frequency 20Hz~300kHz
Th2829A Automatic Component Analyzer with Test Frequency 20Hz~300kHz
Th2829A Automatic Component Analyzer with Test Frequency 20Hz~300kHz
Th2829A Automatic Component Analyzer with Test Frequency 20Hz~300kHz
Th2829A Automatic Component Analyzer with Test Frequency 20Hz~300kHz


Th2829A Automatic Component Analyzer with Test Frequency 20Hz~300kHz


Th2829A Automatic Component Analyzer with Test Frequency 20Hz~300kHz

Th2829A Automatic Component Analyzer with Test Frequency 20Hz~300kHzPackaging & Shipping

Company Profile



Chuangkai Electronic Co., Ltd is leading company specialized in producing, developing & selling various types of measuring instruments and testing equipment, such as temperature data logger, LCR meter, DC resistance tester (micro ohm meter), digital power meter, power supply, transformer tester, battery tester, programmable DC electronic load, charger, temperature controller, tachometer, high voltage signal-amplifier, power amplifier, etc.

FAQ:
Q. How is your company's product after-sales service system?
A. The product warranty period is 12 months, we can provide lifetime maintenance. We have professional pre-sales and after-sales teams that can respond to you within 24 hours to resolve technical issues. We provide one-to-one after-sales service.

Q: Can you customize it?
A: Yes, we accept customization according to customer's specific requirements.

Q. How long is your lead time? If I want to customize instruments, how long will it take?
A. When order quantity is 1-10 units, we have ready stock goods, we can ship out within 3-5 working days after receipt of deposit; products required new production of common materials, usually the lead time is about 10-15 days; products requiring new production of special and rare materials, usually the lead time is about 20-30 days.

Q. What payment method do you accept?
A. Our company accept payment method of T/T (bank transfer), Western Union, PayPal and so on.

Q. What package do you use for your products? What shipping method do you use?
A.1. Our company use standard exporting carton for packing. 2. We ship via express courier (door to door service), by air, and by sea according to customers' requirements.

For more questions, please feel free to send inquiries to us.
