Th2826 5MHz Lcr Meter Capacitance Meter ESR Meter
Changzhou Chuangkai Electronic Co., Ltd.- Function:Measurement of Lcr
- Display:320X240 DOT-Matrix LCD Display
Base Info
- Model NO.:TH2826
- Usage:Electric Component Tester, Gas Sensor Tester, Catalytic Element Tester, Lightning Protection Device Tester, Lcr Meter
- Type:Lcr Meter
- Environment:Room Temperature
- Warranty:With Warranty
- Power Source:DC 100V-300V
- Weight:0-10Kg
- Installation:Direct Connected
- Customized:Customized
- Trigger Mode:Internal, Manual, External, Bus
- Ranging Mode:Auto and Hold
- Equivalent Mode:Serial, Parallel
- Calibration Function:Open,Shot ,Load
- Power Supply:Voltage: 99V AC-121VAC,198V-242VAC
- Frequency:20Hz-5MHz with Resolution of 10MHz
- Comparator Function:10 Bins and Bin Counters
- Basic Accuracy:0.1%

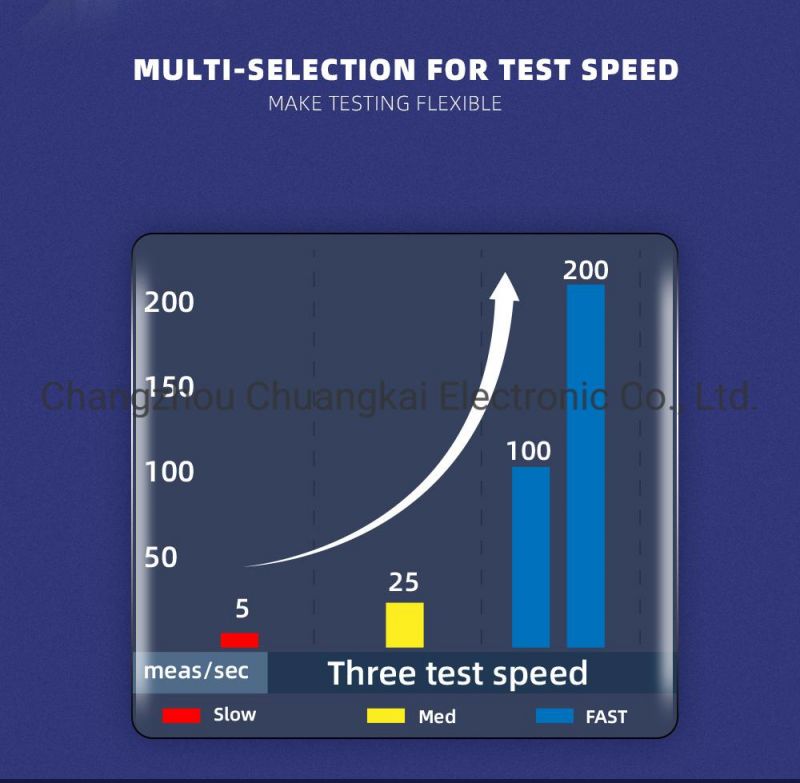

- Measurement Speed:Fast: 200(F>30kHz),100(F>1kHz)Med: 25, Slow: 5
- Product Name:Th2826 5MHz Lcr Meter Capacitance Meter ESR Meter
- Transport Package:Carton
- Specification:55x54x33cm
- Trademark:CKT
- Origin:China
- HS Code:9030339000
- Production Capacity:2000 Sets Per Month
- Package size per unit product:55.00cm * 54.00cm * 33.00cm
- Gross weight per unit product:10.000kg
- Lead Time:10 days (1 - 1 set)
To be negotiated ( > 1 set)
Description

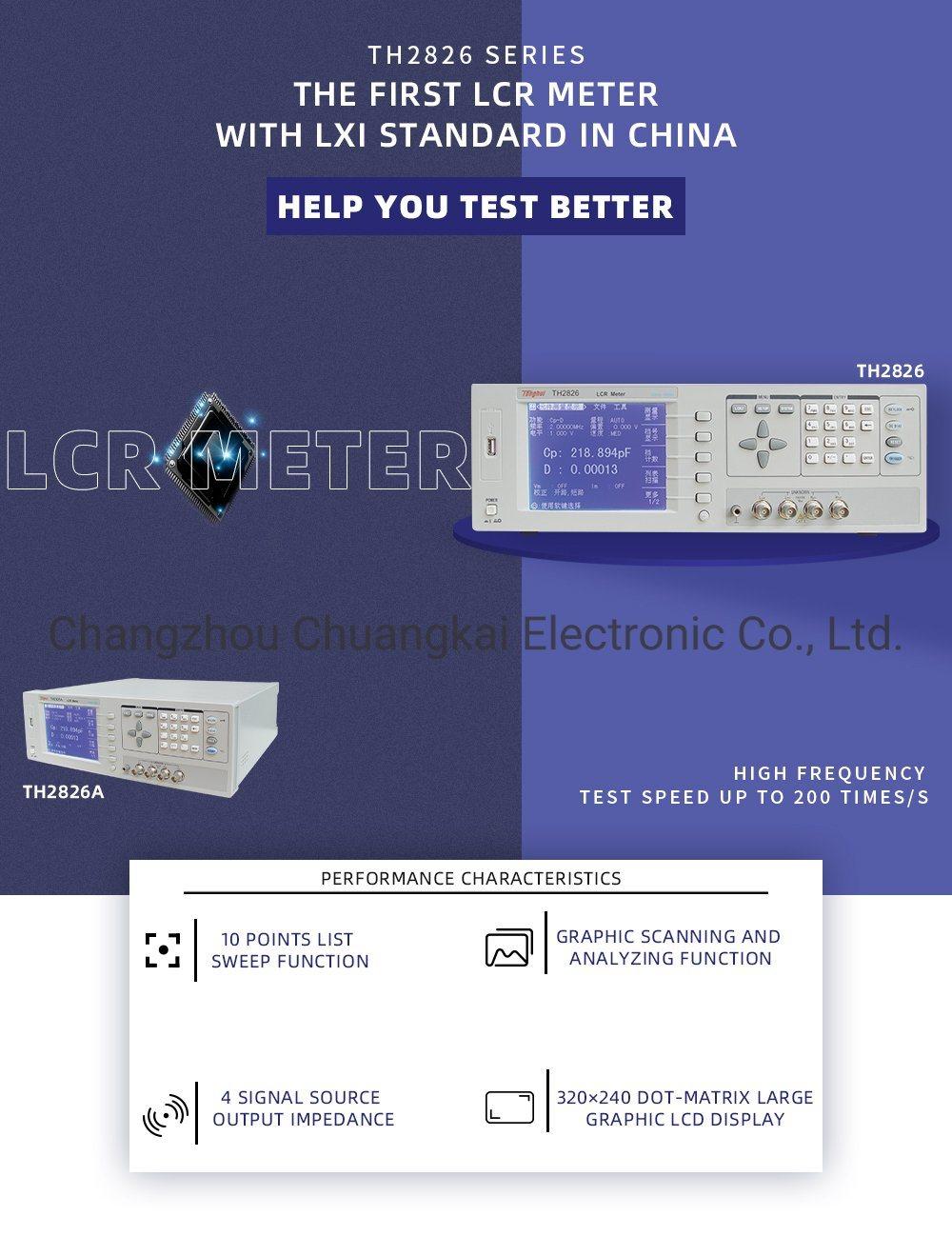

Overview

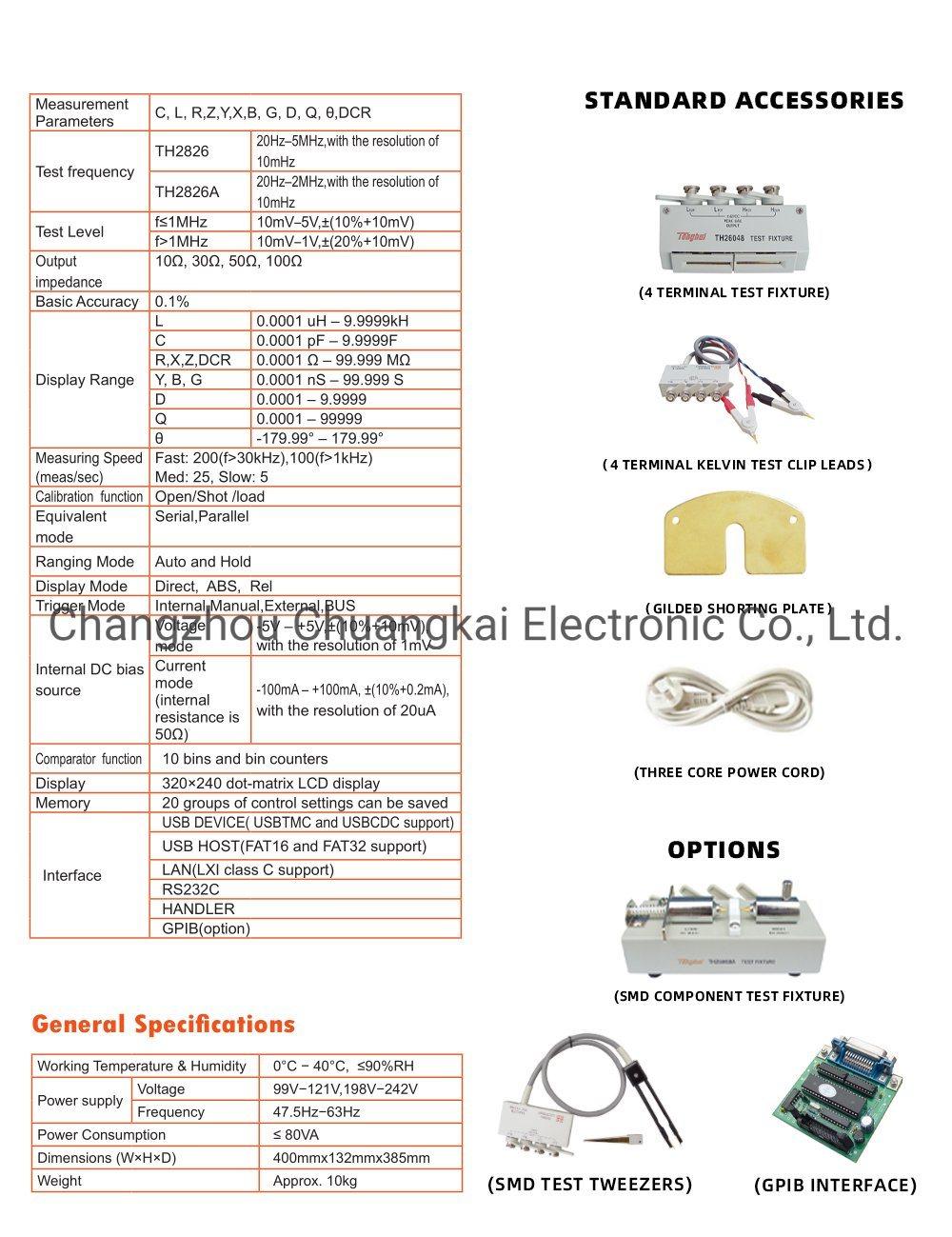

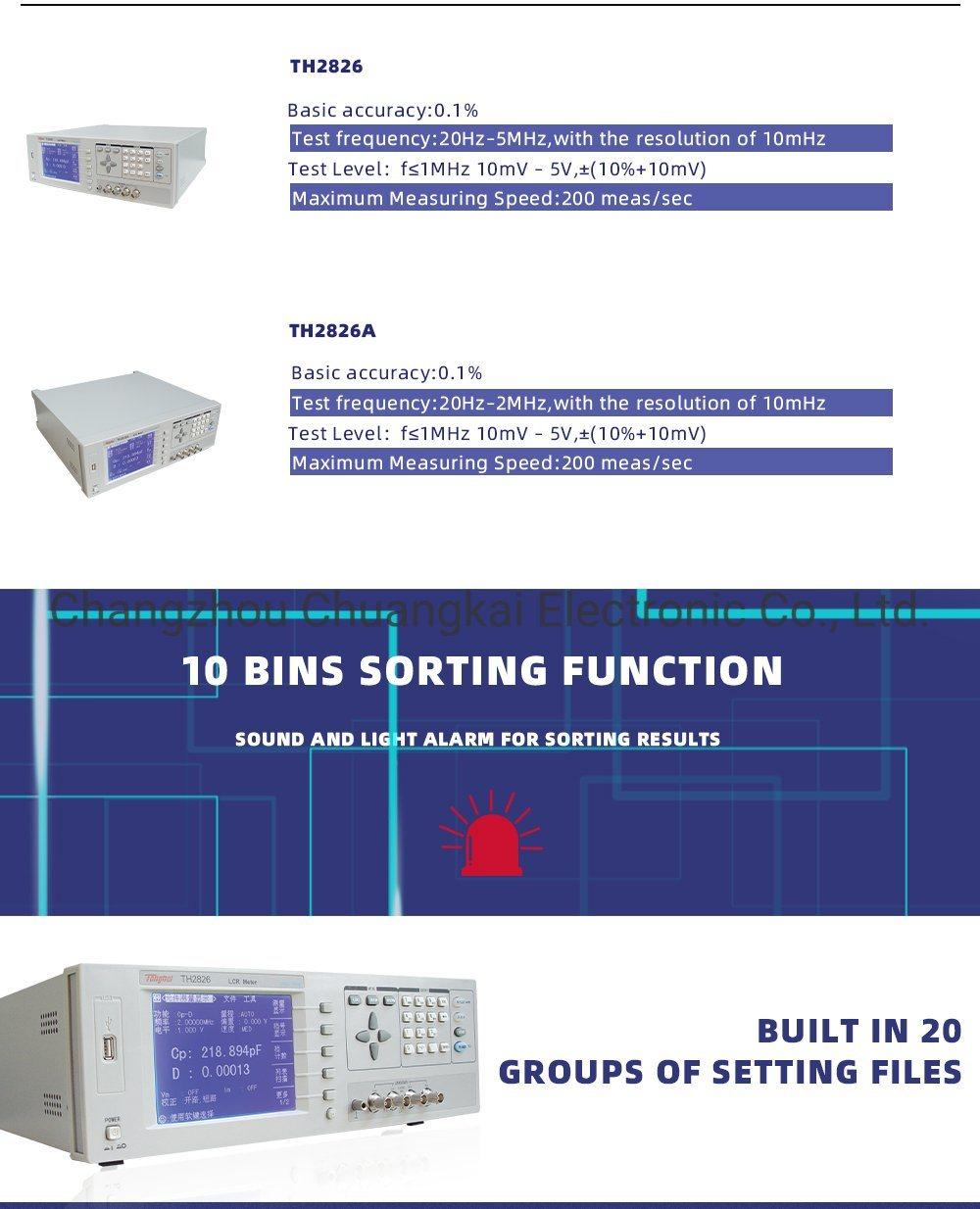

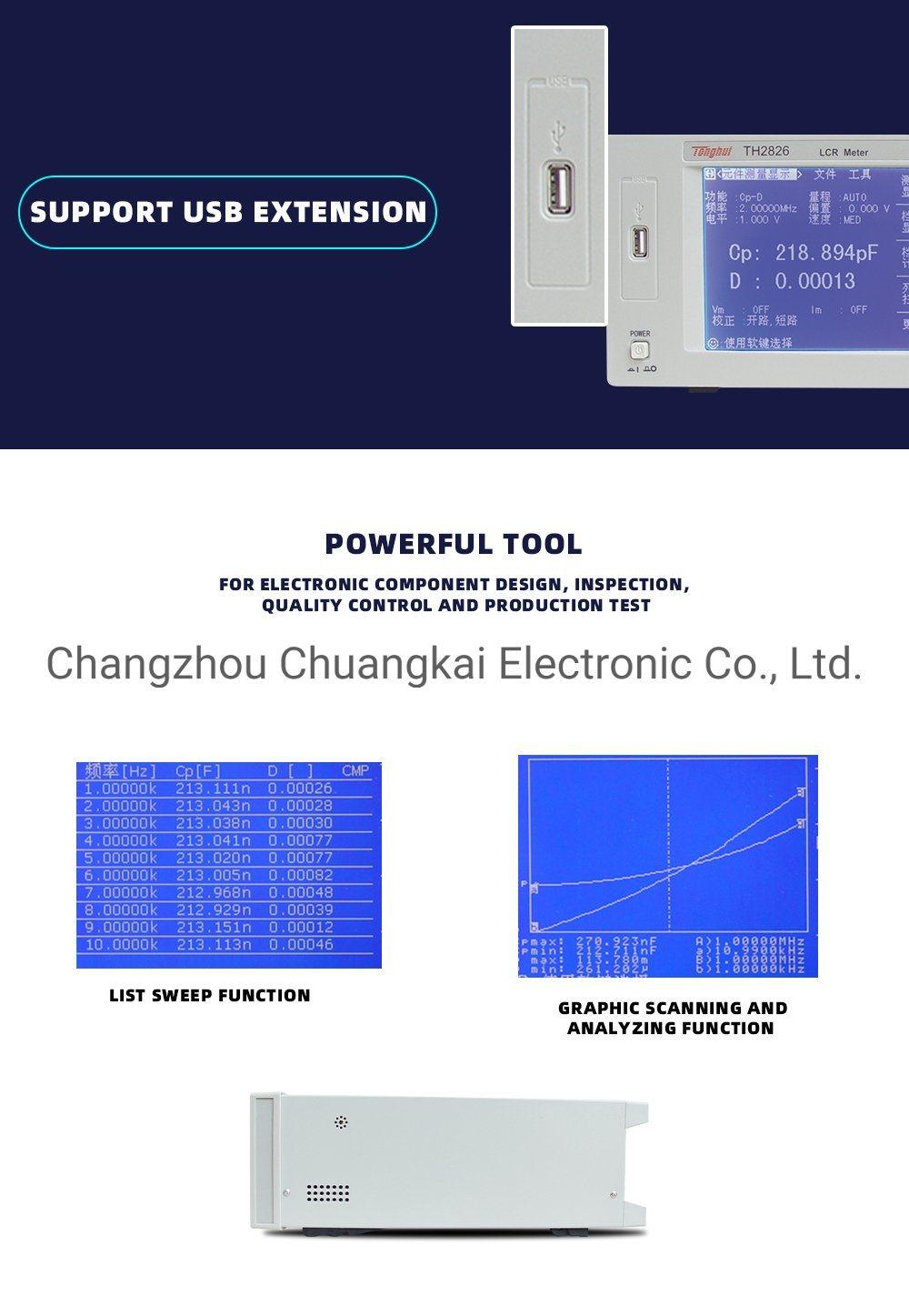

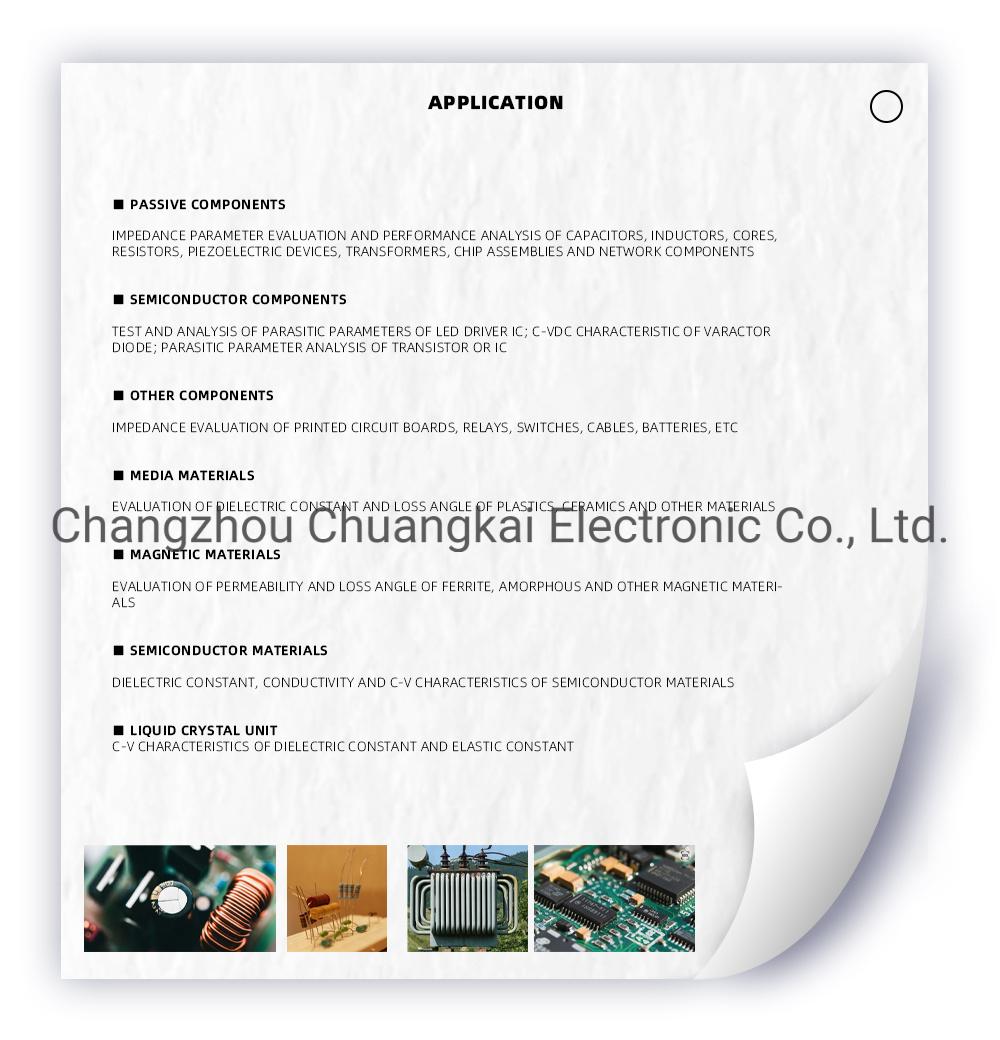

Product DescriptionTH2826 Test frequency 20Hz-5MHz with resolution of 10mHz Measurement Parameters C, L, R,Z,Y,X,B, G, D, Q, θ, DCR Test Level f≤1MHz 10mV-5V,±(10%+10mV) f>1MHz 10mV-1V,±(20%+10mV) Output impedance 10Ω, 30Ω, 50Ω, 100Ω Basic Accuracy 0.1% Display Range L 0.0001 uH - 9.9999kH C 0.0001 pF - 9.9999F R,X,Z,DCR 0.0001 Ω - 99.999 MΩ Y, B, G 0.0001 nS - 99.999 S D 0.0001 - 9.9999 Q 0.0001 - 99999 θ -179.99° - 179.99° Measuring Speed(meas/sec) Fast: 200(f>30kHz),100(f>1kHz)Med: 25, Slow: 5 Calibration function Open/Shot /load Equivalent Mode Serial, Parallel Ranging Mode Auto and Hold Display Mode Direct, ABS, Rel Trigger Mode Internal, Manual, External, BUS Internal DC bias source Voltagemode -5V - +5V,±(10%+10mV), with the resolution of 1mV Currentmode(internal resistance is50Ω) -100mA - +100mA, ±(10%+0.2mA), with the resolution of 20uA Comparator function bins and bin counters Display 320×240 dot-matrix LCD display Memory groups of control settings can be saved Interface USB DEVICE( USBTMC and USBCDC support)
USB HOST(FAT16 and FAT32 support)
LAN(LXI class C support)
RS232C
HANDLER

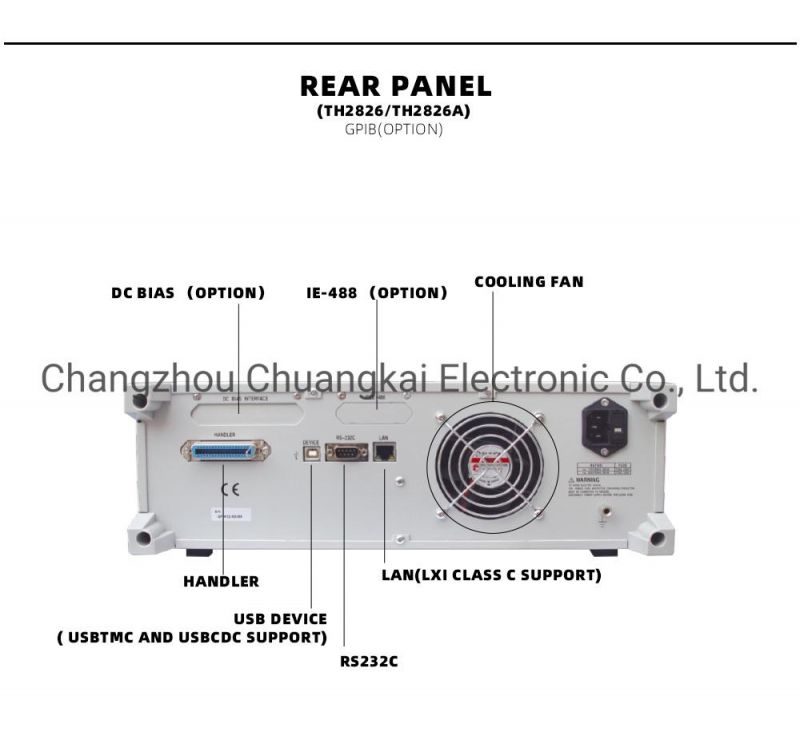

GPIB(option) Working Temperature & Humidity 0°C − 40°C, ≤90%RH Power supply Voltage 99V−121V,198V−242V Frequency 47.5Hz−63Hz Power Consumption ≤ 80VA Dimensions (W×H×D) 400mmx132mmx385mm Weight Approx. 10kg Detailed Photos
