Electronic Cargo Inclined Impact Strength Testing Equipment

Dongguan Haida Equipment Co., Ltd.
  • Warranty：1 Year
  • Type：Impact Testing Machine
  • Maxcapacity：>1000KN
  • Accuracy Grade：0.5
  • Load Way：Electronic Load
  • Loading Method：Dynamic Load

Base Info

  • Model NO.：HD-A523
  • Display：Digital
  • Control：Computer Control
  • Weight：500-1000Kg
  • Power Source：AC220V
  • Product Name：Inclined Impact Test
  • Load (Kg)：100, 200, 300, 500, 600
  • Design Criteria：Ista
  • Delivery Time：20 Days After Receive The Deposit
  • Impact Board Dimension (mm)：1600* 2000,
  • Maximum Slide Length (mm)：1600 (Can Be Designed Accord to Customer′s Require
  • Impact Velocity Range (M/S)：1.305~2.608, 1.305~2.334
  • Pulley Platform Dimension (mm)：1000*1000
  • Supply Voltage：Three Phase 380V, 50,60Hz
  • Work Environment：Temperature 0~40° C, Humidity ≤ 80%
  • Transport Package：Strong Wooden Case
  • Specification：ISTA-1E
  • Trademark：Haida
  • Origin：China
  • HS Code：9024109000
  • Production Capacity：150 Sets Per Month

Description

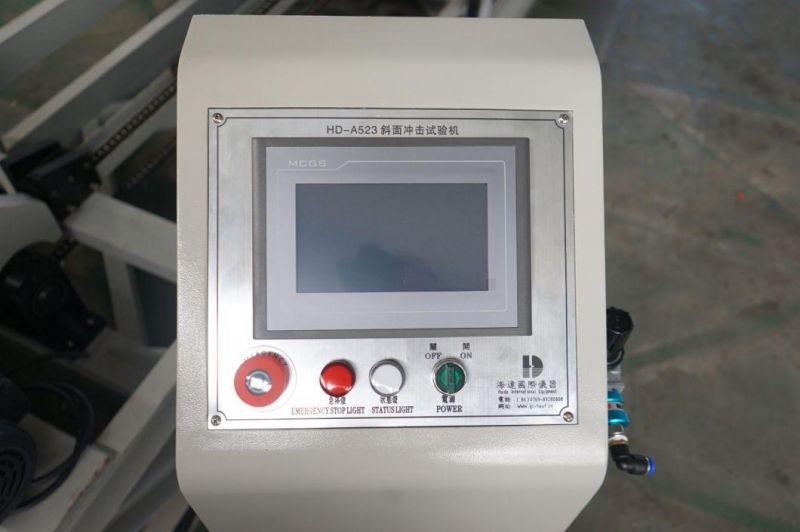

ItemDescriptionLoad capacity600kg (can be customized)Impact surface dimension1600*2200mm (can be customized)Rolling carriage table dimension1220*1220mm (can be customized)Control systemTouch screen controllerMax. slide length2200mm (can be customized)Plane inclined to the vertical angle0°, 15°(can be customized)Velocity range1.1~2.3m/sImpact surface materialRubber wood with two-rail steel trackWorking conditionTemperature 0~40°, humidity ≤80%  (no condensation)Floor area7220*1800mmSafety featuresE-Stop
Over-load protection
Upper and lower limit switches
Load sensor with automatic retreat
DESIGN STANDARDS
ISTA 3E, 3J & ISTA 6 (inclined impact test)

FEATURES:
1. Flexible positioning and electric trolley. It is easy to fix and achieve the changeable value of speed.
2. The height of trolley is relatively low so that is easy to fix the specimen; the strong impact resistance board can guarantee the fastness of the structure.
3. The trolley can be adjusted to be horizontal in order to fix the specimen for customer. The angle adjustment is driven by air cylinder which is flexible and convenient.
4. In order to keep the test staff completely safe, the tester is with remote control function.
5. Before testing, the customer only needs to fix the tester on the ground when stalling it, no other complicated operation.

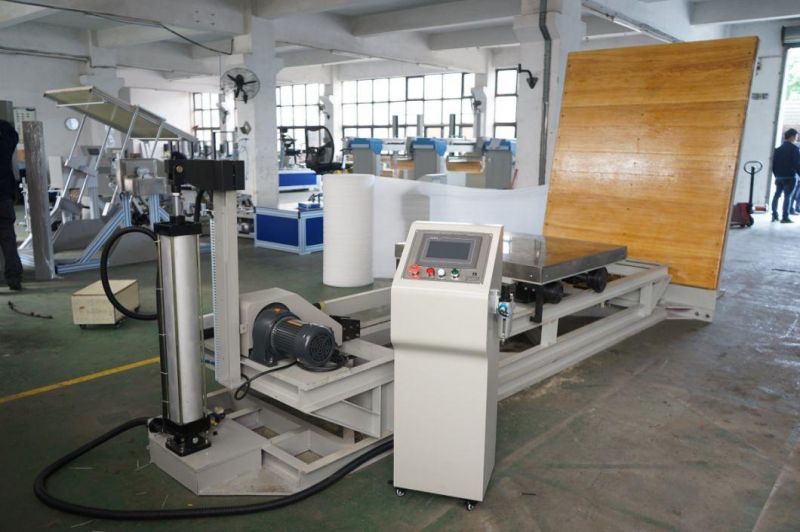

Electronic Cargo Inclined Impact Strength Testing Equipment

Electronic Cargo Inclined Impact Strength Testing Equipment

Our company Introduction:
HAIDA INTERNATIONAL is a professional manufacturer of various kinds of testing equipments over 24 years. HAIDA products are widely used in paper products, packaging, ink printing, adhesive tapes, bags, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products and other industries, and applicable to all scientific research units, quality inspection institutions and academic fields.
